CA-3116P Digital Amplifier Module DC12-24V 50Wx2+100W AMP TPA3116D2

CA-3116P DC12-24V 50Wx2+100W 2.1 TPA3116D2 Sound Channel Digital Amplifier Audio Module

Product Description:

• Adopts two high quality TPA3116D2 digital amplifier chips.
• Sound quality is very good, high efficiency and amplifying power.
• 50W*2+100W 2.1 channels(left/right channel and subwoofer channel), high efficiency and low-heat.
• Powered by DC 12-24V, wide input voltage.
• User can adjust the volume by themselves easily.
• Applicable speaker impedance: 4-8 ohm.
• Just connect the power supply and loudspeaker box, enjoy the pure digital music!
• Supply Voltage: DC 12-24V
• Chip: TPA3116*2
• Channel Type: 3 Channels(Left Channel, Right Channel, Subwoofer)
• Output Power: 50W*2 + 100W
• Output Match: 4-8 ohm
• Audio Output: Terminals
• Frequency Response Range: 14-100KHz
• SNR: 100dB
• Switching Frequency: 1.2MHz

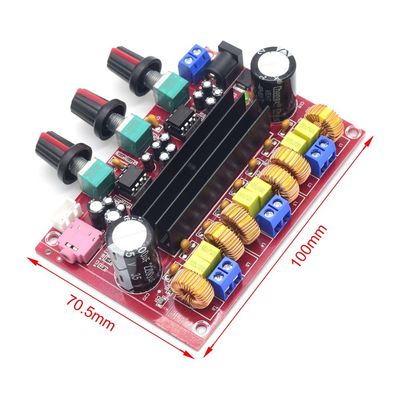

• PCB Board Size: 100 * 70 * 30mm / 3.94 * 2.75 * 1.18in (L * W * H)
• Weight: 113g / 3.98oz
• Package Size: 13.5 * 11 * 5cm / 5.31 * 4.33 * 1.97in (L * W * H)
• Package Weight: 178g / 6.3oz

Notice:
This amplifier board must be powered by DC power(DC12-24V), it's better to use high-performance switch power. Don't use transformer!
