TPA3116 Amplifier Module 50W Dual Channel Digital Power Amplifier Board with DC 8V~24V and No POP Noise

TPA3116 Amplifier Module 50W Dual Channel Digital Power Amplifier Board with DC 8V~24V and No POP Noise
TPA3116 Amplifier Module 50W Dual Channel Digital Power Amplifier Board with DC 8V~24V and No POP Noise TPA3116 Amplifier Module 50W Dual Channel Digital Power Amplifier Board with DC 8V~24V and No POP Noise TPA3116 Amplifier Module 50W Dual Channel Digital Power Amplifier Board with DC 8V~24V and No POP Noise

Large Image :  TPA3116 Amplifier Module 50W Dual Channel Digital Power Amplifier Board with DC 8V~24V and No POP Noise

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall
Model Number: CA-3116
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: static bag
Delivery Time: 5-8 work days
Supply Ability: 10000 Piece/Pieces per Day
Contact Now

TPA3116 Amplifier Module 50W Dual Channel Digital Power Amplifier Board with DC 8V~24V and No POP Noise

Description
Application: Amplifier Audio Module Mounting Type: Direct Mounting
Description: Amplifier Audio Module Model: TPA3116 Amplifier Module
Type: 50W*2 Dual Channel Stereo Digital Power Amplifier Voltage: DC 8V~24V
Size: 25*20*2mm Port: Shenzhen Port,guangzhou Port
Highlight:

CA-3116 Amplifier Audio Module

,

Amplifier Audio Module 50W

,

Digital Power Amplifier Board 50W

CA-3116 Amplifier Audio Module Digital Power Amplifier Board 50W
Product Overview

The CA-3116 is a 50W×2 dual channel stereo digital power amplifier board featuring a built-in amplifier module that can be connected directly to speakers. This compact module delivers high-quality audio performance with efficient power consumption.

Key Features
  • Ultra small volume design
  • No POP noise during operation
  • Low power consumption
  • High gain performance
  • Output short circuit protection
Technical Specifications
Product Name 50W×2 Dual Channel Stereo Digital Power Amplifier
Model CA-3116
Work Voltage DC 8V~24V
Quiescent Current 28mA
Chip Type TDA3116D2
Work Frequency 20Hz~20KHz
Work Type Class D (PWM modulation)
Input Resistance 1Kohm
Output Resistance 4~8ohm
Gain 36dB
Noise Ratio 102dB
Harmonic Distortion <1%
Operating Temperature -20℃~85℃
Operating Humidity 5%~95%RH

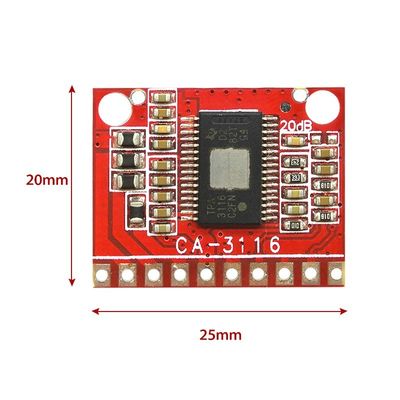

Module Size 25×20×2mm
