2.0 Channels 200W Mono Tube Amp Board 1943 5200 Audio Power Amplifier Board Private Mold

2.0 Channels 200W Mono Tube Amp Board 1943 5200 Audio Power Amplifier Board Private Mold
2.0 Channels 200W Mono Tube Amp Board 1943 5200 Audio Power Amplifier Board Private Mold 2.0 Channels 200W Mono Tube Amp Board 1943 5200 Audio Power Amplifier Board Private Mold 2.0 Channels 200W Mono Tube Amp Board 1943 5200 Audio Power Amplifier Board Private Mold 2.0 Channels 200W Mono Tube Amp Board 1943 5200 Audio Power Amplifier Board Private Mold 2.0 Channels 200W Mono Tube Amp Board 1943 5200 Audio Power Amplifier Board Private Mold 2.0 Channels 200W Mono Tube Amp Board 1943 5200 Audio Power Amplifier Board Private Mold

Large Image :  2.0 Channels 200W Mono Tube Amp Board 1943 5200 Audio Power Amplifier Board Private Mold

Product Details:
Place of Origin: China
Brand Name: creatall
Model Number: CA-1002
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $15.00/pieces 10-99 pieces
Contact Now

2.0 Channels 200W Mono Tube Amp Board 1943 5200 Audio Power Amplifier Board Private Mold

Description
Private Mold: NO Type: Professional Amplifier
Channels: 2 (2.0)
Highlight:

1943 5200 Audio Power Amplifier Board

,

200W Mono Tube Amp Board

,

Private Mold Mono Tube Amp Board

Contact Us
2.0 Channels 200W Mono Tube Amp Board 1943 5200 Audio Power Amplifier Board Private Mold 0
Products Description

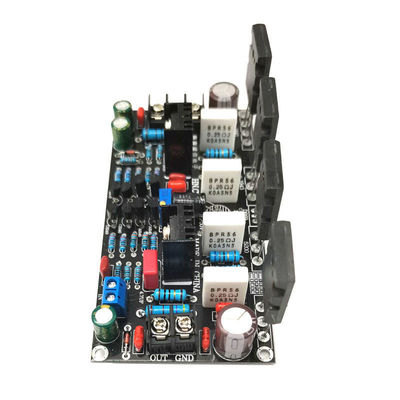

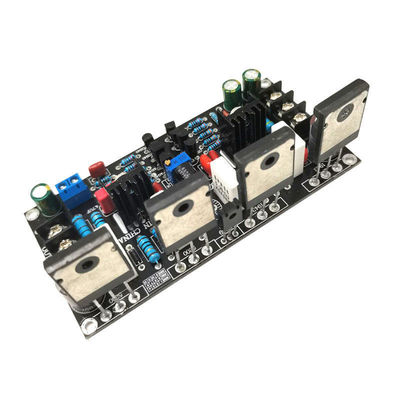

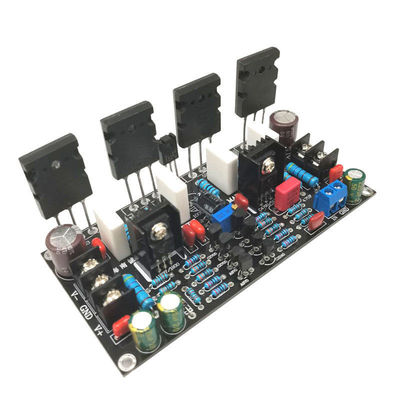

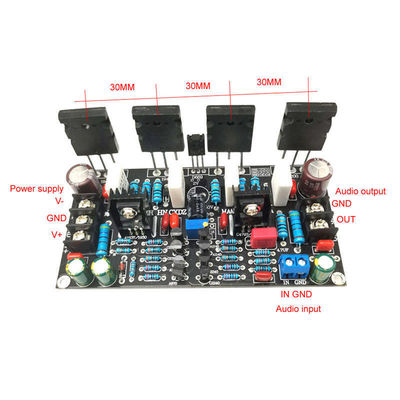

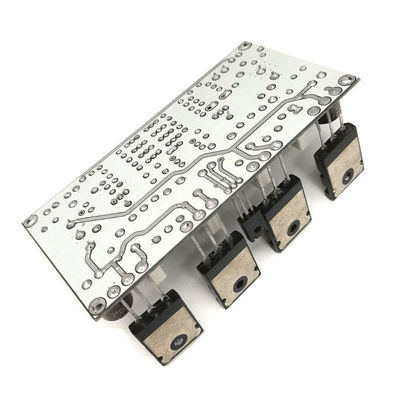

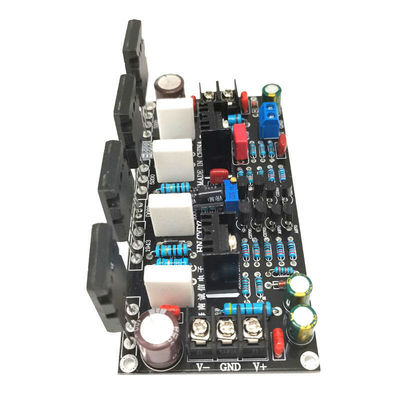

200W Mono Power Amplifier 1943 + 5200 High Power Tube Amp Board

1. The board is a single-channel power amplifier board, which requires dual-channel
2. The circuit design uses A970/C2240 high-voltage audio pair tube dual differential circuit and A1145/C2705 for voltage amplification to promote the use of mid-power pair tube A1837/C4793, and the output stage uses A1943/C5200 high-power Toshiba pair tube.
3.Wide power supply range, DC plus or minus 20V-90V can be, as long as enough power is supplied to easily reach 200, the sound
quality is good, the driving force is strong, and the 15-inch speaker is pushed without pressure!
4. Power supply: dual voltage, DC plus or minus 20-90V (the upgraded version has optimized the circuit and parts, but To directly apply high voltage, it is recommended to use below 90V, do not challenge the voltage limit. )
5. Real power: undistorted power 200W, maximum power 300W.

size:120 x 60 x 45MM
Material:abs
colour:black

Package Included:
1pcs mono Power Amplifier Board
2.0 Channels 200W Mono Tube Amp Board 1943 5200 Audio Power Amplifier Board Private Mold 1
2.0 Channels 200W Mono Tube Amp Board 1943 5200 Audio Power Amplifier Board Private Mold 2
2.0 Channels 200W Mono Tube Amp Board 1943 5200 Audio Power Amplifier Board Private Mold 3
2.0 Channels 200W Mono Tube Amp Board 1943 5200 Audio Power Amplifier Board Private Mold 4
2.0 Channels 200W Mono Tube Amp Board 1943 5200 Audio Power Amplifier Board Private Mold 5
