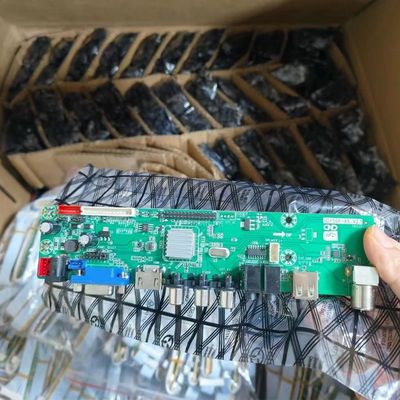

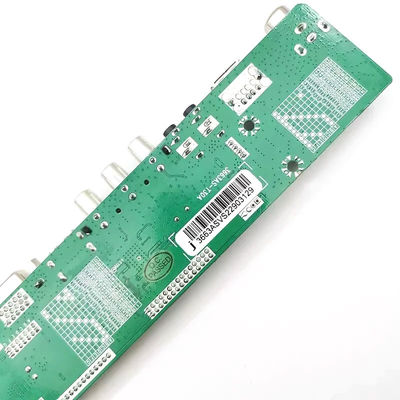

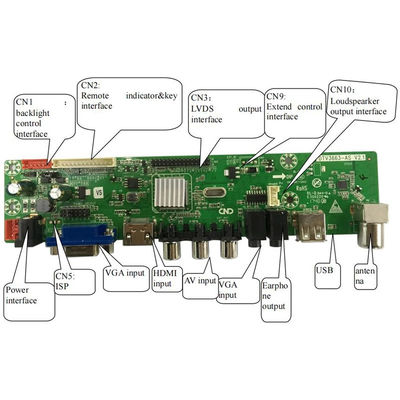

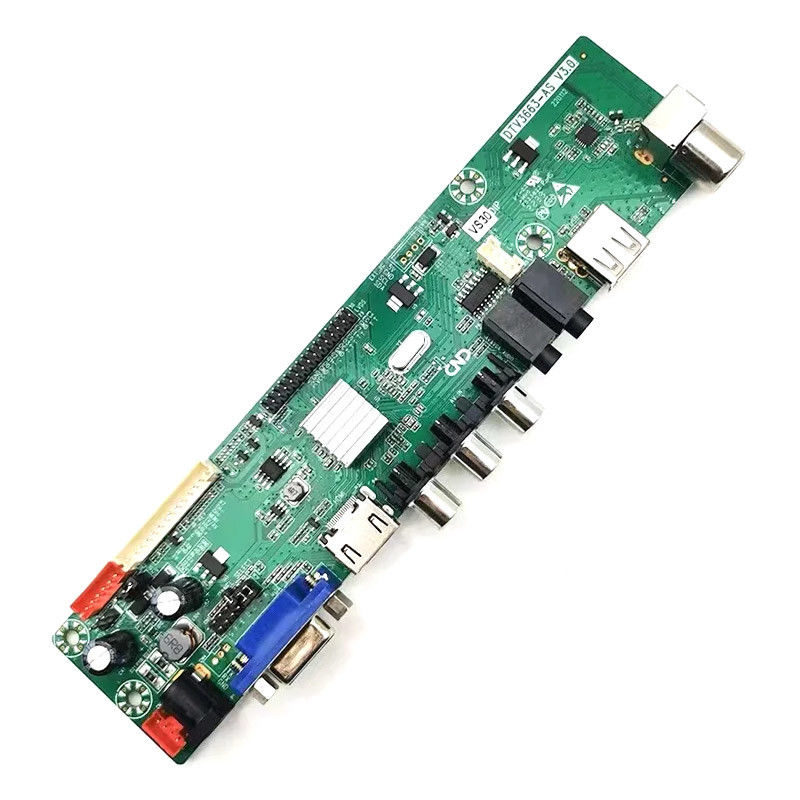

Digital Analog Integrated Universal LED TV Mainboard DTV3663 With T2/T/C

Digital Analog Integrated Universal LED TV Mainboard DTV3663 With T2/T/C
Digital Analog Integrated Universal LED TV Mainboard DTV3663 With T2/T/C
Digital Analog Integrated Universal LED TV Mainboard DTV3663 With T2/T/C Digital Analog Integrated Universal LED TV Mainboard DTV3663 With T2/T/C Digital Analog Integrated Universal LED TV Mainboard DTV3663 With T2/T/C Digital Analog Integrated Universal LED TV Mainboard DTV3663 With T2/T/C Digital Analog Integrated Universal LED TV Mainboard DTV3663 With T2/T/C

Large Image :  Digital Analog Integrated Universal LED TV Mainboard DTV3663 With T2/T/C

Product Details:
Place of Origin: China
Brand Name: creatall
Model Number: DTV3663
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Contact Now

Digital Analog Integrated Universal LED TV Mainboard DTV3663 With T2/T/C

Description
Model Number:: DTV3663-AS Backlight Type:: LED
Display Format: 1080p (Full-HD) Interface Type: USB
Highlight:

Integrated Universal LED TV Mainboard

,

Universal LED TV Mainboard With T2/T/C

Digital-analog integrated motherboard DTV3663 with T2/T/C Universal Led TV mainboard



This tv board is suitable for worldwide analog TV system PAL/SECAM,digital tv system support DVB-T2/DVB-T/DVB-C which is compatible with LCD panel mainstream manufacturers,It can reappear real world image color and sound.



  1. item:value
  2. Model Number:DTV3663-AS
  3. Backlight Type:LED
  4. Cabinet Color:Blue / Green
  5. Definition:HDTV
  6. Display Format:1080p (Full-HD)
  7. Interface Type:usb
  8. Place of Origin:China
  9. Private Mold:Yes
  10. Receiving System:NTSC
  11. Refresh Rate:Ntsc(60Hz)
  12. Resolution:FHD(1920*1080)
  13. Screen Size:All size
  14. Type:LCD
  15. Use:LCD TV Circuit Board
  16. Wide Screen Support:Yes
  17. Certification:ce
  18. Product name:LED TV Motherboard
  19. Support Resolution:1920x1080
  20. PCB size:188.5mm(L)*43mm(W)*18mm(H)
  21. Language:Mul-ti Language
  22. Color:Green
  23. Name:DTV3663-AS
  24. OSD Language:Multi Language
  25. TV System:PAL /NTSC /SECAM
