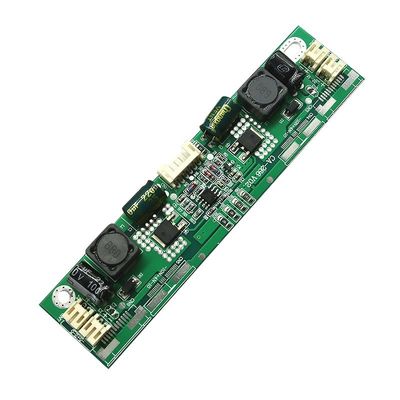

CA-266 LED Backlight Driver Board For 32-65" Led Tv Inverter Board Automatic Voltage Adjustment

Important features:

1: with protection.

2: Output voltage below 88V automatically.

3: change the current is convenient, the motherboard has six 1206 resistance, a resistance of 80mA, up to 6 resistance is fully connected to 480mA.

5: no load will not burn the board (in the case of no load or bad light output voltage will drop to the input voltage, or in the
case of load voltage higher than 88V will be reduced to the input voltage value).

6: with 4 output interface, the general definition of ++ -, in the then 2pin left and right of the right light of the interface,
directly to the middle of the 2,3 pin can be, 1, 4 pin empty.

If you donot know any repair skill, please consider carefully to buy it

Special attention: when testing, do not connect ADJ feet!

1. Input:10-28V DC
2. Output voltage :18-88V
3. Output current:10-1000mA ( can be set)
4. Applicable light bar:Large size 32 inch -65 inch

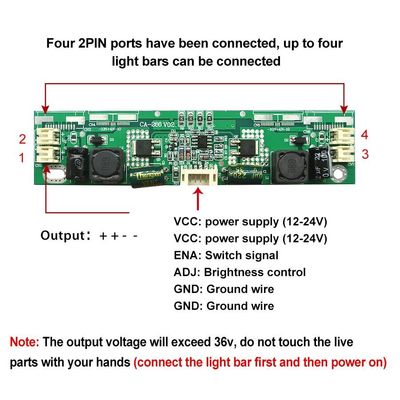

5. Input Interface Definition: 1: Power supply    2: Power supply    3: ENA switch control
6.  4: Brightness adjustment signal      5: Ground wire          6: Ground wire
7. Output interface definition:Positive and negative (++ -) There are four parallel interfaces
