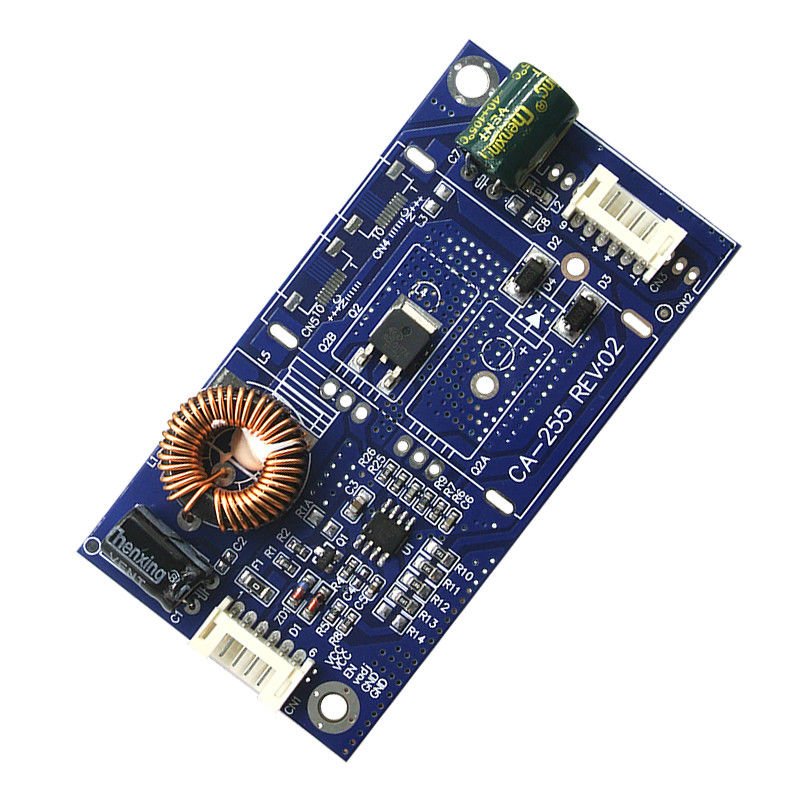

CA-255 LED Backlight Driver Board PWM Pulse Width Adjustment 10.8-28v

Large Image : CA-255 LED Backlight Driver Board PWM Pulse Width Adjustment 10.8-28v

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	creatall
Model Number:	CA-255

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiable
Packaging Details:	ABF,1000pcs/ctn
Delivery Time:	5-8 work days
Supply Ability:	10000 Piece/Pieces per Day

Contact Now

CA-255 LED Backlight Driver Board PWM Pulse Width Adjustment 10.8-28v

Description

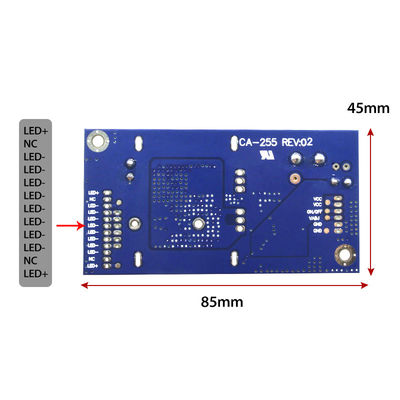

Product Model:	Ca-255	Product Size:	85*45mm
Input Voltage:	10.8-28v	Ouput Voltage:	88v Auto
Output Current:	Default 480ma, 10-1000(can Be Set)	Port:	Shenzhen Port Guangzhou Port
Highlight:	CA-255 LED Backlight Driver Board , LED Backlight Driver Board PWM , universal led inverter board 28v

CA-255 Constant Current Board Universal 10''-42"Inch LED TV Backlight Driver Board

Product Description:

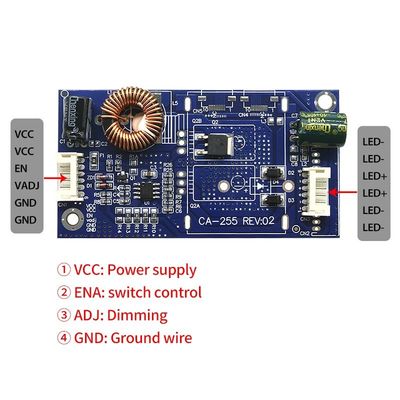

1. VCC: power supply and voltage positive, circuit voltage (The voltage is usually 12V or 24V)

2. ON / OFF, ON, EN, ON_BL etc: switch foot, foot switch signal (The voltage range is between 2.5V-5V)

3. PWM, PDIM, VDAJ, BL-PWM et al: brightness adjustable feet (Dimming have two modes, one is in digital mode -PWM,
one is analog dimming -DC

4. The PWM is called pulse width adjustment, which generates a rectangular square wave signal, the frequency is generally 200HZ-2KHZ,
the voltage amplitude is generally 3.3V, PDIM English shorthand, Dim means"brightness."
The Analog dimming is by the DC voltage ,it is usually transferred directly to the foot which provide 0V-5V DC voltage to control the brightness.

GND: ground (negative)

LED +: light-emitting diode (LED strip) Positive

LED-: light-emitting diode (LED strip) Negative

Features:

Model No: CA-255
Input Vol: 10.8-28V
Output Vol:: 15-88v
size: 8.5x4.5CM
Weight: 24.4g
