CA-188 LED Backlight Driver Board ON Switching Signal ADJ Brightness Control

LED high pressure board modification, replacement instructions

1: Connect the power supply, ground wire and switching signal required by the booster board to the universal LED booster board VCC power supply ON switching signal ADJ Brightness control GND ground wire (same connection method as the LCD high pressure board)

LED has many advantages, such as good brightness long life low voltage safety low power consumption and so on...

This LED booster board, set a variety of commonly used LED definitions, common common definitions of commonly used LED, is the first choice for maintenance masters to test and light LED lights, adapt LED lights, and modify LED lights in large quantities.

Note: [Does not include a group of 3, 9V buck solution lamp strips]

【 Supported definition 】

Single and dual 12pin softbar interface: -5+2-5; 【 Single and double lights can be connected 】

Single and double 10pin softbar interface: -3+4-3; 【 Single and double lights can be connected 】

Single and dual 10pin softbar interface: -4+2-4; 【 Single and double lights can be connected 】

Single 12pin softbar interface: +3-9;

Commonly used 6-wire interface: -2+2-2 (Samsung 6-wire);

Commonly used 1.0 specification 6-pin softbar interface: -2+2-2;

Common 2-pin interface: BH2.0

Common standard lamp small port interface: BH 3.5 small port [can be connected to single and double lights]

• input Vol: 10-26V
• output Vol: 18-60V
• supported: 15inch-27inch panel
• For: LED panel
• Supporting 12 kinds of Definition with 5pcs cables

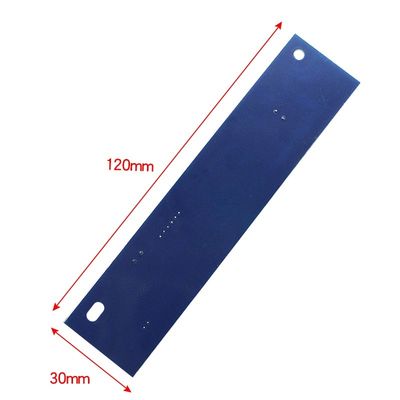

• Size:12x3cm
•
