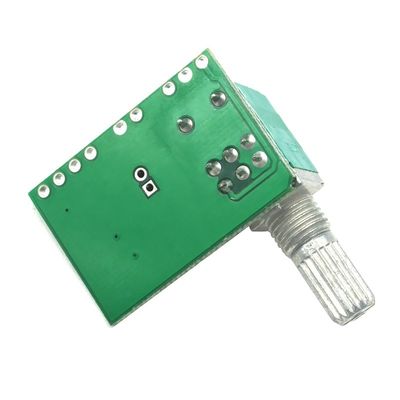

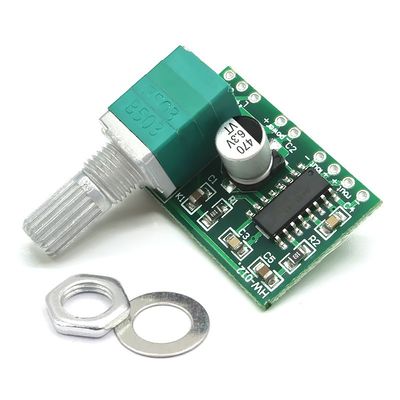

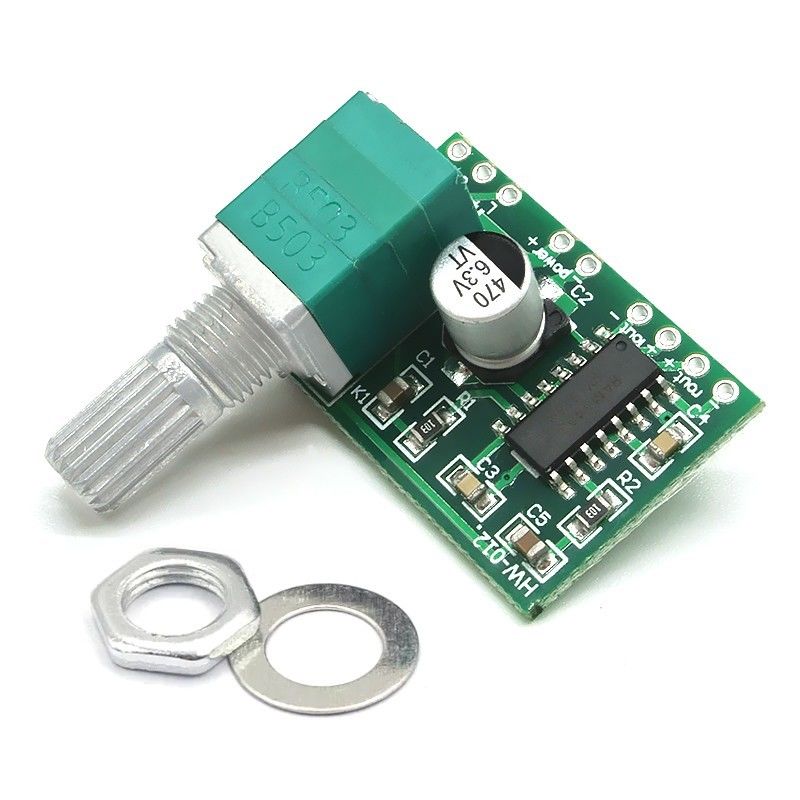

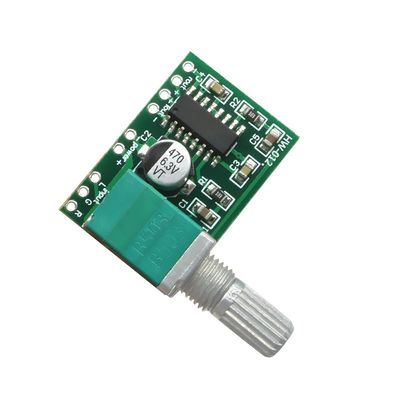

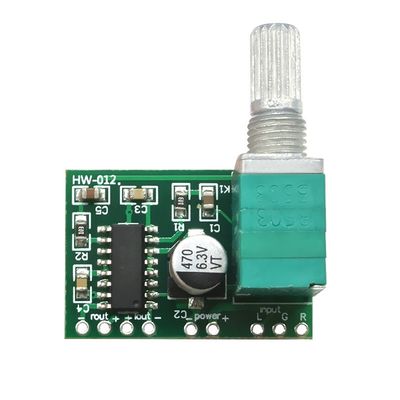

CA-8403S Mini Digital Preamplifier Board DC 5V 2 Channel 2*3W PAM8403 Amplifier Audio Module

CA-8403S Mini Digital Preamplifier Board DC 5V 2 Channel 2*3W PAM8403 Amplifier Audio Module
CA-8403S Mini Digital Preamplifier Board DC 5V 2 Channel 2*3W PAM8403 Amplifier Audio Module
CA-8403S Mini Digital Preamplifier Board DC 5V 2 Channel 2*3W PAM8403 Amplifier Audio Module CA-8403S Mini Digital Preamplifier Board DC 5V 2 Channel 2*3W PAM8403 Amplifier Audio Module CA-8403S Mini Digital Preamplifier Board DC 5V 2 Channel 2*3W PAM8403 Amplifier Audio Module CA-8403S Mini Digital Preamplifier Board DC 5V 2 Channel 2*3W PAM8403 Amplifier Audio Module CA-8403S Mini Digital Preamplifier Board DC 5V 2 Channel 2*3W PAM8403 Amplifier Audio Module

Large Image :  CA-8403S Mini Digital Preamplifier Board DC 5V 2 Channel 2*3W PAM8403 Amplifier Audio Module

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: CA-8403S
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: carton box
Delivery Time: 5-8 work days
Supply Ability: 10000 Piece/Pieces per Day
Contact Now

CA-8403S Mini Digital Preamplifier Board DC 5V 2 Channel 2*3W PAM8403 Amplifier Audio Module

Description
Features: Amplifier Audio Module Application: Amplifier Audio Module
Technology: Amplifier Audio Module Series: Amplifier Audio Module
Mounting Type: Direct Mounting Description: Amplifier Audio Module
MODEL NO: CA-8403S TPYE: Digital Amplifier Module
POWER: 2*3W Port: Shenzhen Port
Highlight:

CA-8403S Digital Preamplifier Board

,

Digital Preamplifier Board DC 5V

,

Digital Power Amplifier Board 2*3W

CA-8403S Mini Digital Preamplifier Board DC 5V 2 Channel 2*3W PAM8403
Product Overview

CA-8403S DC 5V 2 Channel Mini Digital Audio Amplifier Board delivering 2*3W power output with high-fidelity sound quality.

Technical Specifications
Power Supply: DC 5V
Output Power: 2 × 3W
Channels: 2 Channel Stereo
Dimensions: 29.5 × 20.2 × 15mm (excluding potentiometer)
Speaker Compatibility: 4Ω, 8Ω small speakers
Key Features
  • Compact digital amplifier chip with high-definition sound quality
  • Optimized circuit configuration with 470μF power supply filtering
  • Excellent noise suppression - virtually silent when no audio input
  • Class-D digital power board with unique non-LC filter design
  • Compatible with computer USB power supply
  • Double-sided PCB wiring for balanced ground potential and reduced crosstalk
  • Ultra-miniature design for integration into small digital products
  • 15-year lifespan expectancy
  • Integrated switch potentiometer for power control
Important Notes
  • Left and right channel negative outputs cannot be connected together - this will damage the IC
  • Always connect speakers (load) before applying power
  • Rated operating voltage: 2.5V - 5V
  • Maximum operating voltage: 5.5V
