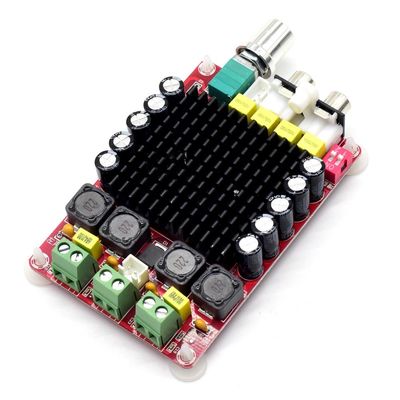

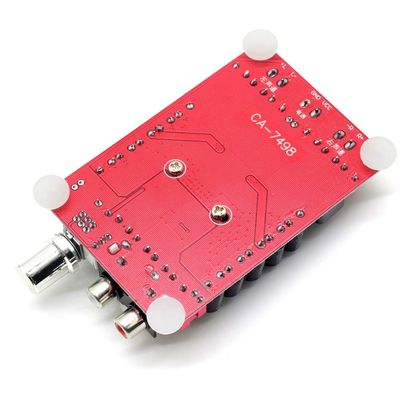

Dual Channel 100W Output Audio Amplifier Board with DC14-34V Input and Class D Technology

Dual Channel 100W Output Audio Amplifier Board with DC14-34V Input and Class D Technology
Dual Channel 100W Output Audio Amplifier Board with DC14-34V Input and Class D Technology Dual Channel 100W Output Audio Amplifier Board with DC14-34V Input and Class D Technology Dual Channel 100W Output Audio Amplifier Board with DC14-34V Input and Class D Technology Dual Channel 100W Output Audio Amplifier Board with DC14-34V Input and Class D Technology

Large Image :  Dual Channel 100W Output Audio Amplifier Board with DC14-34V Input and Class D Technology

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall
Model Number: CA-7498
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Delivery Time: 5-8 work days
Supply Ability: 100000 Piece/Pieces per Day
Contact Now

Dual Channel 100W Output Audio Amplifier Board with DC14-34V Input and Class D Technology

Description
Type: Home Amplifier Channels: 2 (2.0)
Best Price: Please Contact Us Port: Shen Zhen Port
Chip: TDA7498
Highlight:

TDA7498 Dual Channel Amplifier Board

,

DC14 Dual Channel Amplifier Board

,

Dual Channel Amplifier Board 2X100W

CA-7498 DC14-34V Dual Channel Amplifier Board Class D 2*100W Smart Electronics TDA7498
High-performance dual channel audio amplifier board featuring TDA7498 chip technology, delivering 100W per channel with exceptional audio quality and efficiency.

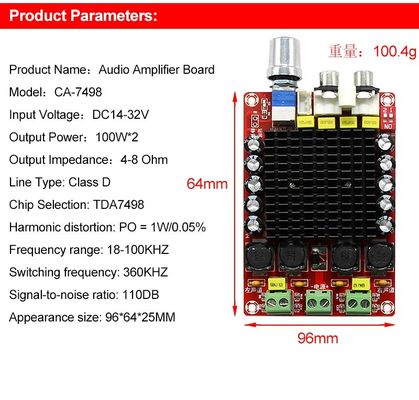

Product Specifications
Specification Details
Product Name Audio Amplifier Board
Model CA-7498
Chip TDA7498
Input Voltage DC 14-32V
Output Power 100W × 2
Output Impedance 4-8 Ohm
Amplifier Class Class D
Harmonic Distortion PO=1V/0.05%
Frequency Range 18-100kHz
Switching Frequency 360kHz
Signal-to-Noise Ratio 110dB
Dimensions 96 × 64 × 25mm

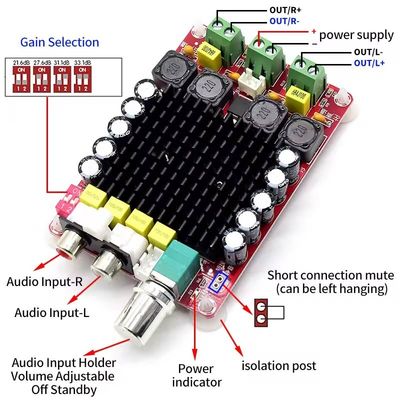

Key Features
  • Dual channel stereo amplification
  • High-efficiency Class D operation
  • Wide input voltage range (DC 14-32V)
  • Excellent signal-to-noise ratio (110dB)
  • Low harmonic distortion
  • Compact design for space-constrained applications
  • Compatible with 4-8 Ohm speakers
