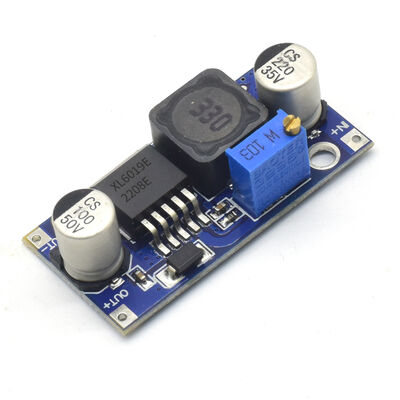

XL6009E DC-DC Booster Board XL6009 Power Supply Module XL6009E ICs Product Category

XL6009 LED LCD TV backlight display module DC-DC Output Adjustable step-up power supply module board

Brand: CREATALL

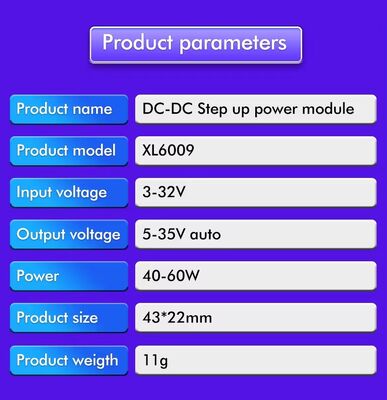

Model: XL6009

Size :43mm * 21mm * 14mm

Input :3V~32V

Output :5V~35V

Output current :4A(MAX)

Conversion efficiency ::<94%

On-off level:400KHz

Operating temperature :-40°C~ +85°C

Load capacity :±0.5%

Voltage regulation: ±0.5%

Type: Other power modules

Purpose: LCD TV voltage conversion voltage conversion step-down module

Type: LCD module

Our products are independent research and development and production, sophisticated technology, each products are through strict test before sent to the user. And can meet the demand of batch. 32V - 3V input /output highest 35V Output voltage range: 4V to 38V dc voltage continuously adjustable, high efficiency (96%) of the maximum output current for 4A.

Advantage: use double thickening black oil PCB with high quality, all use imported SMD aluminum electrolytic capacitors, high Q value power inductors. And every piece of plate passes through the strict technical test, test completely using separate antistatic protection bag packaging.

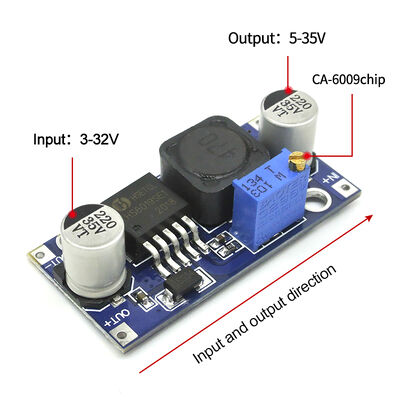

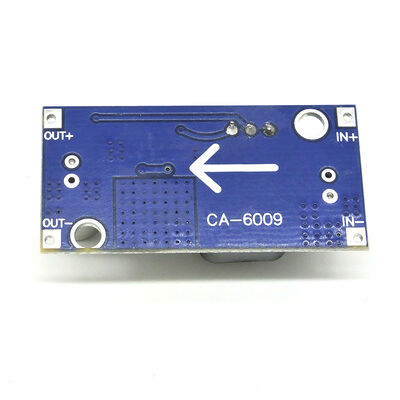

Note: Does this modules relative to the LM2577 triode mode conversion efficiency is higher Does this module is adjustable booster module, can by adjusting the precision of modules above circle more adjustable potentiometer To change the output voltage. The highest output voltage is 38 v. Chronological booster, reverse-time step-down. Does the module above marked GND (input), the IN + (input), GND (output), the OUT + (output) Does working temperature: : industrial grade 40 to + 85 (-) (ambient temperature more than 40 degrees, please reduce power use, or enhance heat dissipation)

Shenzhen Creatall Electronics Co., Ltd is a one of the leading manufacturer and supplier of electronics modules, specializing in audio amplifier modules,power supply modules,BMS battery protection modules, L E D driver module and other related electronics skd products.
Our products have a wide range of application, including smart home devices, consumer products, small household appliance, communication equipment and industrial supplies. Creatall company is dedicated to providing high-quality solutions to meet the diverse needs of our customers.
In addition to our standard product line, we have a dedicated team of experienced engineers and designers who can provide customized O D M and O E M services to meet the specific requirements of our customers. From concept to production, we work closely with our clients to ensure that their unique needs are met. Our O D M and O E M services include product design, prototyping, testing, and manufacturing.
At Creatall, we are committed to delivering innovative and reliable products that meet the high standards of quality and performance. With state-of-the-art facilities and advanced manufacturing capabilities, we are able to deliver high-quality products quickly and efficiently. We pride ourselves on our commitment to customer satisfaction and strive to exceed their expectations in every aspect of our business.
Whether you need a standard product or a customized solution, Creatall is your trusted partner for all your module needs.
At present, we are also recruiting regional agents worldwide. Welcome to contact us!
