SDP810-500PA SDP1108-R CMOSENS Technology Pressure Sensor for Testing Detector Pressure and Measuring Instrument

Large Image : SDP810-500PA SDP1108-R CMOSENS Technology Pressure Sensor for Testing Detector Pressure and Measuring Instrument

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	5

Contact Now

SDP810-500PA SDP1108-R CMOSENS Technology Pressure Sensor for Testing Detector Pressure and Measuring Instrument

Description

Series:	SDP	Mounting Type:	None
Description:	Standard, CMOSENS Technology Pressure Sensor	Manufacturer Part Number:	SDP810-500PA, SDP1108-R
Type:	Pressure Sensor	Usage:	Testing The Pressure Of The Detector
Accuracy:	None
Highlight:	SDP810-500PA pressure sensor , CMOSENS technology pressure sensor , pressure sensor for measuring instrument

Product Description

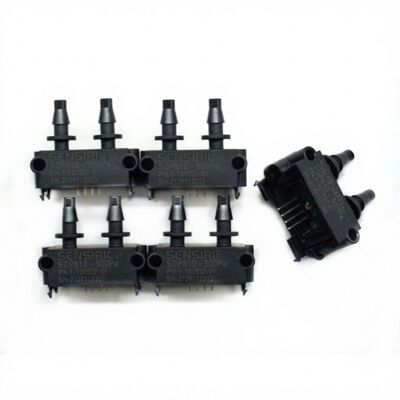

SDP810-500PA digital differential pressure sensor, its main parameters and application scenarios are as follows:

Parameters
1. Pressure measurement type: differential pressure
2. Measuring range:-500Pa to 500Pa
3. Zero accuracy: 0.1Pa
4. Range accuracy: 3% of reading
5. Zero repeatability: 0.05Pa
6. Range repeatability: 0.5% of reading
7. Span drift due to temperature change: <0.5% of reading per 10 ℃ change
8. Offset stability:<0.05Pa/year
9. Output Type: Number
10. Interface: I²C
11. Supply voltage: 3V to 5.5V
12. Supply current: 3.8mA (measurement),1.1mA (idle state),1 μA (sleep mode)
13. Calibration temperature range:-20 ℃ to 85 ℃
14. Operating temperature range:-40 ℃ to 85 ℃
15. Response time:<3 ms
16. Resolution: 16 bits
17. Package form: SIP
18. Applicable medium: air, nitrogen and other non-corrosive gases

Application Scenarios
1. Heating, ventilation and air conditioning (HVAC) systems: Used for variable air volume (VAV) controllers, burners, heat
recovery systems and filter monitoring to accurately measure airflow pressure, optimize system operating efficiency, and ensure indoor air quality and comfort.
2. Medical equipment: It can be applied to medical equipment such as ventilators to accurately measure the gas pressure
difference and provide accurate data support for patients' respiratory support.
3. Gas boiler: monitor the gas pressure in the boiler to ensure the stability and safety of the combustion process.
4. Pellet furnace: Accurate measurement of the pressure in the furnace helps to control the combustion process and improve energy efficiency.
5. Fuel cell: Monitor the pressure change inside the fuel cell to ensure the normal operation and stable performance of the fuel cell.

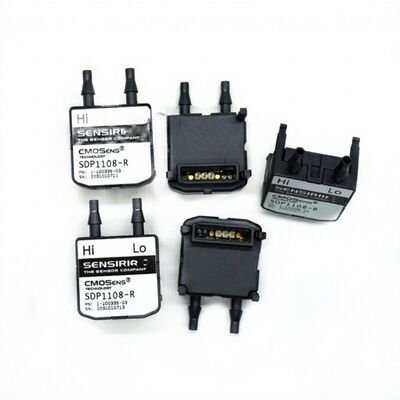

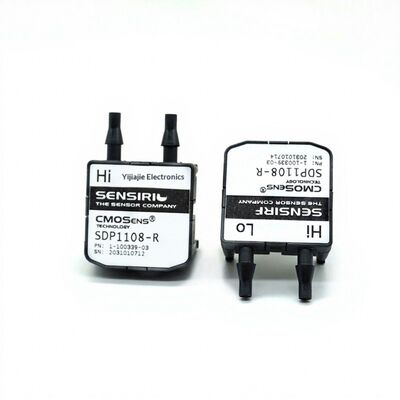

SDP1108-R analog differential pressure sensor, its main parameters and application scenarios are as follows:

Parameters
1. Type of pressure measurement: Differential pressure
2. Measurement range: 0-500Pa
3. Accuracy: ± 1%
4. Supply voltage: 4.75V to 5.25V
5. Average supply current: 5.1mA
6. Maximum supply current: 6mA
7. Output Type: analog voltage
8. Output voltage range: 0-4V
9. Response time: 8ms
10. Resolution: 0.05Pa
11. Operating temperature range:-10 ℃ to 60 ℃
12. Encapsulation form:SIP
13. Pressure Port Type: Radial barbed on both sides, same side
14. Applicable mediaAir, nitrogen, oxygen

Application Scenarios
1. medical field: It can be used for air flow measurement in medical equipment, such as ventilators, etc., to accurately monitor the gas pressure difference and provide accurate data support for patients' respiratory support.
2. Heating, Ventilation and Air Conditioning (HVAC) Systems: Used to monitor airflow pressure in the system, such as in variable air volume (VAV) systems, accurately measure airflow pressure, optimize system operating efficiency, and ensure indoor air quality and comfort.
3. Process Automation: In some automated production processes that require accurate measurement of gas differential pressure, the sensor can provide reliable pressure measurement data to help control and optimize the production process.

Specification

item	value
Mounting Type	None
Model Number	SDP810-500PA, SDP1108-R
Accuracy	None
Description	standard
Type	pressure sensor
Place of Origin	China
Usage	testing the pressure of the detector
Series	SDP
Description	CMOSENS technology pressure sensor
