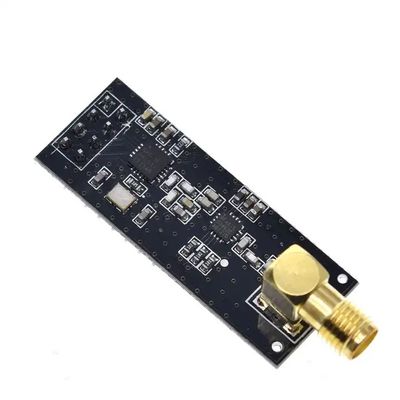

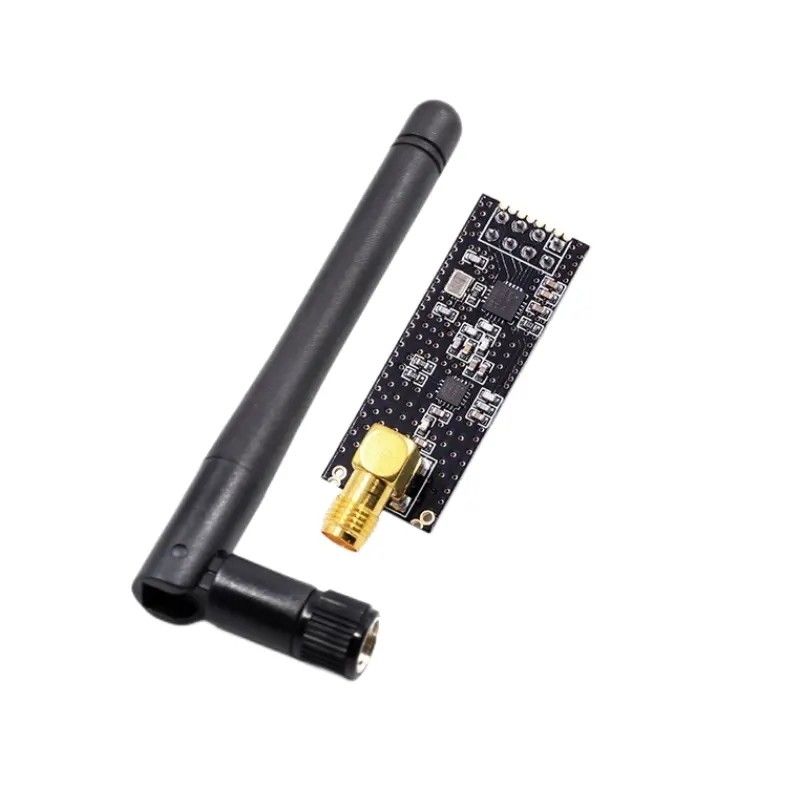

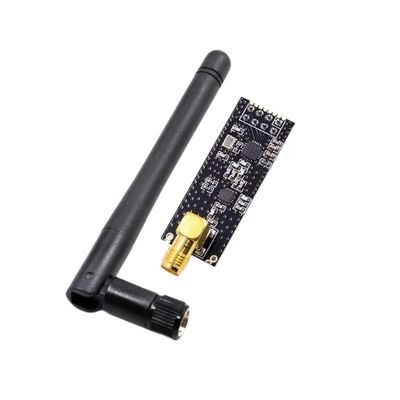

NRF24L01 PA LNA Wireless Module With Antenna 1000 Meters Long Distance FZ0410

NRF24L01 PA LNA Wireless Module With Antenna 1000 Meters Long Distance FZ0410

1,Parameters:

Voltage: 3-3.6V
Max output power: +20 dBm
Working current in transmit mode: 115mA
Working current in receiver mode: 45mA
Current in mode: 4.2uA
Operating temperature: -20-70 degree
Receiver sensitivity: -92dBm in 2Mbps mode, -95dBm in 1Mbps mode, -104dBm in 250kbps mode
PA growth: 20dB
LAN growth: 10dB
LAN noise figure: 2.6dB
Antenna growth: 2dBI
2M rate: 520m

2,Product Description:

NRF24L01P + PA + LNA Division I for the ultra-long-distance data transmission specially developed high-powerand high sensitivity wireless module 2.4G ISM band NRF24L01P + PA + LNA wireless module to work in thelicense-free, can be point-to-pointapplications, can also be composed of a star network,
NRF24L01P + PA + LNA wireless module core Norway NORDIC company's latest high-performance wireless
Digital transmission chip NRF24L01 +, with the Division of Professional Design professional full two-way RF power amplifier high power PA and LNA chip, RF switches, bandpass filters, etc., makes effective communicationdistance greatly expand.
RF part, the Secretary has done a lot of optimization matching debugging, the emission efficiency to achieve the highest harmonic minimum
Makes NRF24L01P + PA + LNA wireless module of RF interference to the external equipment reaches a minimum, while not susceptible to interference from other devices, greatly Uploader
High stability of the work.

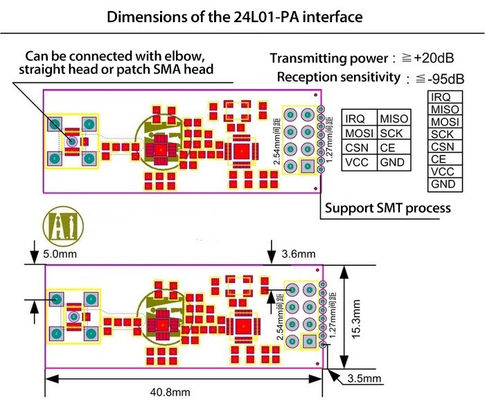

NRF24L01P + PA + LNA wireless module integration is extremely high, the size of only 41mm * 15.5mm,convenient embedded
In any tight space products, customers can increase an MCU through the SPI port to control NRF24L01P + PA +LNA
Wireless module to complete the design of ultra-long-range wireless data transmission system completely eliminates the need for the RF part of the R & D
Worry about slash R & D spending and shorten the development cycle
