Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module

Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module
Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module

Large Image :  Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: CA-1235
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: CN¥1.98/pieces 50-499 pieces
Contact Now

Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module

Description
Mounting Type: Standard Description: Standard, Ca-1235 Power Module
Item: CA-1235 Size: 30*20mm
Voltage: Input 5-15v Type: Integrated Circuit
Specifications: Standard Memory Type: Standard
Power - Output: Standard Modulation Or Protocol: Standard
Frequency - Switching: Standard
Highlight:

3A Adjustable Voltage Converter

,

20mm Integrated Circuit Model Converter

,

LED TV Power Supply Module

Products Description
Contact us
Wechat：
zq13827494627
Mobile：
+86-13827494627
Skype：
alvacheng1
E-mail：
leo@creatall.com

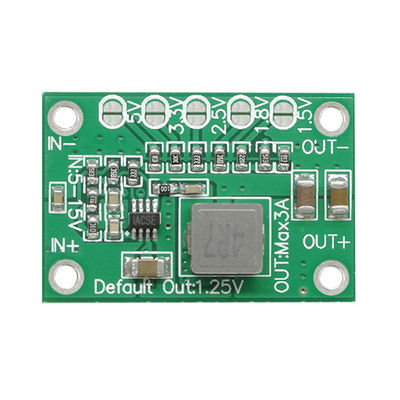

CA-1235 power supply converter adjustable amplifier module LED TV power setp-down supply module board


Brand: CREATALL
Model: CA- 1235
Type: LCM LCD module

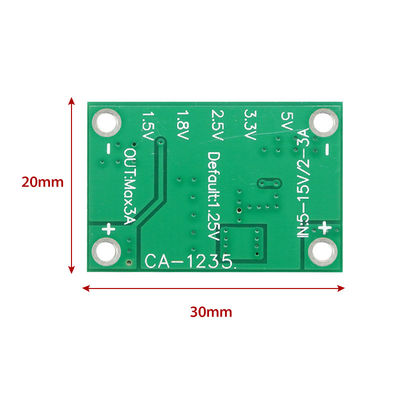

Product size: 30*20*15 (mm)
input :5-15v

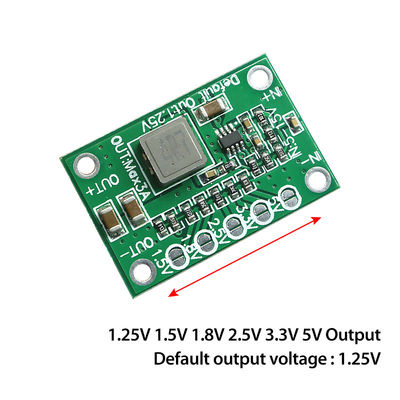

output :1.25v 1.5v 1.8v 2.5v 3.3v 5v
This adjustable module uses the United States imported MP1495 chip, synchronous rectifier output,The power efficiency is up to 90% or more, similar non-linear power supply comparable to the market.5-16V voltage input, 1.25V 1.5V 1.8V 2.5V 3.3V 5V output, 3A current output, short-circuit point to adjust the output voltage (to avoid the appearance of the same potentiometer adjustable voltage appears not allowed to phenomenon), the default output voltage1.25V.Suitable for a variety of small-signal LCD TV power supply maintenance replacement, three lines get power maintenance

Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module 0
Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module 1
Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module 2
Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module 3
Company Profile
Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module 4
Certificates & Production Processes
Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module 5
Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module 6
Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module 7
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module 8
Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module 9
Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module 10
Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module 11
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module 12
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module 13
Contact Us
Creatall CA-1235 3A 5V-15V Adjustable Voltage Converter with 20mm Integrated Circuit Model LED TV Power Supply Module 14
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
