3.7V 4.2V 18650 Lithium Battery Charging Boost Power Board Protection Type-c The Ideal 5V Charging and Discharging Solution

3.7V 4.2V 18650 Lithium Battery Charging Boost Power Board Protection Type-c The Ideal 5V Charging and Discharging Solution
3.7V 4.2V 18650 Lithium Battery Charging Boost Power Board Protection Type-c The Ideal 5V Charging and Discharging Solution 3.7V 4.2V 18650 Lithium Battery Charging Boost Power Board Protection Type-c The Ideal 5V Charging and Discharging Solution 3.7V 4.2V 18650 Lithium Battery Charging Boost Power Board Protection Type-c The Ideal 5V Charging and Discharging Solution 3.7V 4.2V 18650 Lithium Battery Charging Boost Power Board Protection Type-c The Ideal 5V Charging and Discharging Solution 3.7V 4.2V 18650 Lithium Battery Charging Boost Power Board Protection Type-c The Ideal 5V Charging and Discharging Solution 3.7V 4.2V 18650 Lithium Battery Charging Boost Power Board Protection Type-c The Ideal 5V Charging and Discharging Solution

Large Image :  3.7V 4.2V 18650 Lithium Battery Charging Boost Power Board Protection Type-c The Ideal 5V Charging and Discharging Solution

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: other
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: CN¥4.76/pieces 100-499 pieces
Contact Now

3.7V 4.2V 18650 Lithium Battery Charging Boost Power Board Protection Type-c The Ideal 5V Charging and Discharging Solution

Description
Highlight:

Lithium Battery Charging Boost Power Board

,

18650 Power Board

3.7V 4.2V 18650 Lithium Battery Charging Boost Power Board Protection Type-c The Ideal 5V Charging and Discharging Solution 0
Products Description

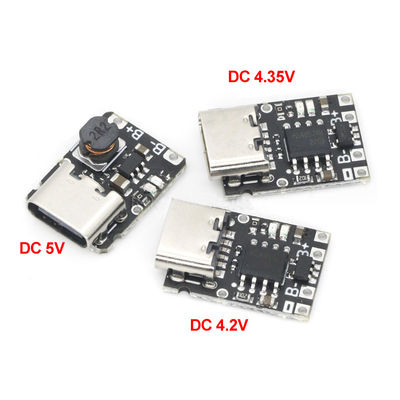

4.2V 18650 Lithium Battery Charging Protection Module

The charging cycle is automatically terminated when the charging current drops to 100mA after the final float voltage is reached. The charging cycle restarts when the battery voltage drops below 4.05V (roughly corresponding to 80%90% of the battery capacity). When the battery voltage falls below 2.9V, the battery will be pre-charged at 100mA with protection board, over-voltage protection, over-discharge protection, over-current protection. Over-discharge protection value: 2.4V Over-current protection value: 4A Initial use requires a power supply to activate the protection board. 1, small size 2, support Type-C interface power supply, compatible with most of the PD fast chargers 3, 1A current linear charging 4、With protection board function

[Input Voltage Range]:5~6V [Output Voltage]:4.2V [Charging Current]:1A
3.7V 4.2V 18650 Lithium Battery Charging Boost Power Board Protection Type-c The Ideal 5V Charging and Discharging Solution 1
3.7V 4.2V 18650 Lithium Battery Charging Boost Power Board Protection Type-c The Ideal 5V Charging and Discharging Solution 2

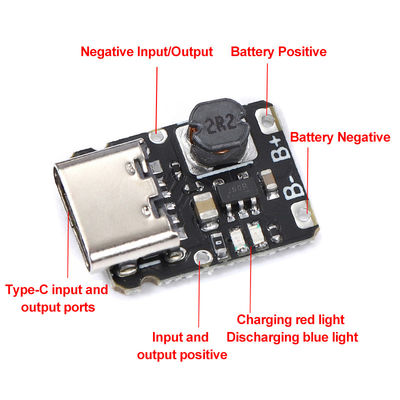

5V 18650 Lithium Battery Charging Protection Module

Limit large 5V1.2A charging current, 5V output suitable for small current, automatic switching / normally open input and output display indicator, 3.7V lithium electric charge full 4.2V / suitable for 18650 polymer and so on. Smaller than 18650 battery cross section charging module, also with discharge, is an alternative to 4056 and other linear charging module. Comparison of 4056/4057 and other linear charging technology. This module charging temperature control is good. Adopts Type-c port, which can be input or output.

Product Parameter
1, small volume, smaller than similar products are small. 2, 4.5-5.5V power supply, applicable to a single section of electricity (parallel connection is not limited), limited to 1.2A, according to the requirements of the use of stable 1A current. 3、Applicable to all types of 3.7V carp batteries, including 18650 and collection of batteries 4, with overcharge and overdischarge protection, overdischarge protection 29V, charging cut-off voltage 4.2V 5, no external input voltage automatically switch to output mode, support small current, output 5V output support 450ma or so. If output 1A, the voltage will be around 4.9V-4.5V according to the power. 6, automatic switching input and output, external voltage input when charging the battery, otherwise discharge charging green light flash, full green light long light, discharge no load standby when the light does not light, with load discharge light blue light. Standby power consumption is about 0.8mA.

3.7V 4.2V 18650 Lithium Battery Charging Boost Power Board Protection Type-c The Ideal 5V Charging and Discharging Solution 3
3.7V 4.2V 18650 Lithium Battery Charging Boost Power Board Protection Type-c The Ideal 5V Charging and Discharging Solution 4
3.7V 4.2V 18650 Lithium Battery Charging Boost Power Board Protection Type-c The Ideal 5V Charging and Discharging Solution 5
