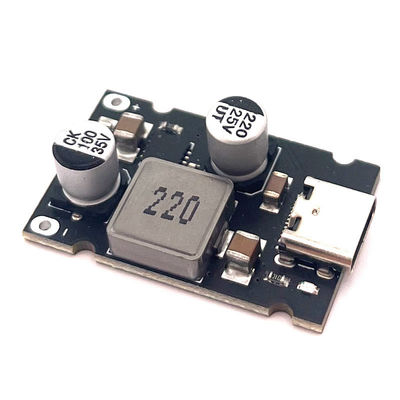

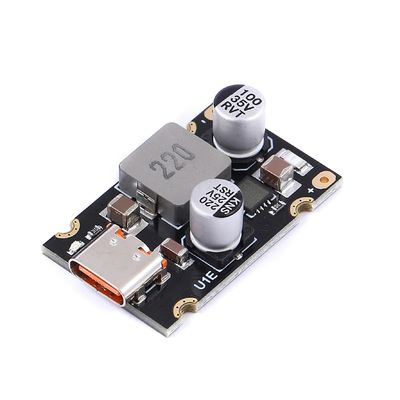

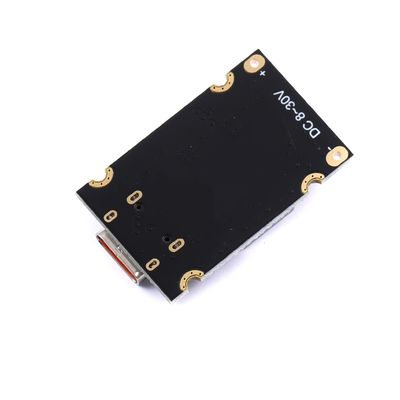

PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V

PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V
PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V

Large Image :  PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: PD65W
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: CN¥11.70/pieces 50-199 pieces
Contact Now

PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V

Description
Highlight:

PD65W Fast Charging Module

,

QC3.0 Fast Charging Module

,

Type-C Fast Charging Module

PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V 0
Products Description
Product Features Input voltage: DC8~32V Output voltage: automatically adjusts between 3.3V~21V when connected to TYPE-C compatible powered devices (input voltage should be higher than output voltage, if you want to trigger 20V fast charging then input voltage should be higher than 20V) Output power: 65W max (5V3A, 9V3A, 12V3A, 20V3.25A, etc.) Conversion efficiency: 92%~97% Output voltage ripple: <200mV No-load current: <3mA Input overvoltage, undervoltage protection Input overcurrent protection Output over-current, short-circuit protection Whole machine over-temperature protection Supported charging protocols BC1.2, Apple protocol Qualcomm QC2.0 and QC3.0 Huawei Fast Charging Protocol FCP and SCP Samsung Fast Charging Protocol AFC MTK PE+1.1 and MTK PE+2.0 PD2.0/PD3.1 (PPS) output protocols
PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V 1
PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V 2
Contact us
Wechat：
zq13827494627
WhatsApp：
+86-13827494627
Skype：
alvacheng1
E-mail：
leo@creatall.com
Company Profile
PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V 3
Certificates & Production Processes
PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V 4
PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V 5
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V 6
PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V 7
PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V 8
PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V 9
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V 10
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V 11
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
