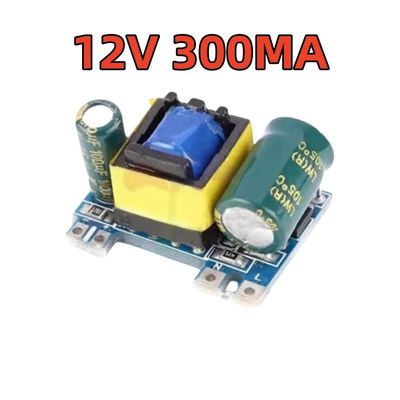

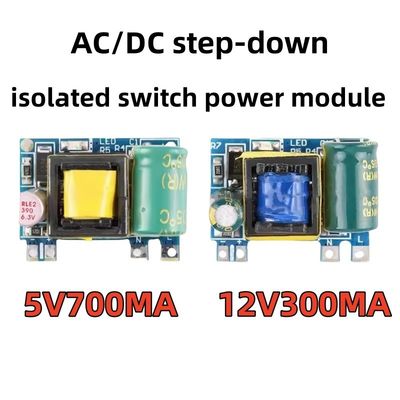

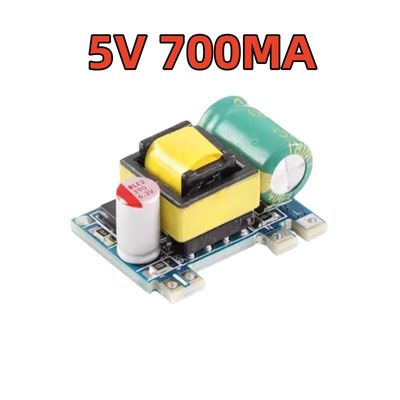

Isolated 5V/12V AC/DC Switch Power Module 700MA/300MA (3.5W) 220 rpm Configurable Power Supplies

Isolated 5V/12V AC/DC Switch Power Module 700MA/300MA (3.5W) 220 rpm Configurable Power Supplies
Isolated 5V/12V AC/DC Switch Power Module 700MA/300MA (3.5W) 220 rpm Configurable Power Supplies Isolated 5V/12V AC/DC Switch Power Module 700MA/300MA (3.5W) 220 rpm Configurable Power Supplies Isolated 5V/12V AC/DC Switch Power Module 700MA/300MA (3.5W) 220 rpm Configurable Power Supplies Isolated 5V/12V AC/DC Switch Power Module 700MA/300MA (3.5W) 220 rpm Configurable Power Supplies Isolated 5V/12V AC/DC Switch Power Module 700MA/300MA (3.5W) 220 rpm Configurable Power Supplies Isolated 5V/12V AC/DC Switch Power Module 700MA/300MA (3.5W) 220 rpm Configurable Power Supplies

Large Image :  Isolated 5V/12V AC/DC Switch Power Module 700MA/300MA (3.5W) 220 rpm Configurable Power Supplies

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall
Model Number: 5V700MA 12V300MA
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: CN¥3.66-7.31/pieces
Contact Now

Isolated 5V/12V AC/DC Switch Power Module 700MA/300MA (3.5W) 220 rpm Configurable Power Supplies

Description
Features: AC/DC Type: Step-down

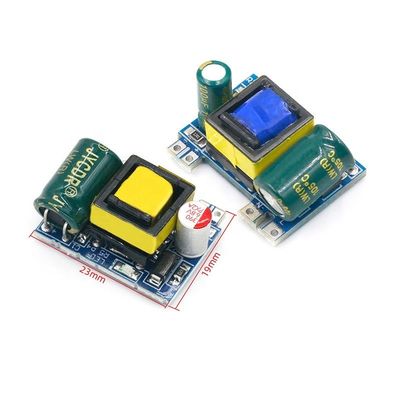

Mounting Type: Standard Size / Dimension: 23*19mm
Description: Isolated Switch Power Module
Highlight:

5V/12V AC/DC Switch Power Module

,

300MA AC/DC Switch Power Module

,

700MA AC/DC Switch Power Module

Isolated 5V/12V AC/DC Switch Power Module 700MA/300MA (3.5W) 220 rpm Configurable Power Supplies 0
Products Description
Operating temperature: -20 degrees to 70 degrees, advanced models of green gold capacitors temperature 105 degrees 10,000 hours, 70 degrees greater than 5 years, room temperature about 20-50 years (not recommended for use above 70 degrees), output filtering high-quality solid-state capacitors Input characteristics: Input voltage range: AC50V-277V DC70V-390V No-load power: Output characteristics: multiple modules of the same voltage can be used in parallel to meet the needs of small space and high current. Output voltage: 12V -0.05+0.3V no-load and full-load, light load minus 0.1V, back up at heavy load, ripple 100mV at 50% load Output current: 12V0mA-300mA, full load into the constant current mode of operation Test resistance: 12V with 40 ohms (12V) Output indicator: green light Output power: 3.5W Efficiency of about 80 per cent Output protection: over-voltage, over-current, over-temperature, over-power, short circuit protection, etc. Translated with DeepL.com (free version)
Isolated 5V/12V AC/DC Switch Power Module 700MA/300MA (3.5W) 220 rpm Configurable Power Supplies 1
Isolated 5V/12V AC/DC Switch Power Module 700MA/300MA (3.5W) 220 rpm Configurable Power Supplies 2
Isolated 5V/12V AC/DC Switch Power Module 700MA/300MA (3.5W) 220 rpm Configurable Power Supplies 3
Contact us
Wechat：
zq13827494627
WhatsApp：
+86-13827494627
Skype：
alvacheng1
E-mail：
leo@creatall.com

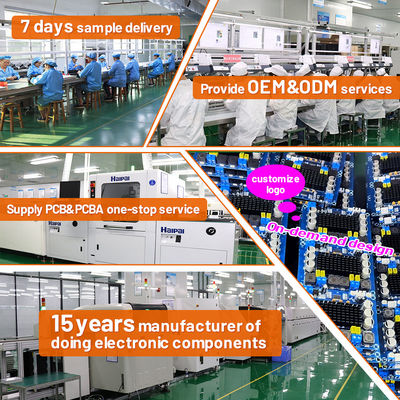

Company Profile
