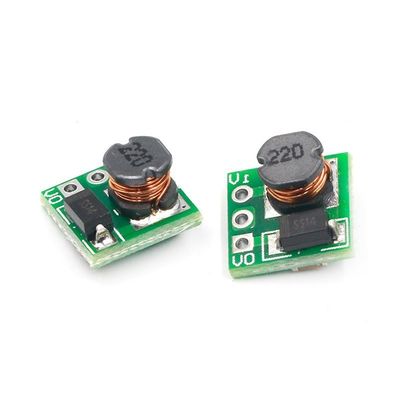

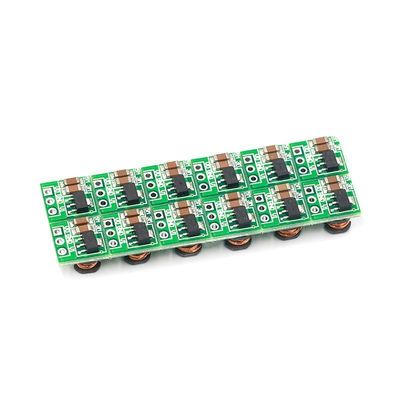

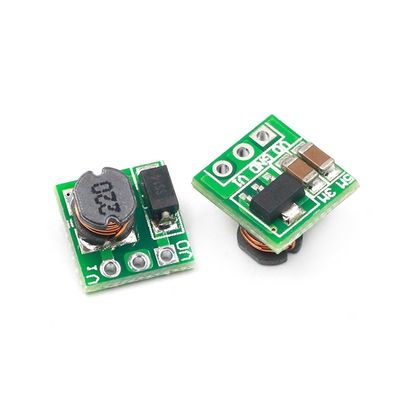

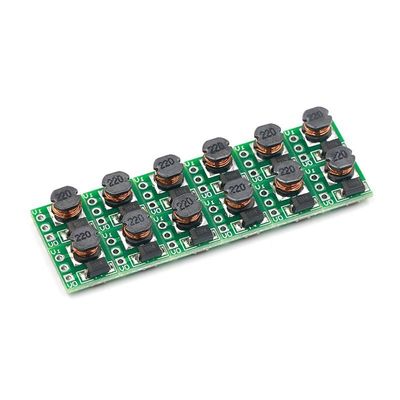

1.5V to 5V DC-DC Boost Conversion Module Board Mount 1.8V 2.5V 3V 3.7V 4.2V Boost Converters

Large Image : 1.5V to 5V DC-DC Boost Conversion Module Board Mount 1.8V 2.5V 3V 3.7V 4.2V Boost Converters

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Creatall
Model Number:	T2005

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	CN¥1.32/pieces >=1000 pieces

Contact Now

1.5V to 5V DC-DC Boost Conversion Module Board Mount 1.8V 2.5V 3V 3.7V 4.2V Boost Converters

Description

Features:	DC-DC	Type:	DC-DC Boost Conversion Module
Mounting Type:	Standard	Size / Dimension:	11*11mm
Description:	Booster Module
Highlight:	2.5V DC-DC Boost Conversion Module , 3.7V DC-DC Boost Conversion Module

Products Description

Function parameters: 3.3V output version: Input voltage 0.8-3.3V; Output voltage 3.3V Maximum output current: 500 mA Start-up voltage 0.8V, output current 10MA Input 1-1.5V, Output 3.3V 50-110MA. Input 1.5-2V, Output 3.3V 110-160MA. Input 2-3V, Output 3.3V 160-400MA. 5V output version: Input voltage 0.9-5V; Output voltage 5V Maximum output current: 480mA Start-up voltage 0.8V, output current 7MA Input 1-1.5V, Output 5V 40-100MA. Input 1.5-2V, output 5V 100-150MA. Input 2-3V, output 5V 150-380MA. Input over 3V, output 5V 380-480MA. DC-DC boost converter module, operating frequency 150KHZ, typical conversion efficiency 85%. Pin 2.54MM pitch Size: 11mm x 10.5mm x 7.5mm (very small) Weight: about 1g (very light) This is a voltage boost converter module, be sure to follow the following conditions when using it: 1 The input voltage must not be greater than the nominal voltage, otherwise the module will be burnt out. 2 The input power must be greater than the output power, otherwise the output voltage will be less than the nominal voltage. 3 The output load must not be greater than the nominal load, otherwise the output voltage will be less than the nominal voltage. Translated with DeepL.com (free version)

Contact us
Wechat：	zq13827494627	WhatsApp：	+86-13827494627
Skype：	alvacheng1	E-mail：	leo@creatall.com

Company Profile

Certificates & Production Processes

Packing & Delivery

1. Normal packaging.

2. Export carton.

3. Custom packing.

4. All orders are will be shipped within 3-25 days after customers confirmed payment.

Payment&Shipping

PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.

Customer Reviews

This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.

FAQ

Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
