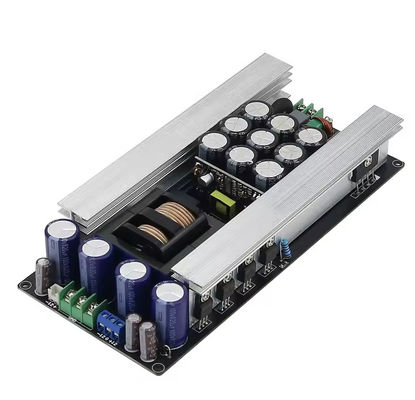

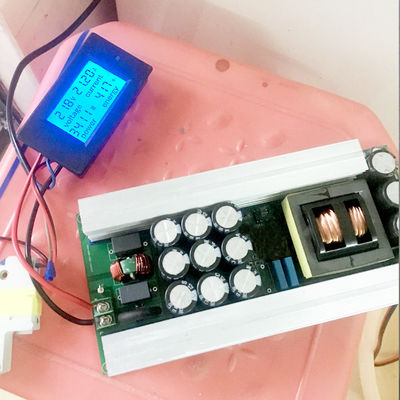

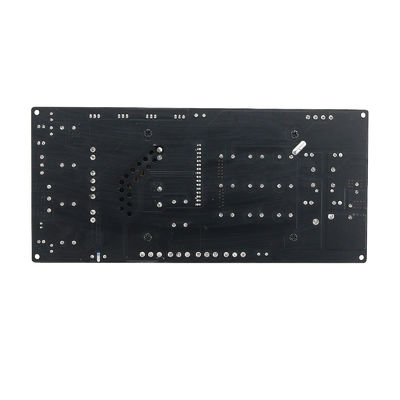

3000W LLC Amplifier Switching Power Supply Amplifier Power Supply Board ±80V Output LLC-3000W

Large Image : 3000W LLC Amplifier Switching Power Supply Amplifier Power Supply Board ±80V Output LLC-3000W

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Creatall
Model Number:	LLC-3000W

Payment & Shipping Terms:

Price:	CN¥833.33/pieces 1-19 pieces

Contact Now

3000W LLC Amplifier Switching Power Supply Amplifier Power Supply Board ±80V Output LLC-3000W

Description

Mounting Type:	Standard	Size / Dimension:	21710045mm
Description:	3000W Switching Power Supply Module	Operating Temperature:	<25℃
Efficiency:	95%	Power (Watts):	3000W
Voltage - Output:	±80V	Voltage - Input:	AC 200-240V
Current - Output (Max):	16A	Number Of Outputs:	1
Highlight:	3000W LLC Amplifier Switching Power Supply , 80V LLC Amplifier Switching Power Supply , Amplifier Power Supply Board

Products Description

Specifications: - Input voltage: AC200-240V - Optional Main Output Voltage: ±50V, ±60V, ±70, ±80V, ±90V, ±100V, ±110V, ±120V（±100V, ±110V, ±120V These voltages are customized and cannot be returned or exchanged. If you mind, please do not purchase products with these voltages） - Output: main output voltage (optional)±80V (16A); Auxiliary ±12V (500mA); Independent 12V (500mA) - Voltage Regulation Accuracy: Main No-load ±3%, with load ±10%; Auxiliary & independent ±1% (for AC220V input) - Continuous Power: 1500W (can work continuously at 25℃) - Rated Power: 2400W (Can work continuously for about 5 minutes at 25℃ ambient temperature. Cooling fan should be added for long time operation.) - Instantaneous Power: 3000W (can work continuously at 25℃ for about 1 minute) - Conversion Efficiency: Max. 95% - Weight: 760g Package Included: - 1 x Switching Power Supply Module Attention: - It is a bare board with high-voltage circuit. Professional knowledge is highly recommended. - Circuit and component grinding and epoxy resin potting treatment. Schematic diagram, PCB and technical support are not provided. - Air cooling fan is needed for long-term high-power use. The power supply features over-temperature, over-current and short-circuit protections. It will be locked when over-current and short-circuit protections are triggered. You must disconnect your AC power supply, wait for the voltage of main filter capacitor to drop to 0V, and then restart. - This power supply is a true LLC resonant power supply, and the resonant circuit features high-frequency sine wave. It is not an ordinary square wave switching power supply, which is very suitable for power amplifiers, with excellent performance. - Each power supply has been tested before delivery. The board is constantly upgraded and revised, and the component circuit may be changed. Please refer to the actual items. Thank you for your understanding! Note: -（±100V, ±110V, ±120V, These voltages are customized and cannot be returned or exchanged. If you mind, please do not purchase products with these voltages） -Please leave a message about the main output voltage you need. Different voltage capacitors have different component parameters. Please refer to the actual product. - Since the switching power supply only regulates the main voltage, the current of independent and auxiliary outputs must be less than the current of main voltage output. For example, when the current of main voltage is 10mA, the auxiliary and independent cannot withstand a load of more than 10mA. - Please choose the main voltage type you want when purchasing. Voltage capacitors and component parameters are slightly different. Pictures are for reference only. Please refer to the material items. - Other items in the pictures are not included, for demonstration purposes only. Wiring: It is tested with resistance wire and a load. The input voltage is AC 218V and the power is 3411W.
