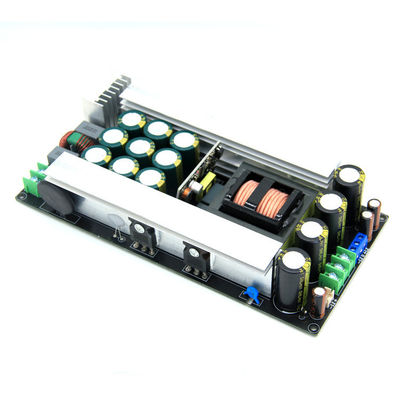

2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching

2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching
2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching

Large Image :  2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall
Model Number: LLC-2000W
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: CN¥505.85/pieces 5-99 pieces
Contact Now

2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching

Description
Type: Switching Power Module Mounting Type: Standard
Size / Dimension: 207*100*45mm Description: 2000W Switching Power Module
Efficiency: 95% Power (Watts): 2000W
Voltage - Output: ±80V Voltage - Input: AC200-240V
Current - Output (Max): 11A Number Of Outputs: 1
Highlight:

5-Way Power Supply Module

,

AC DC Converters Power Supply Module

,

2000W Power Supply Module

2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 0
Products Description

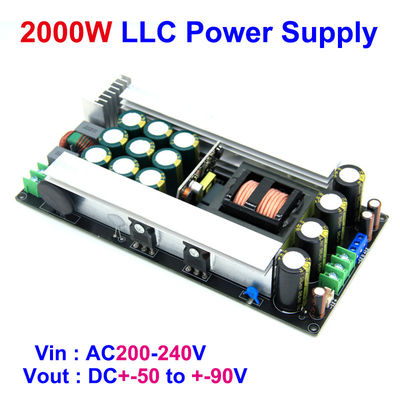

Optional output voltage: Type A: +-50V & +-16V & 16V Type B: +-55V & +-18V & 18V Type C: +-60V & +-20V & 20V Type D: +-65V & +-16V & 16V Type E: +-70V & +-18V & 18V Type F: +-75V & +-19V & 19V Type G: +-80V & +-20V & 20V Type H: +-85V & +-19V & 19V Type J: +-90V & +-20V & 20V Specifications:  - Input voltage: AC200-240V - Output: Main ±80V (11A); Auxiliary ±12V (100mA); Independent 12V (100mA) - Voltage regulation accuracy: ±3% of main no-load, ±10% of load; auxiliary, independent ±1% (at AC220V input) - Continuous power: 1000W (continuous operation at 25°C ambient temperature) - Rated power: 1700W (25 °C ambient temperature can work continuously for about 5 minutes, long-term work plus fan cooling) - Instantaneous power: 2200W (can work continuously for about 1 minute at 25°C ambient temperature) - Conversion efficiency: Max 98% - Dimensions: length, width and height = 207 * 100 * 45mm - Weight: 680g - Since the switching power supply only regulates the main voltage, the current of independent and auxiliary outputs must be less than the current of main voltage output. For example, when the current of main voltage is 10mA, the auxiliary and independent cannot withstand a load of more than 10mA. Packing List: 1* Switching Power Supply NOTE: 1. This product is a bare board with high voltage circuit hazards and must be purchased by someone who can use it. Our store will not bear any consequences caused by use! 2. For commercial purposes, some circuits and components are polished and encrypted, and schematic diagrams, PCBs, and technical support are not provided 3. For long-term high-power use, please add a fan for air cooling. The power supply is equipped with overheating, overcurrent, and short circuit protection. The overcurrent and short circuit protection is locked protection, and the main filter capacitor voltage must be disconnected from the AC power supply and reduced to 0V before starting again. This power supply is a true LLC power supply, with a high-frequency sine wave resonant circuit. It is not an ordinary square wave switching power supply, and is very suitable for use in power amplifiers with good results 4. Each power supply is tested before shipment, and our store is not responsible for any burnt transformers, pipes, or ICs. If maintenance is required, we will bear all costs ourselves! The board is constantly upgraded and revised, and the component circuit may be modified.
2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 1
2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 2
2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 3
2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 4
2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 5
Contact us
Wechat：
zq13827494627
WhatsApp：
+86-13827494627
Skype：
alvacheng1
E-mail：
leo@creatall.com
Company Profile
2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 6
Certificates & Production Processes
2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 7
2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 8
2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 9
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 10
2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 11
2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 12
2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 13
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 14
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
2000W LLC Dual DC 5-Way Power Supply Digital Audio Amplifier Module AC DC Converters for Board Mount 50/60/70/80/90V Switching 15
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
