Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power

Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power

Large Image :  Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power

Product Details:
Place of Origin: China
Brand Name: Creatall
Model Number: CA-300WS
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: $2.75/pieces 50-499 pieces
Contact Now

Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power

Description
Mounting Type: Standard Description: DC-DC Buck Converter
Output Current: 20A(max.), 15A(suggested) Efficiency: 95%(24V To 12V, 20A)
Output Ripple: ≤50mV Wiring Method: Terminal
Highlight:

20A DC-DC Buck Converter Module

,

300W DC-DC Buck Converter Module

Contact Us
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 0
Specification
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 1

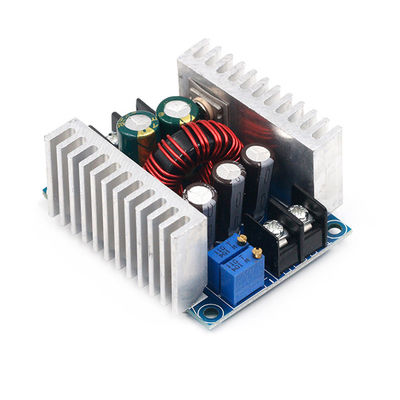

DC-DC Buck Converter Step Down Module 300W 20A Constant Current LED Driver Power Step Down Voltage Module

Description:
With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current.
The efficiency can be up to 96%, measured at 20A, converting 24V to 12V.
It is designed with 75V/80A large current dual MOS tube.
Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output.
Wiring is convenient with these large current 30A screw terminals.
The buck module has 2 heat sink that could enhance heat dissipation.
When there is a big difference between input and output voltage, please decrease power and current.

VO+: Output positive
VO-: Output negative
+IN: Input positive
-IN: Input negative
CV: Output voltage adjustment
CC: Output current adjustment
EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
When input and output is common grounded, no-load CV output constant voltage,CC output constant current.
Input Voltage
6V to 40V DC(10V to 40V is suggested)
Output Voltage
1.2V to 36V DC
Output Current
20A(max.), 15A(suggested)
Efficiency
95%(24V to 12V, 20A)
Output Ripple
≤50mV
Wiring Method
Terminal
Short Circuit Protection
Self-recovery(cannot short circuit for long time)
Size
60 x 53 x 27mm / 2.36 x 2.08 x 1.06"
Products Description
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 2
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 3
Contact us
Wechat：
zq13827494627
WhatsApp：
+86-13827494627
Skype：
alvacheng1
E-mail：
leo@creatall.com
Company Profile
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 4
Certificates & Production Processes
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 5
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 6
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 7
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 8
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 9
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 10
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 11
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 12
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 13
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 14
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 15
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 16
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
Constant Current 300W 20A DC-DC Buck Converter Step Down Module for LED Driver Power 17
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
