2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation

2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation
2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation

Large Image :  2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall
Model Number: SX1308
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: $0.28/pieces 50-999 pieces
Contact Now

2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation

Description
Mounting Type: Standard Description: Boost Converter Board
Operating Temperature: 0-85 Dissipation Power: 1w
Supply Voltage: 3-5v Condition: New
Origin: Mainland China Product Name: DC-DC SX1308 2A Power Module
Highlight:

DC-DC SX1308 Power Supply

,

DC-DC Voltage Boost Converter Module

Contact Us
2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 0
Products Description

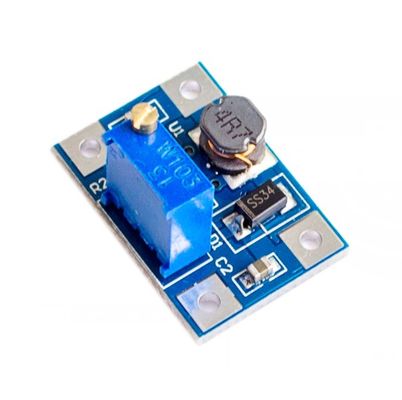

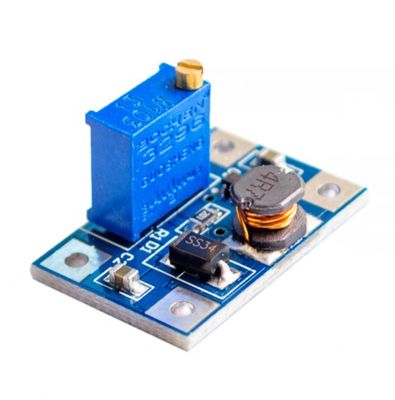

LC SX1308 booster module carrying SX1308 chip, its packagnig is small, and high efficiency. The output power can be adjust,
maximum can arrive 28V and its interior integrate the lowest RDS internal resistance 100mΩ metal oxide semiconductor field effect
transistor (mosfet), which can realize large current output of up to 2A. It widely used in 3G network products, digital products,
mobile power supply,battery power supply, equipment, etc.

Features:
Oscillation frequency 1.2MHz
efficiency is as high as 95%
Circuit has short circuit protection, overheating protection function
10k to adjust potentiometer, adjust the output voltage

Parameters:
Maximum input voltage: DC 2-24V
Maximum output voltage: DC 2-28V
Switching frequency: 1.2MHz
Maximum current output: 2A
2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 1
2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 2
Contact us
Wechat：
zq13827494627
WhatsApp：
+86-13827494627
Skype：
alvacheng1
E-mail：
leo@creatall.com
Company Profile
2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 3
Certificates & Production Processes
2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 4
2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 5
2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 6
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 7
2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 8
2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 9
2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 10
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 11
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
2A Step-UP Voltage Boost Converter Module for DC-DC SX1308 Power Supply Implementation 12
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
