Adjustable Voltage Regulator LM2596S DC-DC Converter Board for Step Down Power Supply

Large Image : Adjustable Voltage Regulator LM2596S DC-DC Converter Board for Step Down Power Supply

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	lm2596
Model Number:	lm2596s

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$0.30 - $0.39/pieces

Contact Now

Adjustable Voltage Regulator LM2596S DC-DC Converter Board for Step Down Power Supply

Description

Mounting Type:	Standard	Description:	DC-DC Step Down Power Module
Model:	LM2596	MOQ:	100

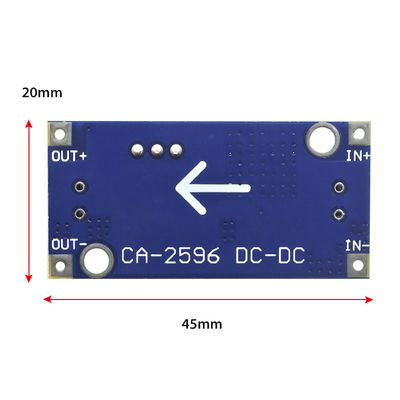

Voltage:	Input :3.2-40V / Output : 1.5-35V	Size:	452015mm
Type:	Voltage Regulator	Input Type:	DC
Highlight:	DC-DC Converter Board , Step Down Power Supply , LM2596S DC-DC Converter Board

Contact us
Wechat：	alvacheng88	Mobile：	+86-13689587416
Skype：	alvacheng1	E-mail：	leo@creatall.com

Specification

LM2596 Universal LED LCD TV power supply module DC/DC adjustable step down power supply module board

Input voltage range: DC 3.2V～40V (The input voltage must be 1.5V higher than the output voltage. It cannot be boosted). Output voltage range: DC 1.2V～35V voltage is continuously adjustable, high efficiency (maximum 92%), maximum output current is 3A.

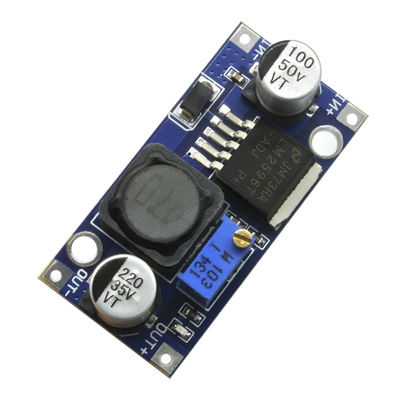

Advantage: Use SMD aluminum electrolytic capacitors, high-Q and high-power inductors. In addition, each board has undergone a technical test to be done individually. Specially designed 2 screw fixing holes. The four input and output pads are all provided with pin header fixing holes.

Precautions: For long-term work, it is recommended to use the current within 2.5A, and add a heat sink (over 10w output). Because it is a step-down module, in order to ensure the stability of the output, please keep the limit of 1.5V drop.

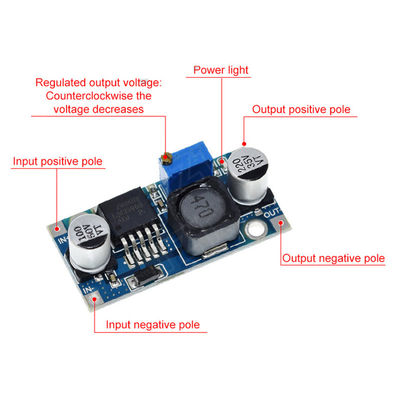

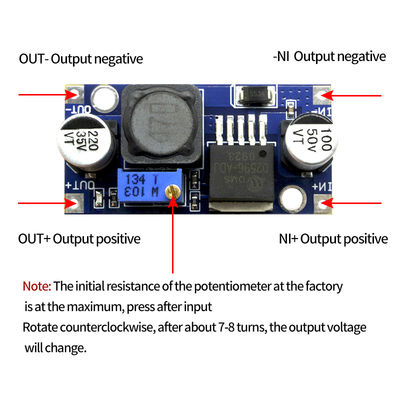

Voltage regulation: Connect the power supply (3～4V) to adjust the blue potentiometer knob (usually turn clockwise to boost, counterclockwise to buck) and use a multimeter to detect until the output voltage reaches the required voltage.

Scope of application

1. Vehicle-mounted stabilized power supply, only need to connect the input terminal of this module to the car cigarette lighter to supply power, you can adjust the potentiometer, the output voltage can be adjusted arbitrarily between 1.25-30V, charging lights for your mobile phone, MP3, MP4, PSP Many devices are supplied with power, which is very simple and convenient. 2. Supply power to electronic equipment. When the equipment needs 3-35v power supply and there is no corresponding voltage power supply in hand, this module can be used to conveniently adjust the voltage to the required voltage to solve the problem. 3. System working voltage test. This module can be used to debug the working voltage range of various voltage test systems when doing projects, which is very easy and convenient.

Company Profile

Certificates & Production Processes

Packing & Delivery

1. Normal packaging.

2. Export carton.

3. Custom packing.

4. All orders are will be shipped within 3-25 days after customers confirmed payment.

Payment&Shipping

PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.

Customer Reviews

This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.

FAQ

Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
