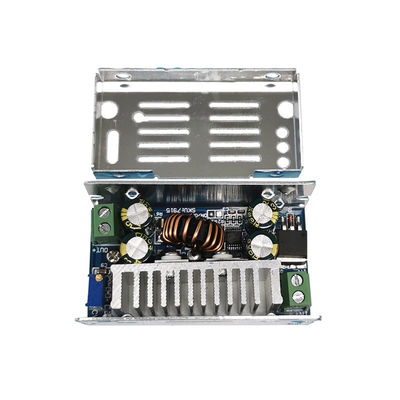

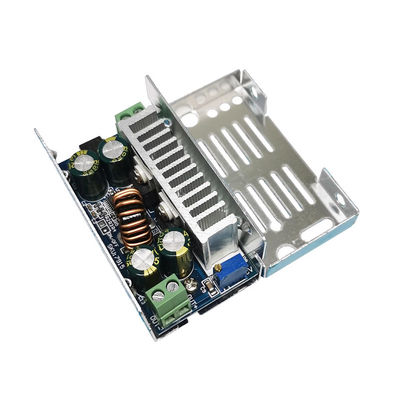

200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting

200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting
200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting

Large Image :  200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: 200W 15A
Payment & Shipping Terms:
Price: $7.10/pieces 1-99 pieces
Contact Now

200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting

Description
Mounting Type: Standard Description: DC-DC Buck Module
Product Name: CreatAll
Highlight:

200W DC-DC Buck Module

,

15A DC-DC Buck Module

,

8-55V DC-DC Buck Module

Products Description
This power module belongs to the DC step-down switching power supply, the input voltage should always be greater than the output voltage and the day at least 1V differential voltage, input power = output power + loss (principle of conservation of energy) Circuit design is perfect, ultra-high efficiency up to 94% low ripple! 200W DC-DC high-voltage high-power synchronous buck module new on the shelves, 8-60V wide voltage input 1-36V stepless adjustable output, the maximum peak output current of 15A new on the shelves photographed to send the aluminium shell!

Product Parameter：
Module Model：200W15A step-down adjustable power supply module
Power Protection：Over-current protection (output current should exceed the maximum sampling current (15A) before protection) Reverse connection protection (reverse connection will not burn)

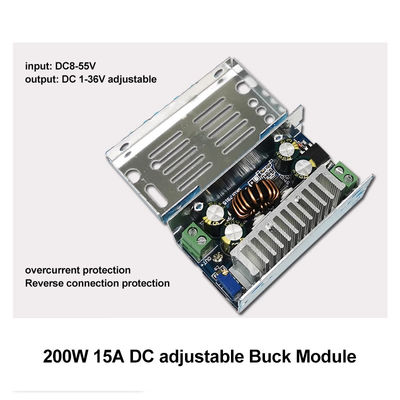

Input Voltage：8-55V (limit 60V, please leave a margin)
Output Voltage：1-36V continuously adjustable (factory default about 12V)
Output Current：Normal 10A maximum 15A current is the maximum current under specific conditions (measured 12 under 5V) The actual output current size is not fixed, and the input and output pressure difference related to temperature, the actual output current size is not fixed, and the input and output pressure difference related to temperature.
Output Power：Well-ventilated natural heat dissipation power for a long time for 100W, strengthen the heat dissipation up to 200W, such as long-time work, please leave room to pay attention to the temperature rise and do a good job of heat dissipation
Operating Frequency：180KHz
Conversion efficiency：Maximum 94% (efficiency and input and output voltage difference, output current related)

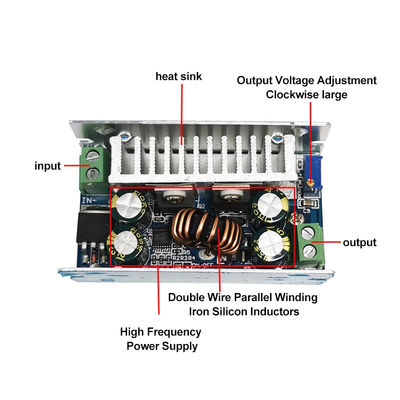

Wiring Mode：High-current terminals, no welding, IN+ for input positive, IN- for input negative OUT+ for output positive, 0UT- for output negative

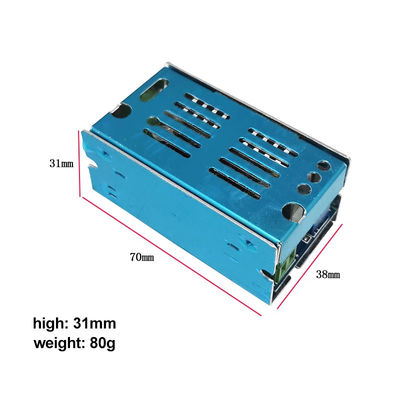

Module Nature：Non-isolated buck module Operating Temperature：-10~+85 degrees Aluminium case dimensions：Length, width and height 70mm*38mm*31mm Module Net Weight：80g
Contact us
Wechat：
alvacheng88
Mobile：
+86-13689587416
Skype：
alvacheng1
E-mail：
leo@creatall.com
200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 0
200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 1
200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 2
200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 3
Company Profile
200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 4
Certificates & Production Processes
200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 5
200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 6
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 7
200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 8
200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 9
200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 10
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 11
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 12
Contact Us
200W DC-DC Buck Module 15A Step-Down Converter 8-55V to 1-36V with Standard Mounting 13
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
