DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module

DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module
DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module

Large Image :  DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: other
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: $1.42 - $1.89/pieces
Contact Now

DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module

Description
Features: Step Down Module Type: Step Down Module

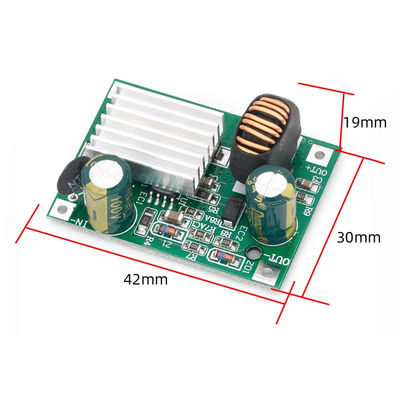

Mounting Type: Standard Size / Dimension: 42*30mm
Description: Step Down Module
Highlight:

3A Step Down Module

,

Board Mount DC DC Converters

,

120V DC DC Converters

Products Description

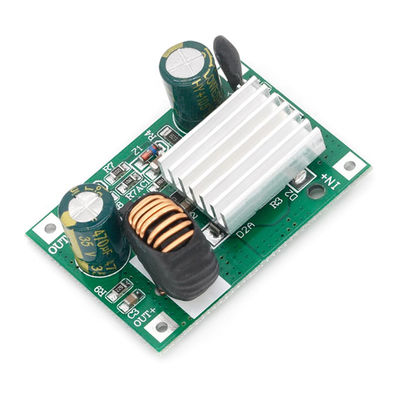

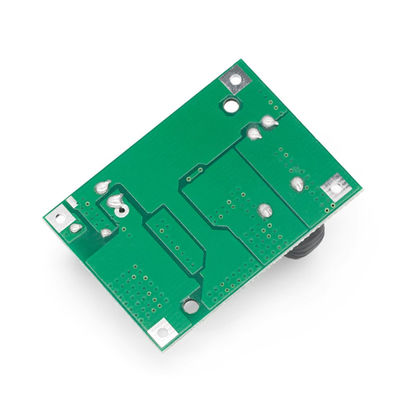

DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module 0
Module Description
1.Wide input voltage:9V-120V 2.Minimum voltage difference between input voltage and output voltage is 4V(DC9V-120V for 5V output, DC16V-120V for 12V output). 3. Output voltage 12V/5V selectable (other voltages, please contact us to order) 4. Output current maximum 3A (i.e. constant current value of 3A, when the custom voltage is greater than 12V output current is less than 3A, the power is not recommended more than 30W) 5. Typical operating frequency: 140KHZ 6. High efficiency: up to 95% (the smaller the pressure difference, the higher the efficiency) 7. Light load frequency reduction, improve light load efficiency 8. Small standby current 9. Built-in over-temperature, over-current, output short-circuit protection 10. Built-in soft start 11. Constant voltage and constant current output 12. Operating temperature: industrial grade (-40 ° C to +85 ° C) 13.Module volume:40*30*19mm

How to use？
Connect the connecting wires between the module and the power supply first, and then power up the module. Remember! Remember! (If the input side of the wiring with electricity, it is easy to fire phenomenon, especially when the input power supply voltage is high, and even burn the module's pads.) Select the appropriate power supply power, use a multimeter or voltmeter to measure the output voltage of the module 2, the output voltage is consistent with the voltage of the equipment required to use the electrical equipment or (load) connected to the output side of the module.
DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module 1
DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module 2
DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module 3
Contact us
Wechat：
zq13827494627
WhatsApp：
+86-13827494627
Skype：
alvacheng1
E-mail：
leo@creatall.com
Company Profile
DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module 4
Certificates & Production Processes
DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module 5
DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module 6
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module 7
DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module 8
DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module 9
DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module 10
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module 11
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
DC DC Converters Board Mount 9V 12V 24V 36V 48V 72V 84V 120V to 5V 12V 3A Step Down Module 12
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
