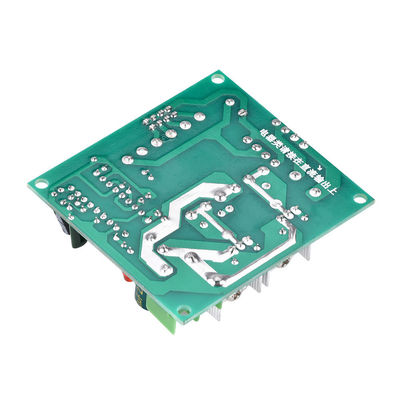

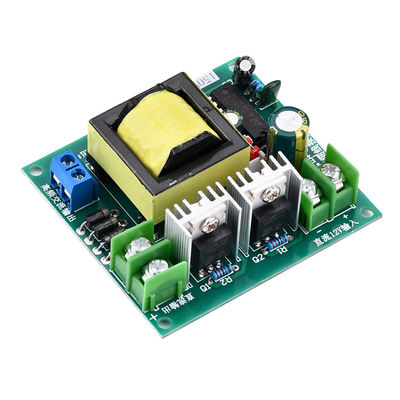

12V To 110V 200V 220V 280V 150W Inverter Boost Board Transformer for Battery Inverter

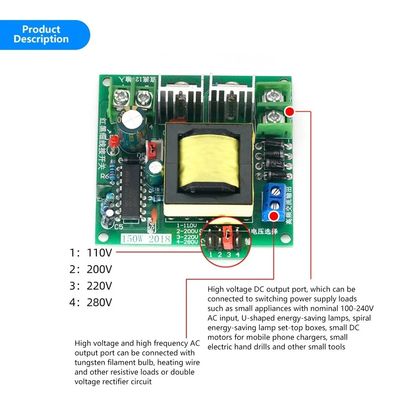

Product parameters: High frequency AC output port: It is only suitable for resistive loads, such as ordinary household incandescent bulbs (tungsten filament bulbs), ordinary soldering irons, or connected to voltage doubling rectifier circuits. Do not measure this output port when measuring the output voltage, because these Voltmeter are designed to measure 50Hz household voltage, not high-frequency voltage, which will cause huge measurement errors. DC output port: It can use a multimeter to measure voltage in the DC range, and can carry switching power supply loads (appliances with input voltage marked as AC100-240V can be used), resistive loads. 150W inverter battery DC12V to AC220V boost transformer power conversion circuit board. Switch: The red and black lines on the board are switches used to control the presence or absence of high-voltage output. Input voltage: 12V, limited to 8V for low input voltage, and 14.8V for high input voltage. Since there is no input fuse on this board, please add a fuse yourself. It is recommended to add a 15A fuse (lithium battery power supply and switch power supply, DC power supply, which can cause the pipe to overheat and burn out when the power supply is insufficient). The output is unstable, and the input should ensure sufficient power (current), otherwise the pipe may be burned out. Output voltage: 110V 200V 220V 280V Output waveform: high-frequency square wave or DC (unfiltered) Output power: 150W (please add a fan for heat dissipation above 100W) No-load 12V terminal current: 250 mA Working frequency: 27KHZ Protection: No protection, please add fuses yourself when using Precautions: Scope of available electrical appliances: Switching power supply loads, generally labeled with input voltage of 100-240V, can be used, such as non counterfeit mobile phone chargers, set-top boxes, DVDs, LED lights (with constant current drive, some can be used, some LED lights cannot be used, and can only be connected to the DC output port, never to the high-frequency AC output port), ordinary tungsten filament bulbs, small hand electric drills, energy-saving lights, Ordinary non adjustable electric soldering irons require high voltage double voltage rectification circuits, LCD televisions connected to DC output ports, and so on. Scope of Unavailable Electrical Appliances: Iron core transformers, such as audio systems using iron core transformers, temperature regulating soldering irons, dimming lamps, AC motor loads such as electric fans. Cheap resistive and capacitive buck LED lamps (such as LED night lights, straw hat LED lamps, and plastic shell LED lamps)
