XL6009E ICs Product Category Standard Mounting DC-DC Booster Board for Advanced Power

Large Image : XL6009E ICs Product Category Standard Mounting DC-DC Booster Board for Advanced Power

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	creatall
Model Number:	CA-6009

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$0.62/pieces 10-99 pieces

Contact Now

XL6009E ICs Product Category Standard Mounting DC-DC Booster Board for Advanced Power

Description

Mounting Type:	Standard	Description:	Standard
Model:	XL6009	Size:	43*22MM
Voltage:	Input 3-32v Output 5-35v
Highlight:	Advanced Power DC-DC Booster Board , Standard Mounting DC-DC Booster Board , XL6009E ICs Booster Board

Products Description

Contact us
Wechat：	alvacheng88	Mobile：	+86-13689587416
Skype：	alvacheng1	E-mail：	leo@creatall.com

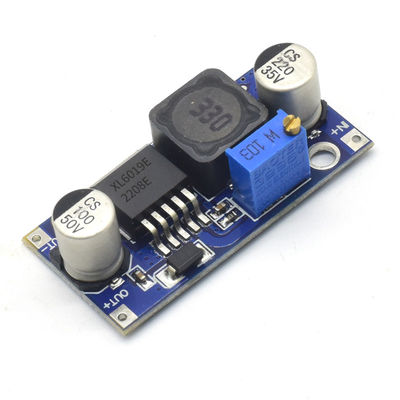

XL6009 LED LCD TV backlight display module DC-DC Output Adjustable step-up power supply module board

Brand: CREATALL
Model: XL6009
Size :43mm * 21mm * 14mm

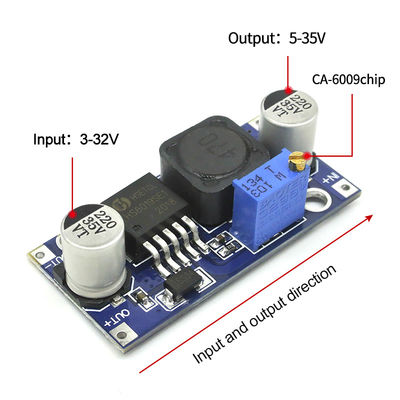

Input :3V~32V Output :5V~35V Output current :4A(MAX) Conversion efficiency ::<94% On-off level:400KHz Operating temperature :-40°C~ +85°C Load capacity :士0.5% Voltage regulation: 士0.5%

Type: Other power modules
Purpose: LCD TV voltage conversion voltage conversion step-down module
Type: LCD module

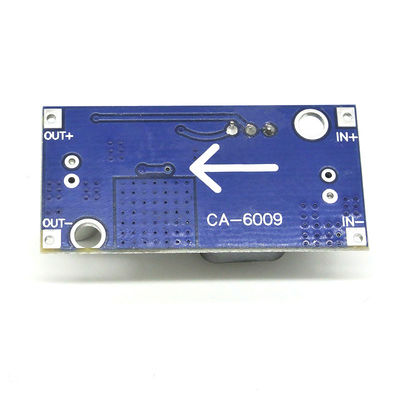

Our products are independent research and development and production, sophisticated technology, each products are through strict test before sent to the user. And can meet the demand of batch. 32V - 3V input /output highest 35V Output voltage range: 4V to 38V dc voltage continuously adjustable, high efficiency (96%) of the maximum output current for 4A. Advantage: use double thickening black oil PCB with high quality, all use imported SMD aluminum electrolytic capacitors, high Q value power inductors. And every piece of plate passes through the strict technical test, test completely using separate antistatic protection bag packaging. Note: Does this modules relative to the LM2577 triode mode conversion efficiency is higher Does this module is adjustable booster module, can by adjusting the precision of modules above circle more adjustable potentiometer To change the output voltage. The highest output voltage is 38 v. Chronological booster, reverse-time step-down. Does the module above marked GND (input), the IN + (input), GND (output), the OUT + (output) Does working temperature: : industrial grade 40 to + 85 (-) (ambient temperature more than 40 degrees, please reduce power use, or enhance heat dissipation)

Company Profile

Certificates & Production Processes

Packing & Delivery

1. Normal packaging.

2. Export carton.

3. Custom packing.

4. All orders are will be shipped within 3-25 days after customers confirmed payment.

Payment&Shipping

PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.

Customer Reviews

This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.

FAQ

Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
