3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596

3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596

Large Image :  3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: CA-2596
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $0.60/pieces 10-99 pieces
Contact Now

3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596

Description
Features: 3A 4.5-40V Adjustable Application: Lcd
Type: Dc Converter Board, Dc Step Down Power Module Series: Dc Converter Board

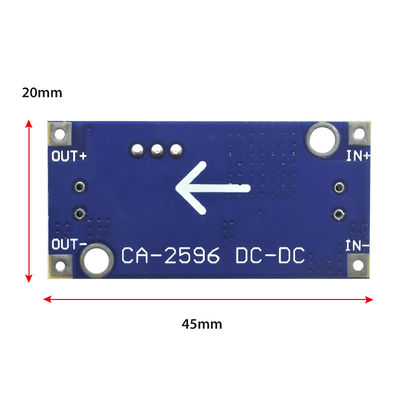

Mounting Type: Standard Size / Dimension: 45*20*15mm
Description: Dc Step Down Power Module Model: LM2596
MOQ: 100 Voltage: Input :3.2-40V / Output : 1.5-35V
Highlight:

LM2596 Power Supply Module

Contact us




Wechat：
alvacheng88
Mobile：
+86-13689587416
Skype：
alvacheng1
E-mail：
leo@creatall.com
Specification

LM2596 Universal LED LCD TV power supply module DC/DC adjustable step down power supply module board


Input voltage range: DC 3.2V～40V (The input voltage must be 1.5V higher than the output voltage. It cannot be boosted). Output voltage range: DC 1.2V～35V voltage is continuously adjustable, high efficiency (maximum 92%), maximum output current is 3A.
Advantage: Use SMD aluminum electrolytic capacitors, high-Q and high-power inductors. In addition, each board has undergone a technical test to be done individually. Specially designed 2 screw fixing holes. The four input and output pads are all provided with pin header fixing holes.
Precautions: For long-term work, it is recommended to use the current within 2.5A, and add a heat sink (over 10w output). Because it is a step-down module, in order to ensure the stability of the output, please keep the limit of 1.5V drop.

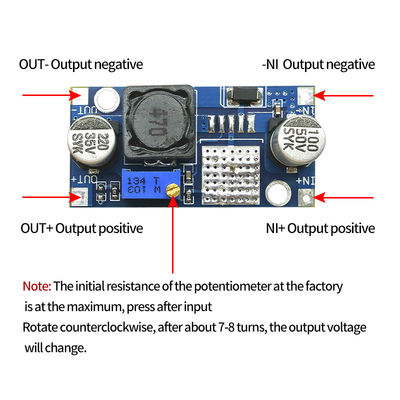

Voltage regulation: Connect the power supply (3～4V) to adjust the blue potentiometer knob (usually turn clockwise to boost, counterclockwise to buck) and use a multimeter to detect until the output voltage reaches the required voltage.

Scope of application
1. Vehicle-mounted stabilized power supply, only need to connect the input terminal of this module to the car cigarette lighter to supply power, you can adjust the potentiometer, the output voltage can be adjusted arbitrarily between 1.25-30V, charging lights for your mobile phone, MP3, MP4, PSP Many devices are supplied with power, which is very simple and convenient. 2. Supply power to electronic equipment. When the equipment needs 3-35v power supply and there is no corresponding voltage power supply in hand, this module can be used to conveniently adjust the voltage to the required voltage to solve the problem. 3. System working voltage test. This module can be used to debug the working voltage range of various voltage test systems when doing projects, which is very easy and convenient.
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 0
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 1
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 2
Company Profile
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 3
Certificates & Production Processes
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 4
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 5
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 6
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 7
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 8
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 9
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 10
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 11
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 12
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 13
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 14
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 15
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 16
Contact Us
3.2-40V Input 1.5-35V Output Adjustable DC to DC Step Down Power Supply Module LM2596 17
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
