Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller

Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller
Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller

Large Image :  Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: boost driver module
Payment & Shipping Terms:
Price: $12.50/pieces 1-99 pieces
Contact Now

Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller

Description
Mounting Type: Standard Description: Boost Driver Module
Type: Boost Driver Module
Highlight:

Solar Panel Controller Boost Driver Module

,

Standard Mounting Type Boost Driver Module

,

18V Lithium Battery Boost Driver Module

Products Description

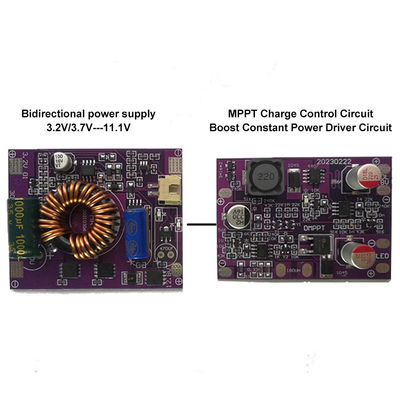

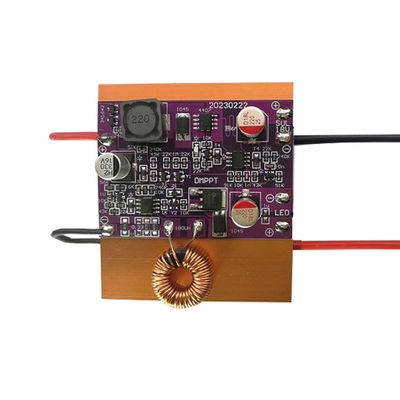

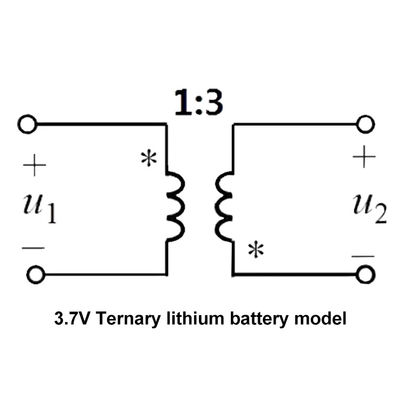

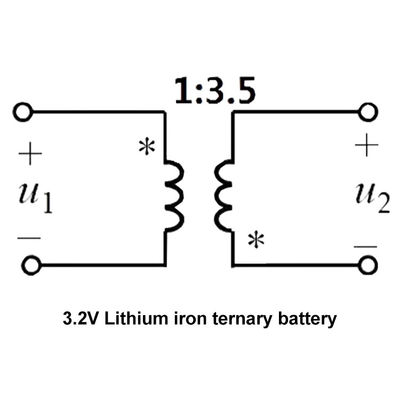

Product Description: Adopting 3.7V ternary cell, or 3.2V lithium iron cell, after conversion efficiency 97% bidirectional power supply, transformed to 11.1V battery pack, improve the working voltage of street light control system. 18V solar module MPPT charge controller, output 12.6V, limiting the maximum working current 6A, after 3/3.5 times bidirectional power supply expansion to 20A current. Constant power boost driver circuit, boost efficiency 96%, power range 10-50W, constant power design between 15-31V.

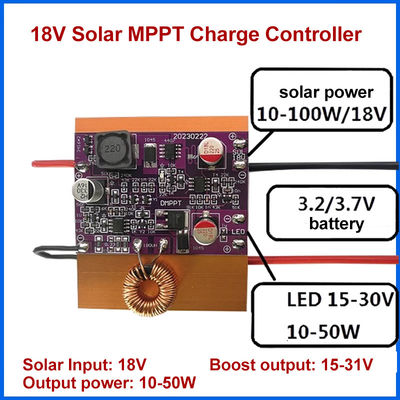

Product Parameters: Solar input: 18V, 10W-150W Charging current: 20A Boost output: 15-31V Output power: 10-50W Charge protection: 4.25V, discharge protection: 3.0V, recovery voltage: 3.2V. Lithium iron models charge protection: 3.65V, discharge protection 2.6V, recovery voltage 3.0V Light control mode: light control function, intelligent power control discharge function, high brightness in the first half of the night, low brightness in the second half of the night.
Contact us
Wechat：
alvacheng88
Mobile：
+86-13689587416
Skype：
alvacheng1
E-mail：
leo@creatall.com
Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller 0
Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller 1
Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller 2
Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller 3
Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller 4
Company Profile
Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller 5
Certificates & Production Processes
Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller 6
Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller 7
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller 8
Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller 9
Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller 10
Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller 11
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller 12
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller 13
Contact Us
Standard Mounting Type Boost Driver Module for 18V Lithium Battery Solar Panel Controller 14
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
