Power Supply Module
Created with Pixso. CA-110A 10A PWM DC Motor Speed Controller 5V 12V Governor Speed Regulator LED Dimmer

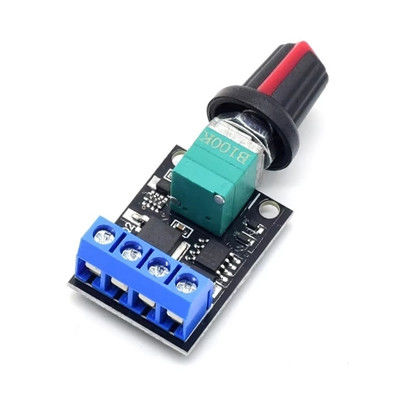

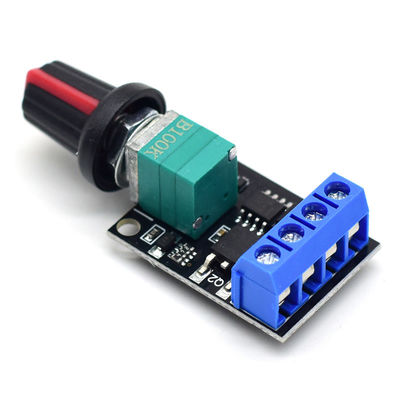

CA-110A 10A PWM DC Motor Speed Controller 5V 12V Governor Speed Regulator LED Dimmer

Brand Name: Creatall
Model Number: CA-110A
MOQ: 100PCS
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
CA-110A PWM DC Motor Speed Controller
Max Voltage:
16V
Minimum Voltage:
5V
Continuous Current:
10A
Short Maximum Current:
20A (less Than 10 Seconds)

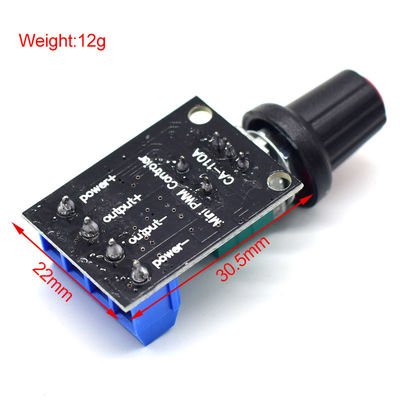

Size:
30.5mm*22mm
Weight:
12g
Supply Ability:
100000pcs
Highlight:

10A PWM DC Motor Controller

,

5V 12V Speed Regulator

,

LED Dimmer Power Supply Module

Product Description

CA-110A 5V 12V 10A Voltage Regulator PWM DC Motor Speed Controller Governor Stepless Speed Regulator LED Dimmer Power Controller





Description:

  • Max voltage: 16V
  • Minimum voltage: 5V
  • Continuous current: 10A
  • Short maximum current: 20A (less than 10 seconds)
  • Speed control mode: PWM stepless speed regulation, can also be used to adjust the light

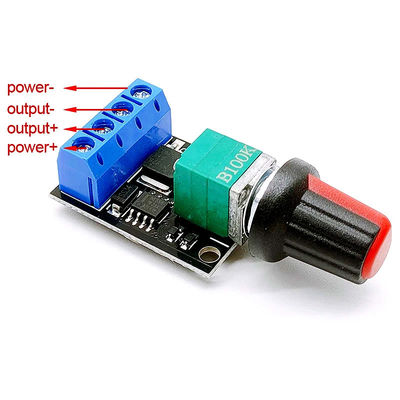

  • Control mode: speed control potentiometer (clockwise clicked open, continue to rotate clockwise from 1% to 99% speed)
  • Duty cycle: 0%-99% (0% position is the state of the switch off when the potentiometer is most on the left).
  • When the current is switched on, the 0.002A (long time no need to switch off the governor is no current).
  • Efficiency: the maximum efficiency is as high as 98%.
  • Volume: long 3cm (excluding potentiometer), wide 2cm, high 1.4cm
  • If you are using the speed control (dimming) to do the product, the shop can provide free
  • Custom service, can be in accordance with the requirements of the customer to modify the shape of the circuit board, installation
  • Mode, current and voltage parameters, add other functions, etc



Note:

  • that the governor is mainly used in motor speed control, if you are used to LED dimming, must ensure that the LED can also work in direct power supply, the dimming range of the speed governor is from LED to LED directly connected to the power supply is completely extinguished between dimming, if LED is directly connected with a power that will burn through dimmer the dimming is burned, which typically requires a series current limiting resistor, if you don't know how much resistance can contact customer service.
