CA-103A PWM DC Motor Speed Controller 6V 12V 24V 28V 3A Speed Switch 1203BK

CA-103A PWM DC Motor Speed Controller 6V 12V 24V 28V 3A Speed Switch 1203BK
CA-103A PWM DC Motor Speed Controller 6V 12V 24V 28V 3A Speed Switch 1203BK CA-103A PWM DC Motor Speed Controller 6V 12V 24V 28V 3A Speed Switch 1203BK CA-103A PWM DC Motor Speed Controller 6V 12V 24V 28V 3A Speed Switch 1203BK CA-103A PWM DC Motor Speed Controller 6V 12V 24V 28V 3A Speed Switch 1203BK

Large Image :  CA-103A PWM DC Motor Speed Controller 6V 12V 24V 28V 3A Speed Switch 1203BK

Product Details:
Place of Origin: China
Brand Name: Creatall
Certification: CE
Model Number: CA-103A
Payment & Shipping Terms:
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100000pcs
Contact Now

CA-103A PWM DC Motor Speed Controller 6V 12V 24V 28V 3A Speed Switch 1203BK

Description
Product Name: CA-103A Motor Speed Controller Voltage: DC6-28V
Speed Range: 0-100% Size: 49.7mm*32mm
Weight: 23.1g
Highlight:

PWM Motor Speed Controller Speed Switch

,

28V PWM DC Motor Speed Controller

,

12V PWM DC Motor Speed Controller

CA-103A 3A PWM DC Motor Governor 6V 12V 24V 28V Speed Control Switch 1203BK

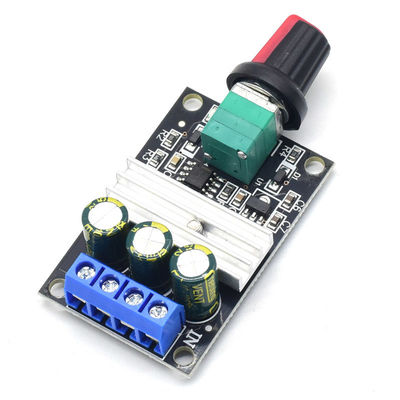

The 1203BK DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). It provides a continuous current of 3A to your DC motor or other DC load. Besides, the circuit also includes a 3A fuse, with reverse connection of power supply and control the forward or reverse direction and the stop of DC motor by switch.


Features:
- Color: As the pictures show.
- Material: Metal.
- Size: 5 * 3.2 * 1.5cm.
- The input power range is DC6-28V.
- Control the forward or reverse direction and the stop of DC motor by switch.
- Potentiometer with switch function.
- The switch cable length 15cm.

Operating instruction:
Before you attempting to wire the controller, make sure that the power is off.

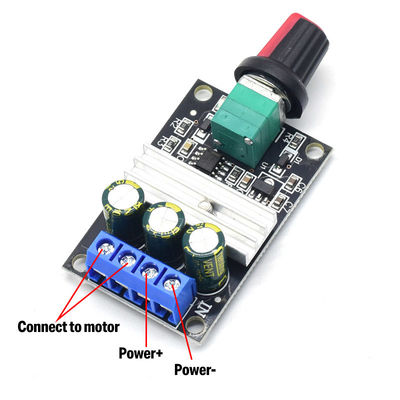

1. Connect wires refer to the wiring diagram.
2. Turn on the power, and adjust the potentiometer.
3. The LED indicates the power up and the speed of motor.
Warning:Do not reverse positive and negative power loads. This will damage the controller!
