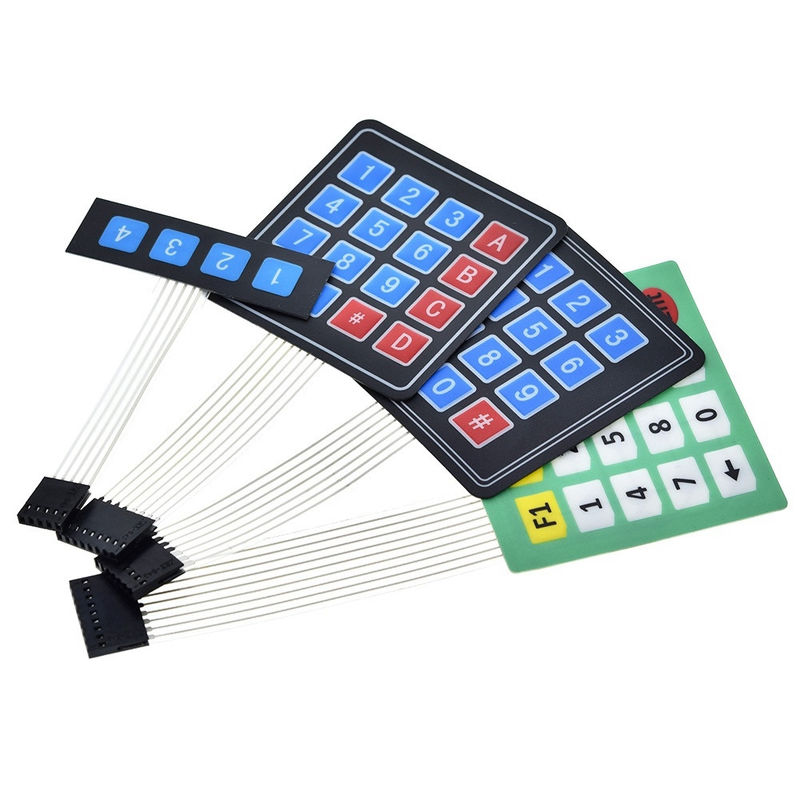

16 Key Membrane Switch Keypad 4 * 4 Matrix Keyboard For DIY KIT

16 Key Membrane Switch Keypad 4 * 4 Matrix Keyboard For DIY KIT
16 Key Membrane Switch Keypad 4 * 4 Matrix Keyboard For DIY KIT 16 Key Membrane Switch Keypad 4 * 4 Matrix Keyboard For DIY KIT 16 Key Membrane Switch Keypad 4 * 4 Matrix Keyboard For DIY KIT 16 Key Membrane Switch Keypad 4 * 4 Matrix Keyboard For DIY KIT 16 Key Membrane Switch Keypad 4 * 4 Matrix Keyboard For DIY KIT

Large Image :  16 Key Membrane Switch Keypad 4 * 4 Matrix Keyboard For DIY KIT

Product Details:
Place of Origin: China
Brand Name: creatall
Model Number: 16 Keyboard
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Contact Now

16 Key Membrane Switch Keypad 4 * 4 Matrix Keyboard For DIY KIT

Description
Storage Temperature: +15°- +35° Withstand Voltage: 250V Rms.(50-60Hz Lmin)
Panel Size: 75*85mm Insulation Resistance: 100M Ω 100V
Storage Humidity: 70-90 Length: 18CM
Highlight:

16 Key Membrane Switch Keypad

,

Membrane Switch 4 * 4 Matrix Keyboard

Features:

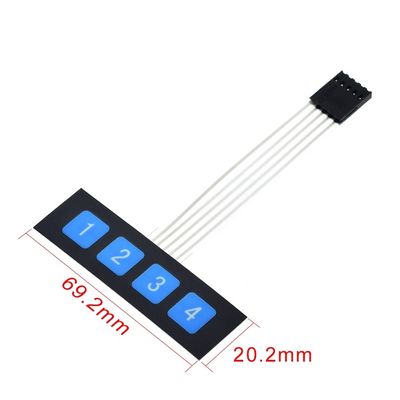

1x4 matrix keyboard:

100% Brand new and good quality
1*4 Matrix membrane switch with FPC circuit
Single chip microcomputer extended keyboard
Precise and professional made, stable performance
Pad Size: 68*20mm
Total Length: 107mm

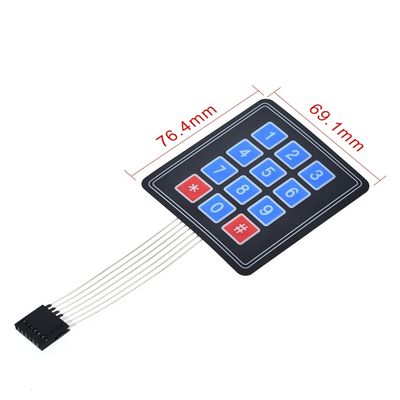

3x4 matrix keyboard:

Pad Size: 69.2 x 76.9 x 0.8mm
Cable Length: 3-1/3" or 86mm (include connector)
Connector: Dupont 7 pins, 0.1" (2.54mm) Pitch
Mount Style: Self-Adherence
Max. Circuit Rating: 35VDC, 100mA
Insulation Spec.: 100M Ohm, 100V
Dielectric Withstand: 250VRms (60Hz, 1min)
Contact Bounce: <=5ms
Life Expectancy: 1 million closures
Operation Temperature: -20 to +40 °C

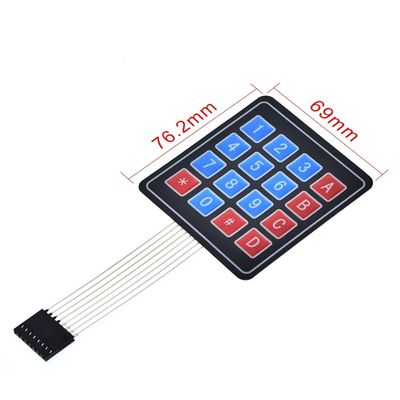

4x4 matrix keyboard:

Contact resistance of 500 ()
Insulation resistance 100M ()
Key Operating Force 150-200N
Rebound time 1 (ms)
Life of 100 million (times)
Operating Temperature 60 ()
1, the electronic characteristics
Circuit Rating: 35V (DC), 100mA, 1W
Contact resistance: 10 ~ 500
(Varies according to the lead lengths and different from those of the material used)
Insulation resistance: 100M 100V
Dielectric Strength: 250VRms (50 ~ 60Hz 1min)
Electric shock jitter: <5ms
Life span: tactile type: one million times
2, the mechanical properties
Operating pressure: Touch feeling: 170 ~ 397g (6 ~ 14oz)
Switch travel: touch-type: 0.6 ~ 1.5mm
3, the environment parameters
Operating temperature: -40 to +80
Storage temperature: -40 to +80
Temperature: from 40,90% to 95%, 240 hours
Vibration: 20G, max. (10 ~~ 200Hz, the Mil-SLD-202 M204.Condition B)

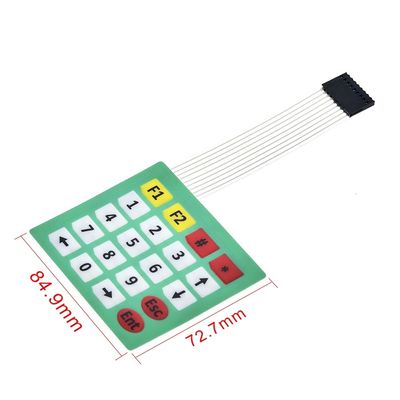

4x5 matrix keyboard:

1. Panel Size: 75*85mm.
2. Length: 18CM.
3. Insulation Resistance:100M Ω 100V.
4. Withstand Voltage:250V Rms.(50-60Hz lmin)
5. Storage Temperature: +15°- +35°.
6. Storage Humidity:70-90.
