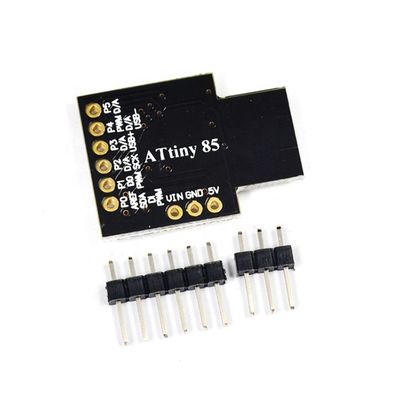

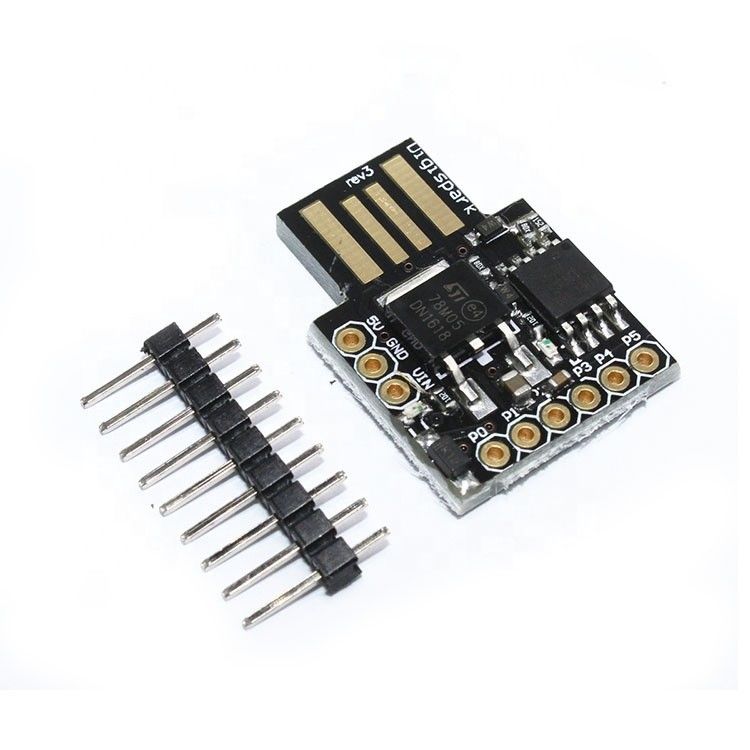

3.3V Development Board Support For ATTINY85/TINY85 Microcontrollers

Large Image : 3.3V Development Board Support For ATTINY85/TINY85 Microcontrollers

Product Details:

Place of Origin:	China
Brand Name:	creatall
Model Number:	ATTINY85

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs

Contact Now

3.3V Development Board Support For ATTINY85/TINY85 Microcontrollers

Description

Support:	Support For The Arduino IDE 1.0 + (OSX/Windows/Linux).	Weight:	3g
Power:	Power Via USB Or External Source Or 7-16 V To 5 V (automatic Selection).	Size:	26.4*18.7mm
Type:	Development Board	Power Supply:	3.3V
Highlight:	3.3V Development Board , Development Board Support ATTINY85 Microcontrollers

Product Description:

1. Support for the Arduino IDE 1.0 + (OSX/Windows/Linux).
2. Power via USB or External Source or 7-16 v to 5 v (automatic selection).
3. The On - board, 150 ma 5 v Regulator.
4. Built - in USB and serial was debugging).
5. 6 I/O Pins (2 are informs the for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB).
6. 8 k Flash Memory (about 6 k after bootloader).
7. The I2C and SPI (vis USI).
8. PWM on 3 pins (more possible with Software PWM).
9. The ADC on 4 pins.
10. The Power LED and the Test/Status leds.
The Specs:

1. Support for the Arduino IDE 1.0+ (OSX/Win/Linux).
2. Power via USB or External Source - 5v or 7-16v (automatic selection).
3. On-board 150ma 5V Regulator.
4. Built-in USB (and serial debugging).
5. 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB).
6. 8k Flash Memory (about 6k after bootloader).
7. I2C and SPI (vis USI).
8. PWM on 3 pins (more possible with Software PWM).
9. ADC on 4 pins.

Features:

Product Name: Development Board
Support: Support For The Arduino IDE 1.0 + (OSX/Windows/Linux).

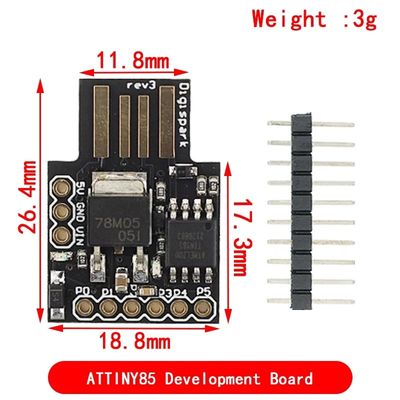

Size: 26.4*18.7mm
Type: Development Board
Weight: 3g
Power Supply: 3.3V
Features:
- Compact size: 26.4*18.7mm
- Lightweight: 3g
- Compatibility with Arduino IDE 1.0 + (OSX/Windows/Linux)
- Support for ATTINY85/TINY85 microcontrollers
- Integrated IIC/I2C and USB interface
- Easy to use and program
- Flexible power supply: 3.3V
- Versatile for various electronic projects

Technical Parameters:

Attributes	Specifications
Product Name	Development Board
Weight	3g
Support	Support For The Arduino IDE 1.0 + (OSX/Windows/Linux).
Power	Power Via USB Or External Source Or 7-16 V To 5 V (automatic Selection).
Type	Development Board
Power Supply	3.3V
Size	26.4*18.7mm
Key Features	Module for Arduino IIC I2C USB ATTINY85/TINY85 Module for Arduino IIC I2C USB ATTINY85/TINY85
