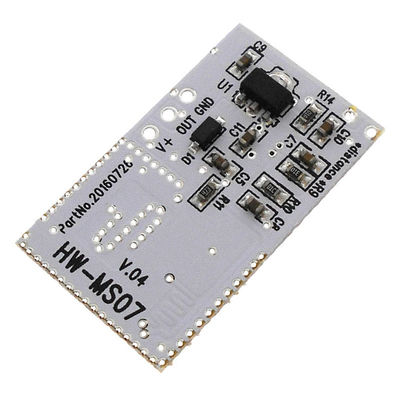

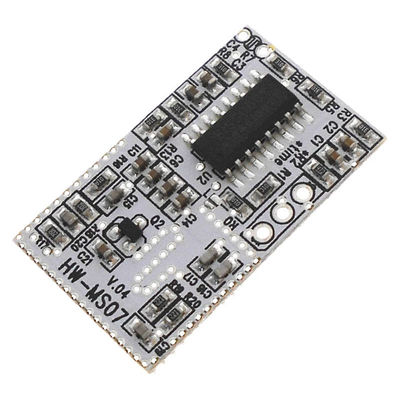

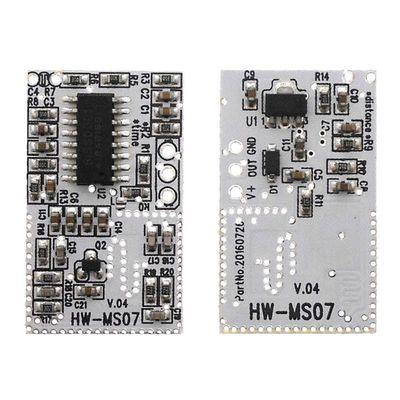

HW-MS07 Smart Sensor Module Microwave Radar Sensor Module 1.5/2 Meters

Brand Name:	creatall
Model Number:	HX711
MOQ:	10pcs
Price:	negotiable
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

china

Description:

Sensor Module

Name:

Smart Sensor Module

Applications:

RGB LED Backlight Control

Data Rates:

400 Kbit/s

OEM:

Yes

Accuracy:

High

Data Security:

High

Supply Ability:

10000pcs

Highlight:

Microwave Radar Sensor Module

1.5/2 Meters Detection Range

Smart Sensor Development Board

Product Description

HW-MS07 Short-Range Intelligent Sensor Switch Microwave Radar Sensor Module Microwave Radar Sensor 0.5/1/1.5/2 MetersProduct Description:
The difference between infrared induction and microwave induction: A: infrared induction B: microwave induction

Inductive object:
A moving person or warm-blooded animal
B moving object

Installation method:
The A-infrared lens needs to be exposed and cannot be blocked by any object. Need to be installed on a stationary object.
B is installed inside the product and can penetrate the outer casing except metal. Need to be installed on a stationary object.

Ambient temperature:
When the ambient temperature and product temperature reach 36 °C or above, the sensing distance will be reduced by about 30%. Working temperature -20-+70°C
B ambient temperature and product temperature have no effect. Working temperature -20-+70°C

Induction direction:
A lateral sensitivity of the sensor is better. Moving positively or backwards to the sensor, the sensitivity is slightly worse.
The direction of B movement does not affect the sensitivity.

Drying factors:
A hot and cold air convection, wind. Power fluctuations, electromagnetic high frequency signals.
B. In the sensing area, multiple modules (except XC508) have power fluctuations and electromagnetic high-frequency signals.

Working power consumption:
A is less than 50 UA, available battery.
B is less than 3MA and requires a power supply.

Installation Environment:
A Avoid installing near window openings, air conditioning ports, vents, and heat sources. Try to prevent rain and direct sunlight.
B Avoid installation in high-frequency, electromagnetic, vibrating objects, empty places, the distance will be attenuated.
