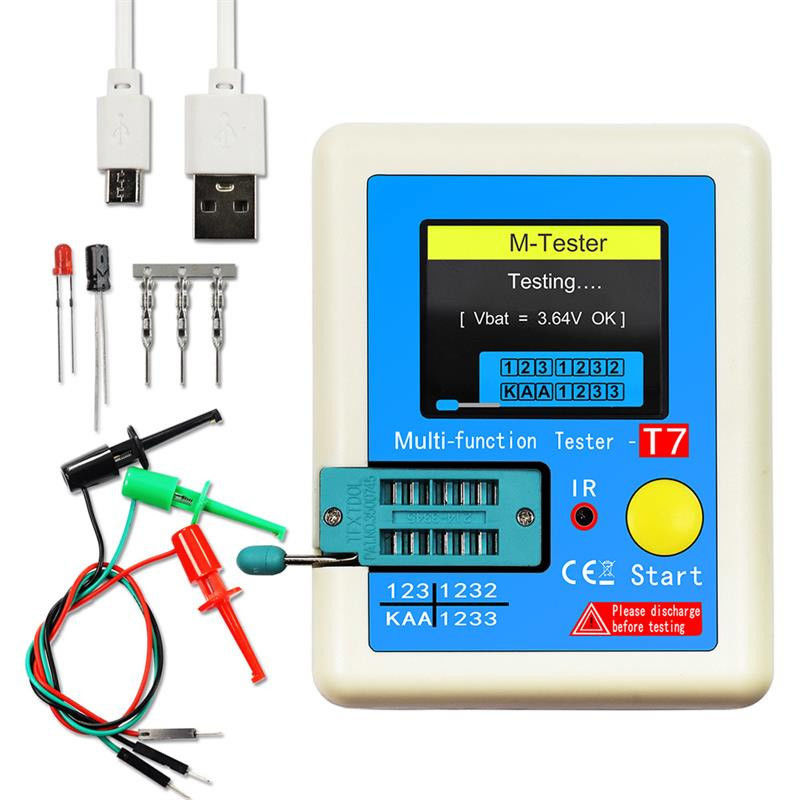

Multifunction TFT Diode Test Capacitor With Multimeter 25pF-100mF

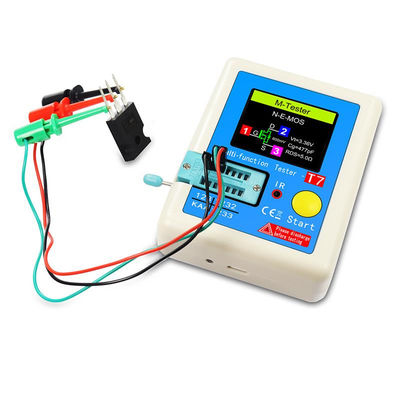

This is a cost-efective and widely used transistor detector. (an be used to detect NPN and PNP transistors, capacitors, resistors, diodes, triodes,Nchannel and p-channel MOSFETs, thyristors, batteries, etc. Can also be used to detect infrared waveforms.

Features:

Can be widely used to detect NPN and PNP transistors, capacitors, resistors, diodes, transistors, N-channel and P-channel MOSFETs,IGBTs, JFETsthyristors, batteries, etc.
Zener diodes can also be detected and have a functional self-calibration.

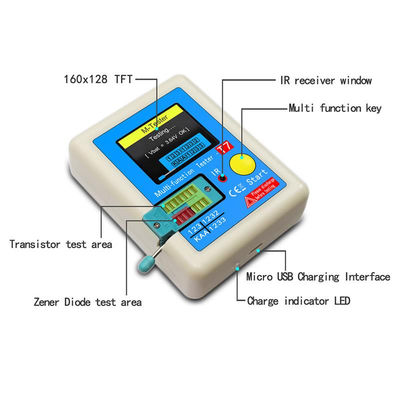

After the detection is completed, point the nfrared remote control at the "R light, and then press the button on the remote control. lf the detectordecodes successfully, the data code and infrared waveform will be displayed. One-key operation, automatic detection and shutdown, you can also press the multi-function button to turn off the detector. Place the pins of the comoonents in the corresponding area. tur the smal handle. the detector wll automatcally detect and the fina resut wil beclearly displayed on the backlit TFT screen.
Instead of the usual black and white display, this detector will display the results in color

Specification:

1. Power Mode: Rechargeable Lithium Battery
2. Display: 3.5*3cm TFT screen
3. Diode Range: < 4.5V
4. Zener diode: transistor detection area: 0.01-4.5V Zener diode detection area: 0.01-30V
5. Triac Range: IGT < 6mA
6. Capacitance: 25pF-100mF
7. Resistance: 0.01-50MQ
8. Inductance: 0.01mH-20H
9. Batterv: 0.1-4.5V
10. Product chip: ATMega328
