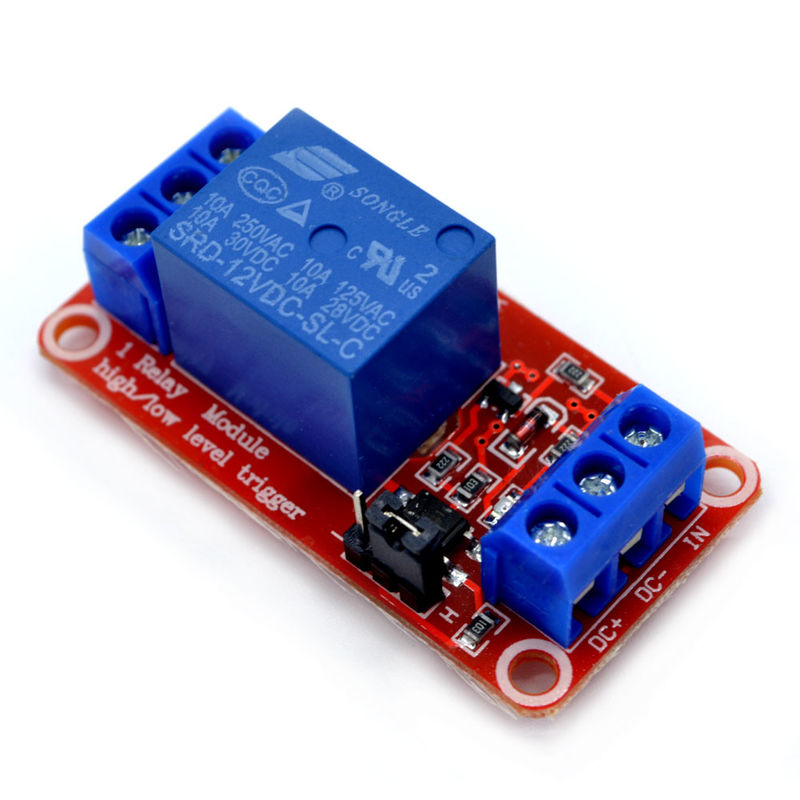

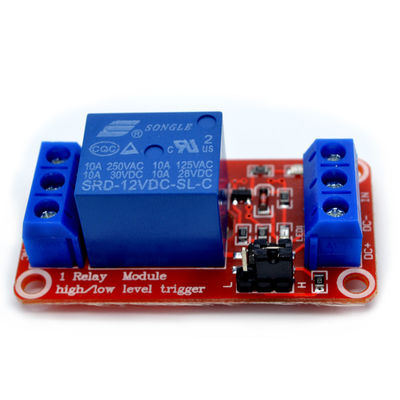

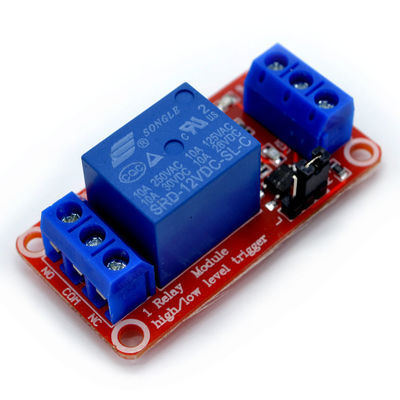

PCB Board Control Relay Module 1 Way 12v Single Channel Relay

PCB Board Control Relay Module 1 Way 12v Single Channel Relay
PCB Board Control Relay Module 1 Way 12v Single Channel Relay PCB Board Control Relay Module 1 Way 12v Single Channel Relay PCB Board Control Relay Module 1 Way 12v Single Channel Relay

Large Image :  PCB Board Control Relay Module 1 Way 12v Single Channel Relay

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall
Model Number: 1 Channel Relay Module
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Delivery Time: 5-8 work days
Supply Ability: 1000 Piece/Pieces per Day
Contact Now

PCB Board Control Relay Module 1 Way 12v Single Channel Relay

Description
Type: Dc Dc Converter Brand: Creatall
Weight: 16g Port: Shenzhen Port,guangzhou Port
Name: Control Relay Module Theory: Voltage Relay
Usage: PROTECTIVE Size: Miniature
Control Mode: Manual/Automatic Working Temperature: -20℃~+60℃
Highlight:

PCB Board Control Relay Module

,

Control Relay Module 1 Way

,

1 Way 12v Single Channel Relay

12V 1 Way Relay Red PCB Board High and Low level Trigger With Optocoupler Isolation 1 Channel Relay Module power supply module

Product Description:

  • Size: 5cm*2.6cm*1.8cm(L*W*H)
  • Pole Number: 1 Channel
  • Operating Voltage: 12V
  • DC+: positive power supply
  • DC-: negative power supply
  • Quiescent Current: 5mA
  • Maximum Current: 80mA
  • Trigger Voltage: 0V-4V(Low level) 4.5V-12V(High level)
  • Trigger Current: 2-4mA
  • Maximum Load: AC250V/10A, DC30V/10A
  • Four Position Hole: 3.1mm(diameter)



Package Included:

     1 x 12V 1Channel Relay Module High and Low level trigger with Optocoupler Isolation
