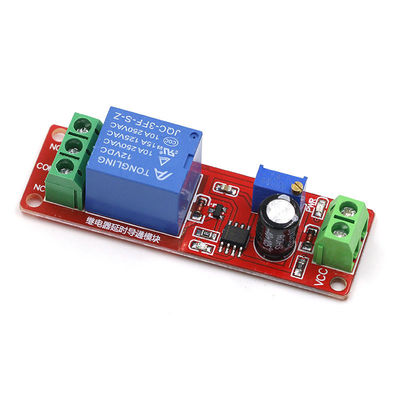

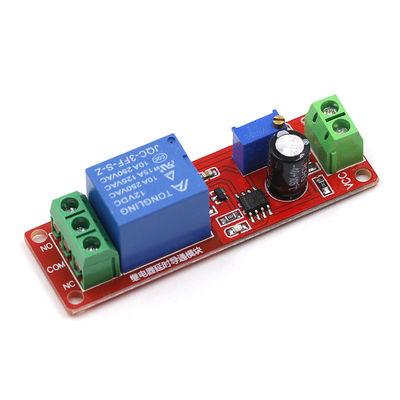

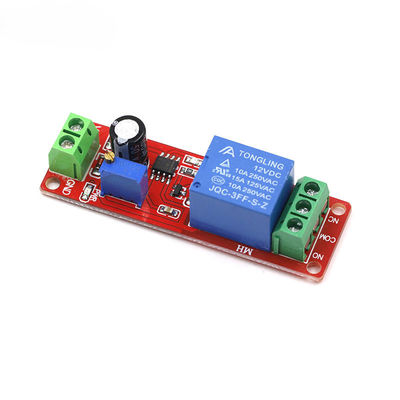

DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch

DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch
DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch

Large Image :  DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall
Model Number: Ne555 Controller Module
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Delivery Time: 5-8 work days
Supply Ability: 10000 Piece/Pieces per Day
Contact Now

DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch

Description
Type: Dc Dc Converter Brand: Creatall
Name: Ne555 Delay Timer Switch Port: Shenzhen Port, Guangzhou Port
Name: Control Relay Module Theory: Voltage Relay
Usage: PROTECTIVE Size: Miniature
Control Mode: Manual/Automatic Working Temperature: -20℃~+60℃
Highlight:

Timer Delay Relay Shield Module

,

Relay Shield Module 10S

,

Arduino Relay Shield Timer Switch

DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch Adjustable Controller Module NE555 power supply module

Product Description:

  • power relay delay pull. Specifically:12v power supply to the relay, the relay will not immediately sucked and status relay outputs are normally open disconnected public,normally closed and public conduction,wait until the delay 1-10s (adjustable),the relay suction and, this time, the relay output status is: normally open and public conduction,normally closed and public disconnected; as long as uninterruptible power module, this state will remain.
  • the delay time is adjustable(0 to 10 seconds)
  • increasing the potential can increase the delay time
  •  increasing the capacitor C1 can increase the delay time
  • with input power indicator
  • with relay indicator
  • can control AC 220V / 10A about equipment. (Maximum control equipment 2000W)
  • with freewheeling protection relay.
  • the delay time formula: T = 1.1RC. For example: a resistor capacitor 100uf 100K
  • T = 1.1 * 100000 * 0.0001 = 11 seconds
