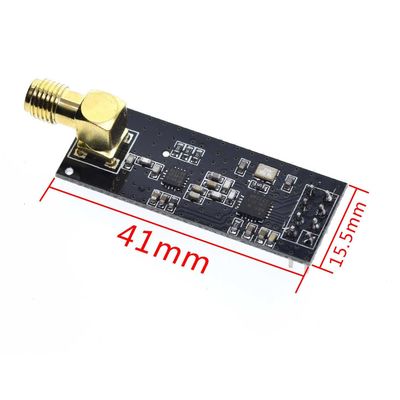

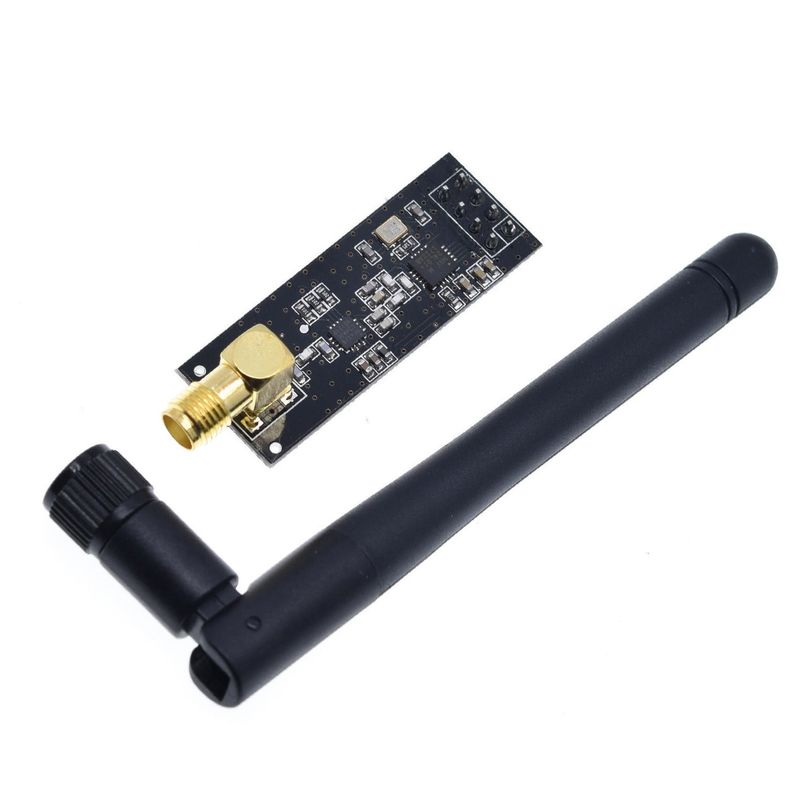

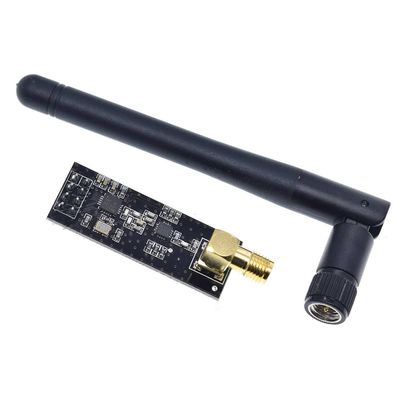

NRF24L01 PA LNA Wireless Wifi Module With Antenna 1000 Meters FZ0410

NRF24L01 PA LNA Wireless Wifi Module With Antenna 1000 Meters FZ0410
NRF24L01 PA LNA Wireless Wifi Module With Antenna 1000 Meters FZ0410 NRF24L01 PA LNA Wireless Wifi Module With Antenna 1000 Meters FZ0410 NRF24L01 PA LNA Wireless Wifi Module With Antenna 1000 Meters FZ0410

Large Image :  NRF24L01 PA LNA Wireless Wifi Module With Antenna 1000 Meters FZ0410

Product Details:
Model Number: Bluetooth Module
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Delivery Time: 5-8 work days
Supply Ability: 10000 Piece/Pieces per Day
Contact Now

NRF24L01 PA LNA Wireless Wifi Module With Antenna 1000 Meters FZ0410

Description
Type: Bluetooth 5.1 Country Of Origin: China
Brand: Creatall Application: Sound
Port: Shenzhen Port,guangzhou Port
Highlight:

PA LNA Wireless Wifi Module

,

Wireless Wifi Module 1000 Meters

NRF24L01+PA+LNA Wireless Module With Antenna 1000 Meters Long Distance FZ0410 We Are The Manufacturer

Product Description:



Voltage: 3-3.6V
Max output power: +20 dBm
Working current in transmit mode: 115mA
Working current in receiver mode: 45mA
Current in mode: 4.2uA
Operating temperature: -20-70 degree
Receiver sensitivity: -92dBm in 2Mbps mode, -95dBm in 1Mbps mode, -104dBm in 250kbps mode
PA growth: 20dB
LAN growth: 10dB
LAN noise figure: 2.6dB
Antenna growth: 2dBI
2M rate: 520m





NRF24L01 PA LNA Wireless Wifi Module With Antenna 1000 Meters FZ0410 0
