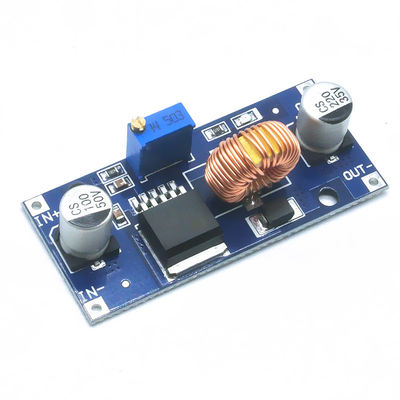

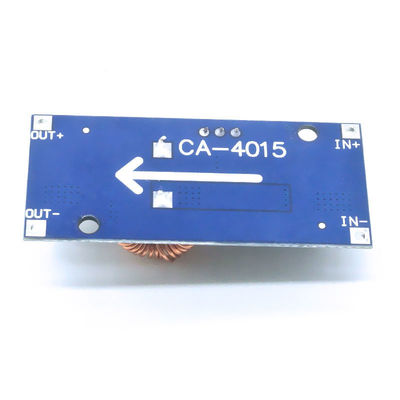

CA-4015 5A DC 4~38V Buck Converter Module Adjustable Step Down High Power High Efficiency

• Module highlights: 5A high power high efficiency low ripple strip power indicator light free heat sink!

performance and characteristics:

• Module nature: Non-isolated step-down module (BUCK)
• Input voltage: 4-38V (Input please try not to exceed 38V)
• Output voltage: 1.25-36V continuously adjustable
• Output current: 0-5A
• Output power: 75W
• Operating temperature: -40~+85 degrees
• Operating frequency: 180KHz
• Conversion efficiency: 96%
• Load adjustment rate: S (I) ≤ 0.8% (input 24V, output 12V, measured when the load changes from 1 to 4.5A) Voltage adjustment rate: S (u) ≤ 0.8% (measured when the voltage changes from 18 to 32V when the output is 12V and 4A)
• Power indicator: Yes Short circuit protection: have (limited current 8A) Overtemperature protection: there is (automatically shut off output after overtemperature) Input backconnection protection: none (if necessary, please insert high current diode in the input string)
• Installation: 2 3mm screws
• Connection mode: Welding, with V-IN as input and V-OUT as output
• output Module size: 54mm long, 23mm wide and 15mm high

Scope of application:

  This module can be used in the input voltage is higher than the output voltage of the step-down field, such as battery, power transformer, DIY adjustable voltage regulator power supply, 24V vehicle pen meter this power supply, industrial equipment step-down, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, 36V to 24V, etc.
