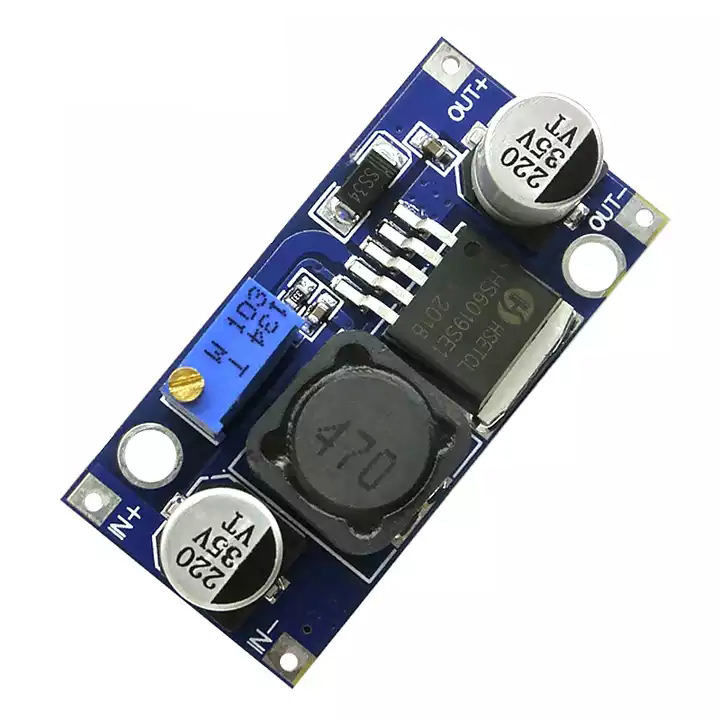

XL6009 Dc Dc Step Up Boost 35V

• Model: XL6009
• Size :43mm * 21mm * 14mm
• Input :3V~32V Output :5V~35V Output current :4A(MAX) Conversion efficiency ::<94% On-off level:400KHz Operating temperature :-40°C~ +85°C Load capacity :士0.5% Voltage regulation: 士0.5%
• Type: Other power modules
• Purpose: LCD TV voltage conversion voltage conversion step-down module
• Type: LCD module
• 32V - 3V input /output highest 35V
• Output voltage range: 4V to 38V dc voltage continuously adjustable,
• high efficiency (96%) of the maximum output current for 4A.
• Advantage: use double thickening black oil PCB with high quality, all use imported SMD aluminum electrolytic capacitors, high Q value power inductors.
• every piece of plate passes through the strict technical test, test completely using separate antistatic protection bag packaging. ​

Note:

• Does this modules relative to the LM2577 triode mode conversion efficiency is higher Does this module is adjustable booster module, can by adjusting the precision of modules above circle more adjustable potentiometer To change the output voltage.

• The highest output voltage is 38 v. Chronological booster, reverse-time step-down.

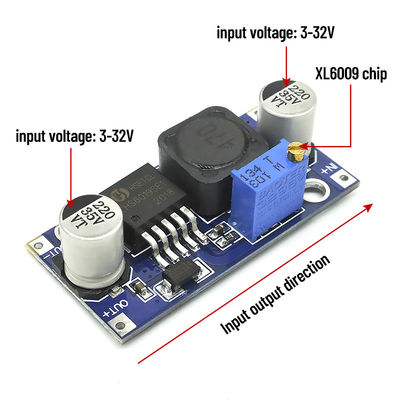

• Does the module above marked GND (input), the IN + (input), GND (output), the OUT + (output)

• Does working temperature: : industrial grade 40 to + 85 (-) (ambient temperature more than 40 degrees, please reduce power use, or enhance heat dissipation)
