CA-901 Switching Power Supply Board DC sampling 46 Inch 12V 24V

CA-901 LCD TV switching power supply module DC sampling 46 Inch 12V 24V

Product Description:

• high-performance,
• low power consumption,
• small size,
• wide voltage range,
• easy to install,
• suitable for flyback output voltage of 12V 24V LCD TV power
• is used in 46-inch LCD TV, LCD power failure or high-power switching power supply quick replacement

Features:

• Type: LCD products, non-isolated power supply
• Output: 300V
• Output: 12V/24V

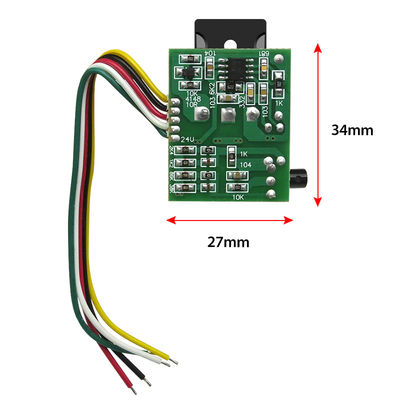

• Product size:34mm*27mm*17mm
• Universal size: universal LCD, monitor below 46 inches
• Product use: high performance, low power consumption,small size. Wide voltage regulation range

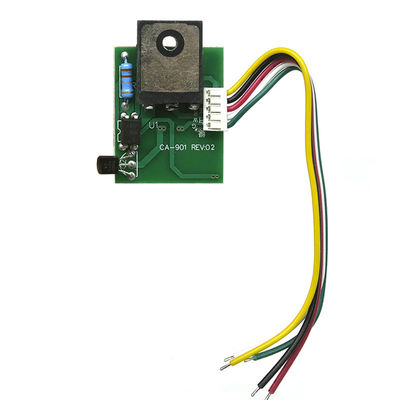

CA-901 REV: 01 module main features:

• DC sampling and TL431 regulator feedback, a good regulator performance.

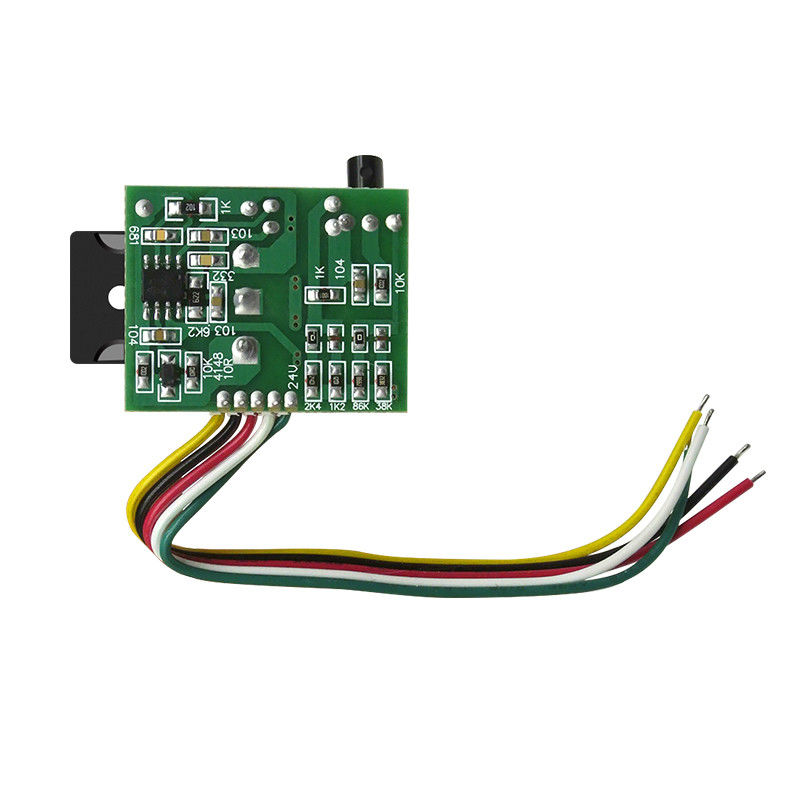

• This module uses 12V 24V selective output, only need to connect the corresponding pad, you can output 12V or 24V

• Rationalized design, easy installation(figure1), simply according to the diagram, according to the required output power to connect the corresponding pad on it (power supply module factory 24V

Two installation instructions:

• Remove the original power switch or thick module, the module firmly fixed in theoriginal heat sink.

• Check the anti-peak absorption circuit is normal, the transformer secondary load isshort-circuit.

• The module connected to the red line of the original power switch C pole weldingpoint (FET D pole, the original model for the power of the C pole) the black line connected to the geothermal field (large power supply filter capacitornegative).

• The yellow line is connected to the negative pole of the secondary, rectifier diode ofthe transformer (12V or 24V) The positive pole of the filter capacitor (main powersupply

• white line connected to the transformer secondary main power supply 12V or 24V(filter capacitor negative (cold side):

• green lineconnected to the original module C power supply side (9V-18V), and theoriqinal machine IC power supply and circuit disconnect.

• According to the output voltage to select the appropriate pad, as shown in Figure

• After connecting the line, we suggest: first disconnect (unplug the main power plug.load, connected to false load (10 ohms 20 watts resistance), measure voltage, checkcorrect before power test machine.
