DC 300W 20A Constant Step Down Converter Voltage Buck Current Source Power Supply Module

• With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current.
• The efficiency can be up to 96%, measured at 20A, converting 24V to 12V.
• It is designed with 75V/80A large current dual MOS tube.
• Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output.
• Wiring is convenient with these large current 30A screw terminals.

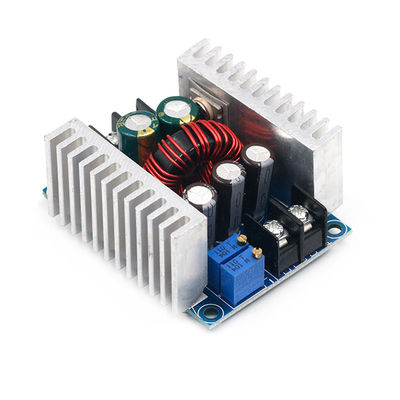

• The buck module has 2 heat sink that could enhance heat dissipation.
• When there is a big difference between input and output voltage, please decrease power and current.

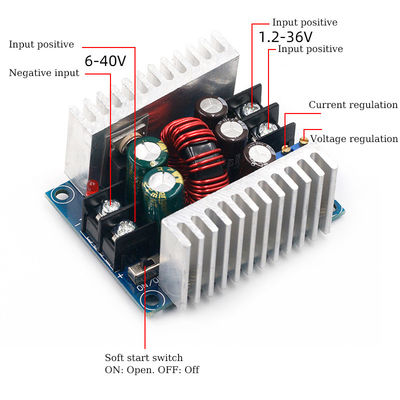

• VO+: Output positive
• VO-: Output negative
• +IN: Input positive
• -IN: Input negative
• CV: Output voltage adjustment
• CC: Output current adjustment
• EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
• When input and output is common grounded, no-load CV output constant voltage,CC output constant current.

Features:

• Input Voltage:6V to 40V DC(10V to 40V is suggested)
• Output Voltage:1.2V to 36V DC
• Output Current:20A(max.), 15A(suggested)
• Efficiency:95%(24V to 12V, 20A)
• Output Ripple:≤50mV
• Wiring Method:Terminal
• Short Circuit Protection:Self-recovery(cannot short circuit for long time)
• Size:60 x 53 x 27mm / 2.36 x 2.08 x 1.06"

• [Support for customization: sample or map can be customized according to the requirements of the moQ 500+, production week is 10 days]
