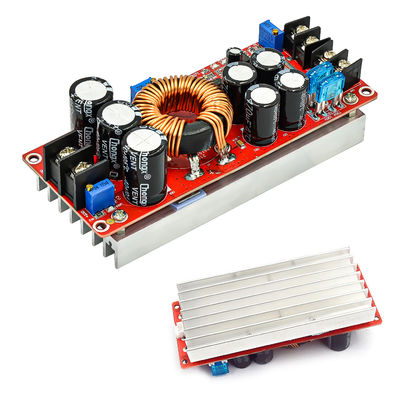

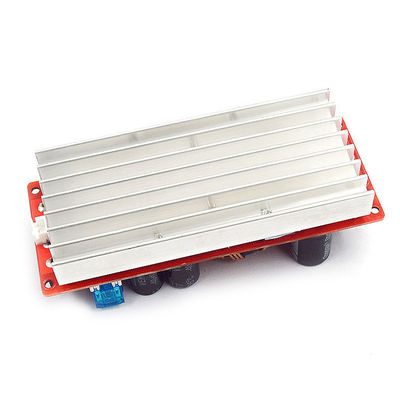

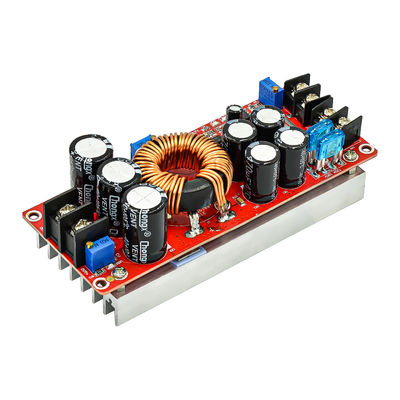

1200W 20A With Heat Sink 12V To 24V 48V DC Converter Boost Step-Up Power Supply Module

1200W 20A  With Heat Sink 12V to 24V 48V DC Converter Boost Step-up Power Supply Module


Product Description:

• Input voltage * 20A, such as: input 12V * 20A = 240W, input 24V * 20A = 480W,
• Enter 36V * 20A = 720W, input 48V * 20A = 960W, input 60V * 20A = 1200W

Input voltage * 20A, such as: input 12V * 20A = 240W, input 24V * 20A = 480W,
Enter 36V * 20A = 720W, input 48V * 20A = 960W, input 60V * 20A = 1200W

NOTES:

• If you need more power, you can use two modules in parallel, such as the output to 30A, two modules can be used in parallel,
• The current per module can be adjusted to 15A.
• Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
• Operating frequency: 150KHz
• Conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure related)
• Overcurrent protection: Yes (with reduced flow adjustment, adjustable output current limit, current exceeds the current limit, the output current is automatically reduced to a minimum 5A, vary according to the nature of the load current will be.)
• Short circuit protection: Yes (input 20A fuse) double short circuit protection, the use of more security.
