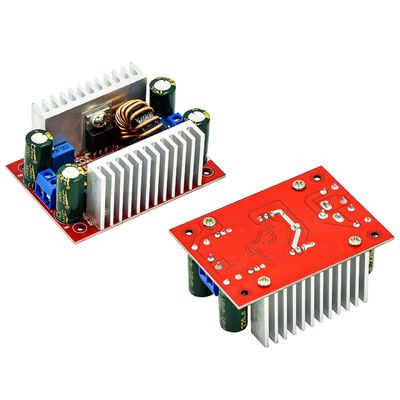

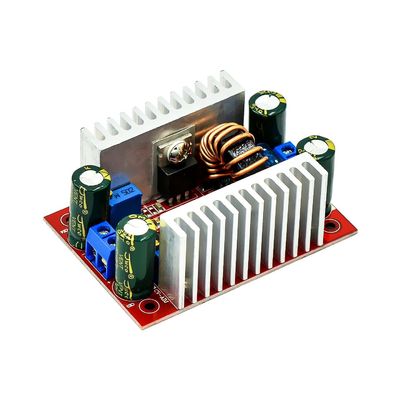

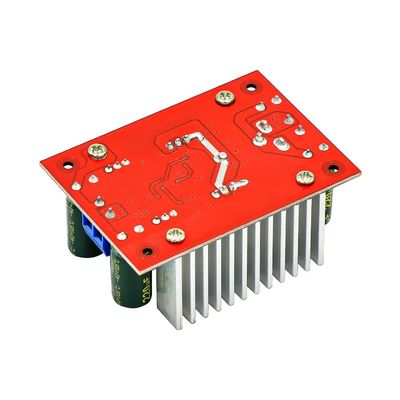

DC 400W 15A Boost Converter Constant Current LED Driver Voltage Charger Power Supply Module

• Module name :400W boost constant current module
• Module properties: non-isolated step-up module (BOOST)
• Input voltage: DC8.5V-50V
• Input current: 15A (MAX) exceeds 8A please enhance heat dissipation
• Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
• Output voltage: 10-60V continuously adjustable
• Constant] range: 0.2-12A
• Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
• Operating frequency: 150KHz
• Conversion efficiency: up to 96%
• Overcurrent protection: yes
• Input reverse polarity protection: no
• Installation: 4 2.55mm screw holes
• Connection method: Connection Output
• Module size: 67mm X48mm X 28mm (LxWxH)
• Single module: 60 g

Applications:

• DIY a power supply, 12V can input and output can 12-50V adjustable.
• the power supply for your electronic device, according to your system can set the output voltage value.
• as the car power supply for your laptop, PDA or a variety of digital products supply.
• DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack, so you can go where light where books.
• solar panel regulator.
• to the battery, rechargeable lithium batteries.
• driving high-power LED lights
