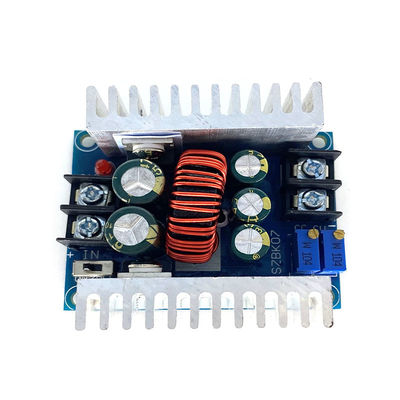

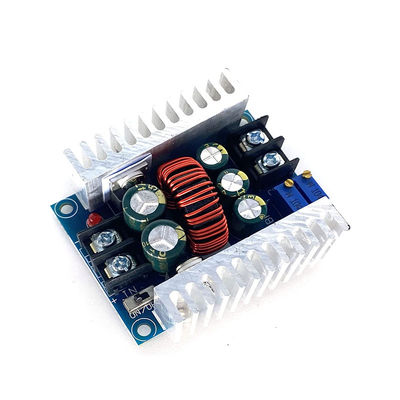

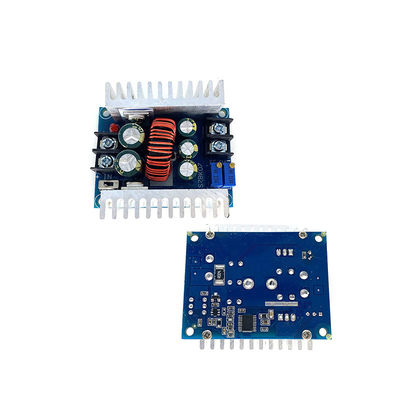

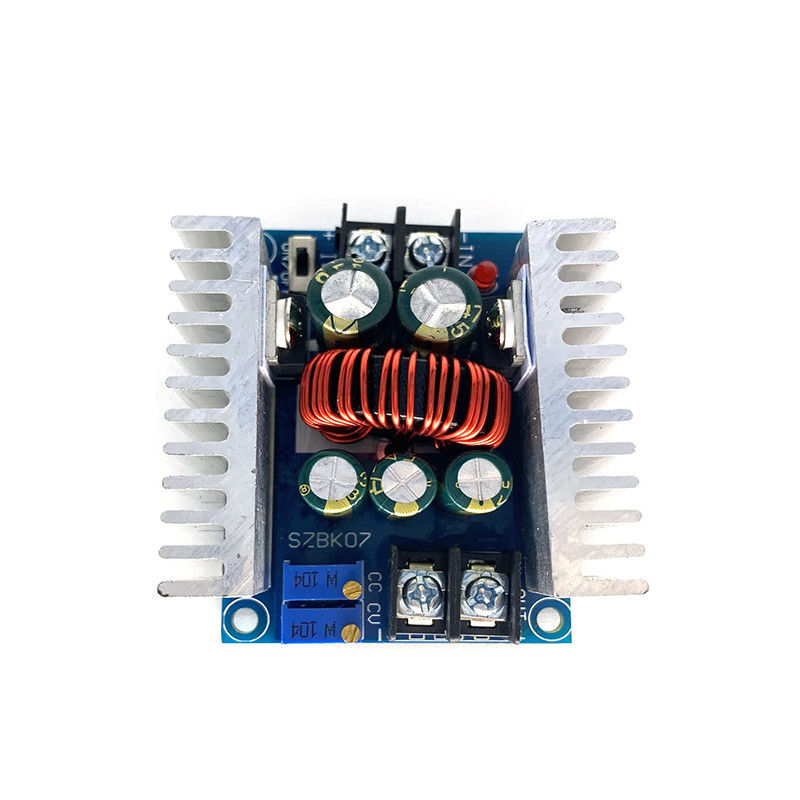

300W 20A DC DC Step Down LED Driver Module Constant Current Synchronous Rectification

Large Image : 300W 20A DC DC Step Down LED Driver Module Constant Current Synchronous Rectification

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Creatall
Model Number:	300W 20A DC Buck Converter Board

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiable
Delivery Time:	5-8 work days
Supply Ability:	1000 Piece/Pieces per Day

Contact Now

300W 20A DC DC Step Down LED Driver Module Constant Current Synchronous Rectification

Description

Type:	Dc Dc Converter	Brand:	Creatall
Input Voltage:	DC 6-40V	Output Voltage:	DC1.2-35V
Output Current:	Maximum 20A	Adjustable Resistance:	100K
Current Limiting Range:	0.2-20A	Minimum Voltage Difference:	3V
Operating Frequency:	150KHZ	Conversion Efficiency:	Up To About 96%
Output Ripple:	50mV	Port:	Shenzhen Port Guangzhou Port
Highlight:	300W LED Driver Module , LED Driver Module Constant Current , Led Driver Board 20A

300W 20A DC-DC Step Down Module Constant Current LED Driver Power Supply Module

Product Description:

This Product Uses Synchronous Rectification Technology, Which Is a New Technology That Uses Special Power With Extremely Low On-State Resistance To Replace Rectifier Diodes To Reduce Rectification Losses. Reduce The Heat Of The Power Supply Itself.

Input Voltage: DC 6-40V
Output Voltage: DC1.2-35V
Output Current: Maximum 20A
Adjustable Resistance: 100K
Current Limiting Range: 0.2-20A
Minimum Voltage Difference: 3V
Operating Frequency: 150KHZ
Conversion Efficiency: Up To About 96%
Output Ripple: 50mV
Operating Temperature: -10~75°C
