Power Supply Module
Created with Pixso. 5-40V 1.2-36V DC Buck Converter Step Down Module Low Ripple Power Supply Module

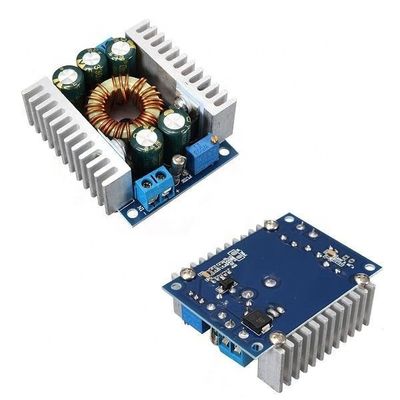

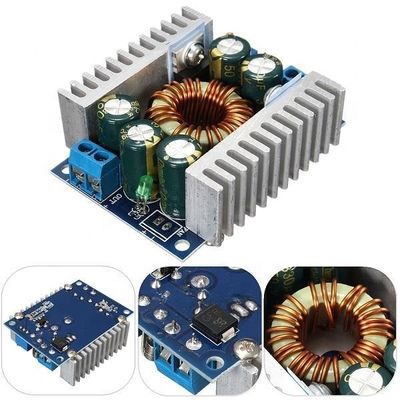

5-40V 1.2-36V DC Buck Converter Step Down Module Low Ripple Power Supply Module
  • name
  • name
  • name

5-40V 1.2-36V DC Buck Converter Step Down Module Low Ripple Power Supply Module

Model Number: Dc Dc Buck Converter
MOQ: 10pcs
Price: negotiable
Delivery Time: 5-8 work days
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
Guangdong, China
Type:
Dc Dc Converter
Brand:
Creatall
Warranty:
1year
Size:
50mm X 50mm X 18mm
Port:
Shenzhen Port Guanghzhou Port
Supply Ability:
1000 Piece/Pieces per Day
Highlight:

5-40V DC Buck Converter

,

1.2-36V Step Down Module

,

Low Ripple Power Supply Module

Product Description

5-40V 1.2-36V DC Buck Converter Step Down Module Low Ripple  Power Supply Module

Product Description:



  • Input voltage: 5-40V
  • Output voltage: 1.2-36V adjustable, 1.2-36V fixed output
  • Output Current: 12A MAX (rated 8A, peak 12A) 100W enhance heat dissipation of up to 200W,
  • Working temperature: -40 to + 85 degrees
  • Operating frequency: 180KHz
  • Conversion efficiency: up to 95%
  • Short circuit protection: Yes (limit current 12A)
  • Over temperature protection: (automatically shut off the output after over temperature)
  • Input Reverse Polarity Protection: None
  • Installation: Four 3mm screws (not included)
  • Connection: Terminals, solder, V-IN is the input, V-OUT is the output, with wire output module housing.
  • Module size: 50mm x 50mm x 18mm
  • Application: This module can be used in batteries, power transformers, DIY adjustable power supply, 24V car T of the power supply, automotive LED lights with power, industrial Buck equipment, 12V t- 3.3V, 12V - 5V, 24V - 5V , 24V -12V, etc.
