Power Supply Module
Created with Pixso. XL6009 20W 1.2-35V DC-DC Step Up Down Converter Power Supply Module

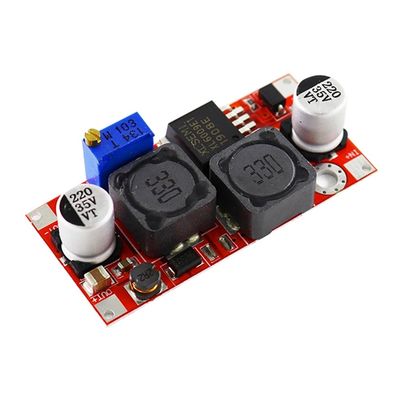

XL6009 20W 1.2-35V DC-DC Step Up Down Converter Power Supply Module

Brand Name: DC-DC Power Module
Model Number: Xl6009
MOQ: 10pcs
Price: negotiable
Delivery Time: 5-8 work days
Detail Information
Place of Origin:
Guangdong, China
Type:
Dc Dc Converter
Brand:
Creatall
Package / Case:
21+
Application:
Experience
Voltage:
As The Picture Show
Warranty:
1 Year
Shipping By:
DHL\UPS\Fedex\EMS\China Post\HongKong Post
PAYMENT:
Paypal\TT\Western Union\Trade Assurance
Condition:
100% Original
Weight:
43G
Port:
Shenzhen Port Guangzhou Port
Supply Ability:
1000 Piece/Pieces per Day
Highlight:

XL6009 DC-DC converter module

,

20W step up down power module

,

1.2-35V adjustable power supply

Product Description

XL6009 20W 1.2-35V DC-DC Step Up Down Converter  Power Supply Module

Product Description:

  • Auto start voltage will be pulled down to 7V less or smaller engine at high speed when the voltage up to 15V or higher.
  • Electrical work hard at work, this automatic buck module solves this problem , regardless of the input voltage is 5V or 12V or 32V, the output can be stabilized at 12V.
  • Wide input voltage 5V ~ 32V;Wide Output Voltage 1.25V ~ 35V ( with automatic buck , scope of work, any voltage inputs can be arbitrarily regulated voltage output );Built- 4A efficient MOSFET switches enable efficiency up to 94%;(LM2577 current is 3A)high
  • Switching frequency of 400KHz, the ripple is smaller and smaller



Application:
    Car regulator , solar photovoltaic, wind power and other applications of voltage instability

Technical parameters:

  • Model Specification:DSN6000AUD Automatic Buck module

  • Module Properties:Non- isolated boost (BOOST)

  • Rectification:Non- Synchronous Rectification

  • Input Range:3.8V ~ 32V

  • Output Range:1.25V ~ 35V

  • Input Current:3A ( max ) , no-load 18mA (5V input , 8V output , no-load is less than 18mA. Higher the voltage , the greater the load current )

  • Conversion efficiency:< 94% ( greater the pressure , the lower the efficiency )

  • Switching frequency:400KHz

  • Output Ripple:50mV ( the higher the voltage , the greater the current , the greater the ripple )

  • Load Regulation:± 0.5%

  • Voltage Regulation:± 0.5%

  • Operating Temperature:-40 ° ~ +85 °
