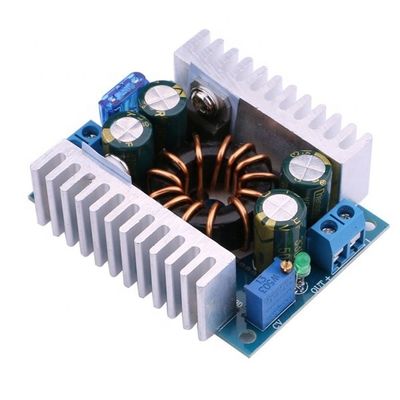

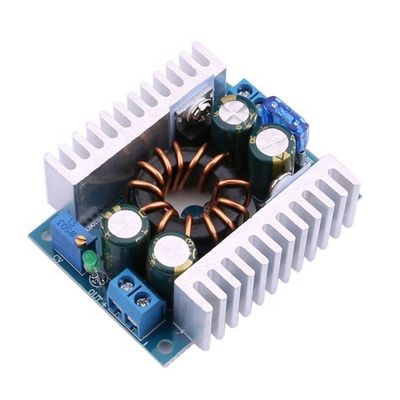

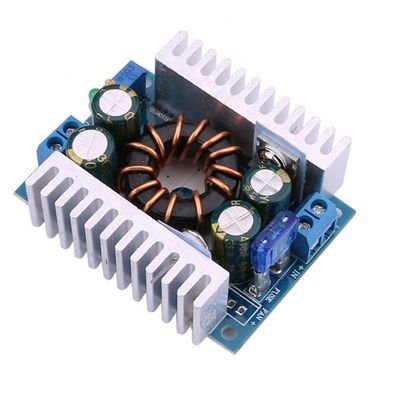

150w Step Up Converter 8-32V 9-46v High Power Dc 12v 15V 19v 24v 36v Power Supply Module

150w Step Up Converter 8-32V 9-46v High Power dc 12v 15V 19v 24v 36v Power Supply Module

Product Description:

• ultra small volume, super dense aluminum radiator, lower module temperature, more stable.

• Input two 470uF/35V, output two 330uF/50V, 60V output for 220uF/63V switching power supply dedicated high-frequency low resistance capacitor, so that output ripple is lower, onboard LED work indicator light, work more intuitive.

• Full use of materials plus design Single tePCB hollow design,

• due to temperature changes to important parts of the parameters caused by instability.

• Onboard 4 M3 screw holes to facilitate your installation

Features:

• Module name: 150W boost module
• Module property: non isolated boost module (BOOST)
• Input voltage: two input voltage range selectable (via the jumper on the back of the PCB)
• the 8-16V input (for three string lithium battery and 12V applications)
• 10-32V input (for wide input voltage range application)
• Input current: 16A (MAX) over 8A, please strengthen the heat dissipation
• Quiescent operating current: 15mA (12V liters 20V), the output voltage is more Gao Jing, so the current will increase
• Output voltage: 9-46V, adjustable continuously
• Output current: 8A, MAX over 4A, please strengthen the heat dissipation (with the input and output pressure difference, the greater the pressure difference, the smaller the output current)
• Output power: natural heat dissipation, 90W, enhanced heat dissipation, 150W
• Operating temperature: -40~+85 degree (ambient temperature is too high, please strengthen the heat dissipation)
• Operating frequency: 150KHz
• Conversion efficiency: 95% higher (efficiency is related to input, output voltage, current, pressure difference)
• Short circuit protection: Yes (enter 15A fuse)
• Input reverse connection protection: No, (please enter the diode in the input string)
• Installation: 4 3mm screws
• Connection mode: the terminal is free of welding output, and the shell is welded. (V-IN for input, V-OUT for output)
• Module size: long 60mm, width 50mm, high 20mm
