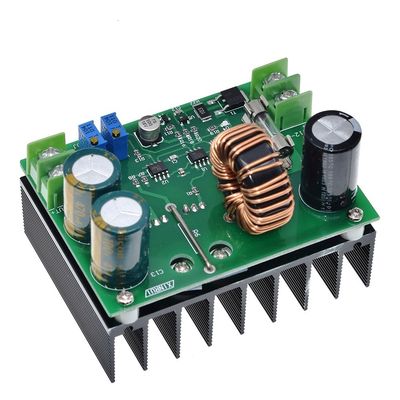

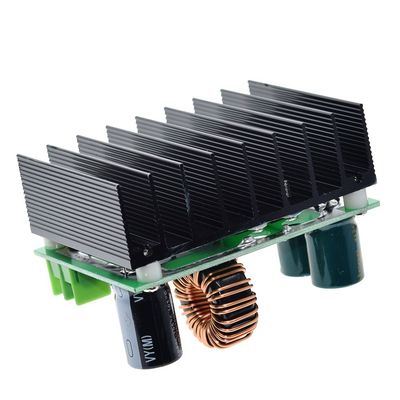

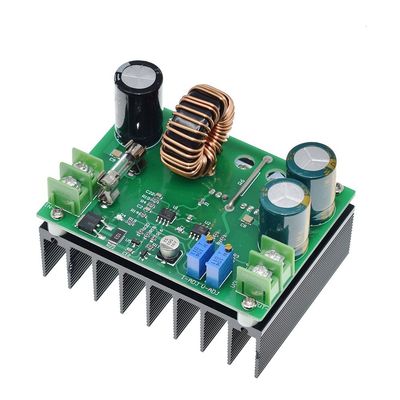

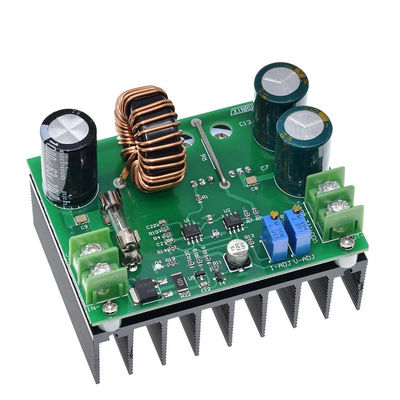

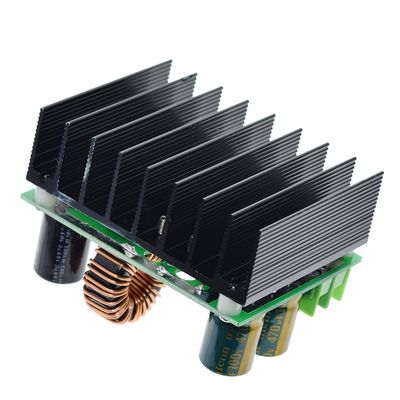

600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board

600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board

Large Image :  600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall
Model Number: CA-600W
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Delivery Time: 5-8 work days
Supply Ability: 100000 Piece/Pieces per Day
Contact Now

600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board

Description
Features: DC-DC Application: DC Converter
Type: Step-up Mounting Type: Direct Mounting
Description: Step-up Power Supply Module Product Name: Constant Current Board
Module Properties: Step-up / Boost DC-DC Converter Input Voltage: DC 10 ~ 60 V
Output Voltage: DC 12 ~ 80 V Output Current: 10A Max
Input Current: 15 A Max The Minimum Voltage Difference: 2V
Output Power: Input 12V Max 120W, In 24V Max 240W, In 60V Max 600W Efficiency: 95% Max
Colour: Green Port: Shenzhen Port
Highlight:

600W DC-DC power supply Module

Product Description
Specification

600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board

Specification:
Module Properties: Step-up / Boost DC-DC Converter
Input Voltage:DC 10 ~ 60 V
Output Voltage:DC 12 ~ 80 V ( adjustable, O/p Voltage more than the I/p Voltage by 2V )
Output Current:10A Max
Input Current: 15 A Max( Under normal circumstances please 12A Current )
The minimum voltage difference:2V
Output Power: input 12V Max 120W, in 24V Max 240W, in 60V Max 600W ( P=U x I )
Efficiency:95% Max( eg input :30V output: 40V 5A n: 93%)
Output Short-circuit Protection:yes
Input Reverse Protection: None

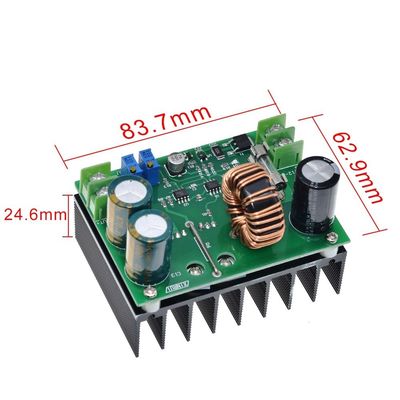

Size:85 x63 x64mm (L x W x H )
Weight:251g
Material:CCL
Colour:Green
Product Description
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 0
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 1
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 2
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 3
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 4
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 5
Company Profile
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 6
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 7
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 8
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 9
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 10
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 11
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 12
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board 13
FAQ
Q1. What is your terms of packing?
A: Generally, our modules are all with Anti-static bag individually wrapped,also can be accepted customized package.
Q2. What is your terms of payment?
A: Full payment. Goods would be shipped in 1-3work days after payment received, finally depends on quantities.
Q3. What is your terms of delivery?
A: Generally EXW,can be according to customer’s requests.
Q4. How about your delivery time?
A: Generally, goods would be shipped in 1-3 work days after payment received, finally depends on order quantities.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
