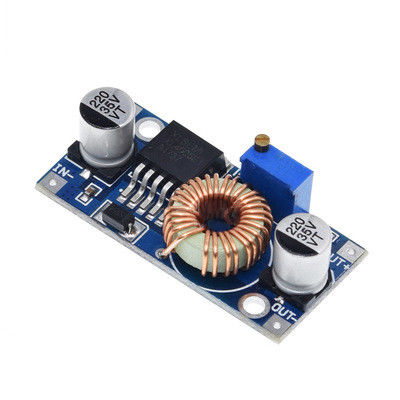

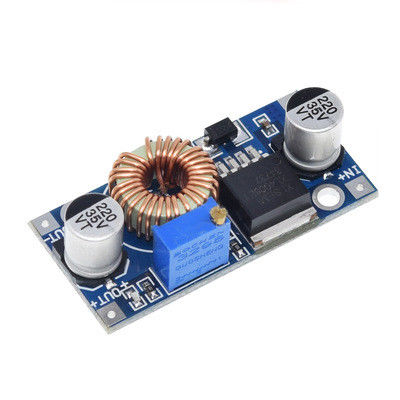

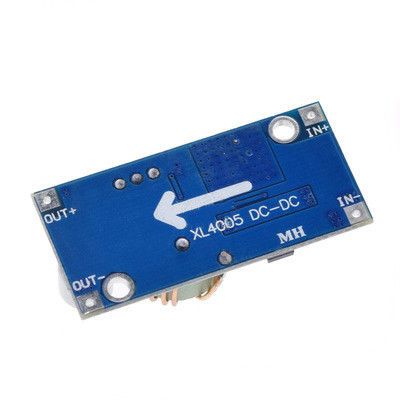

XL4005 DSN5000 Beyond LM2596 DC-DC adjustable step-down 5A 75W power Supply module Large current Large power

XL4005 DSN5000 Beyond LM2596 DC-DC adjustable step-down 5A 75W power Supply module Large current Large power
XL4005 DSN5000 Beyond LM2596 DC-DC adjustable step-down 5A 75W power Supply module Large current Large power XL4005 DSN5000 Beyond LM2596 DC-DC adjustable step-down 5A 75W power Supply module Large current Large power XL4005 DSN5000 Beyond LM2596 DC-DC adjustable step-down 5A 75W power Supply module Large current Large power

Large Image :  XL4005 DSN5000 Beyond LM2596 DC-DC adjustable step-down 5A 75W power Supply module Large current Large power

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall, CREATALL
Model Number: XL4005, XL4005
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Delivery Time: 5-8 work days
Supply Ability: 100000 Piece/Pieces per Day
Contact Now

XL4005 DSN5000 Beyond LM2596 DC-DC adjustable step-down 5A 75W power Supply module Large current Large power

Description
Features: Converter Application: DC-DC, Other
Type: Step-down, Other Mounting Type: Direct Mounting
Description: XL4005 Step-down 5A Power Supply Module Origin: CN(Origin)
Condition: New Operating Temperature: International Standard
Supply Voltage: International Standard Dissipation Power: International Standard
Package: Other Port: Shenzhen Port
Highlight:

DC-DC Power Supply Module

,

5A Power Supply Module

,

75W Power Supply Module

Application areas:
DIY mobile power supply, vehicle power supply, power supply for communication equipment, etc

technical parameter:
Model Name:DC-DC 5A high current step-down power supply module

Module nature:Non-isolated buck

Rectification method:Asynchronous rectification

Input voltage:5V-32V

The output voltage:0.8V-24V

Output current:Peak value 5A (work above 3.5A should strengthen heat dissipation)

Conversion efficiency:Up to 90%

operating frequency:300KHz

Output ripple:30mV (when no load)

Load Regulation:±0.5%

Voltage regulation rate:±2.5%

Operating temperature:-40℃ to +85℃

Peripheral size:42*21*14 (length * width * height) (mm)

Features: Using high-power magnetic surround inductor and high-current control chip, small size, high power and high efficiency.
XL4005 DSN5000 Beyond LM2596 DC-DC adjustable step-down 5A 75W power Supply module Large current Large power 0XL4005 DSN5000 Beyond LM2596 DC-DC adjustable step-down 5A 75W power Supply module Large current Large power 1XL4005 DSN5000 Beyond LM2596 DC-DC adjustable step-down 5A 75W power Supply module Large current Large power 2
