CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module

CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module

Large Image :  CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module

Product Details:
Place of Origin: Guangdong, China
Model Number: XL4015E
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Delivery Time: 5-8 work days
Supply Ability: 1000 Piece/Pieces per Day
Contact Now

CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module

Description
Type: Dc Dc Converter Brand: Creatall
Port: Shenzhen Port,guangzhou Port
Highlight:

5A DC-DC step down board

,

38V DC-DC step down board

Products Description

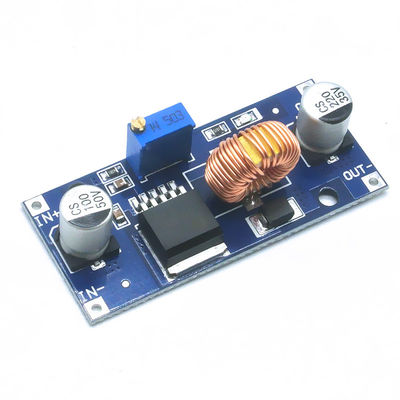

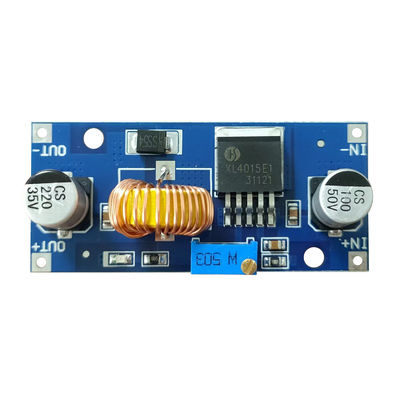

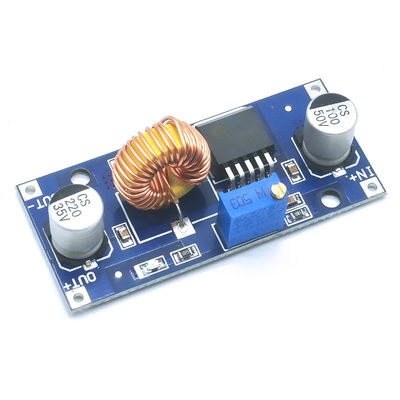

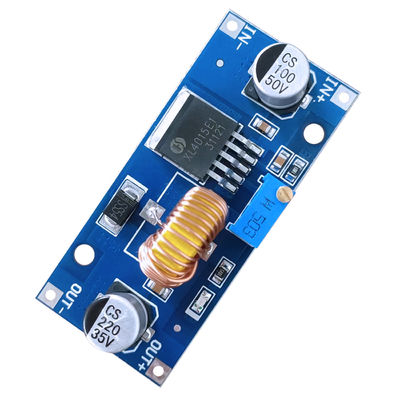

XL4015E 5A 4 to 38V High power efficiency DC-DC adjustable step-down module

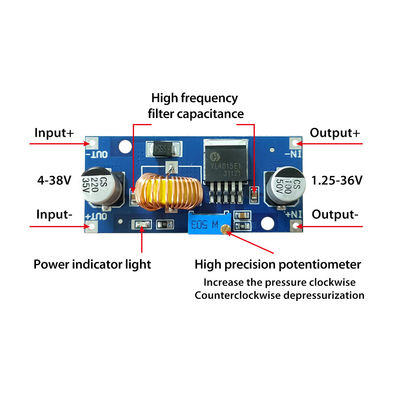

This module is different from the LM2596 and XL4005 step-down modules on the market, whose chip design power is 15W and 50W respectively. This step-down module in our shop uses the original authentic upgraded chip, which is superior to similar products in input and output voltage range, output power and efficiency. The power can reach 75W, with a very high cost performance. Module highlights: 5A high power high efficiency low ripple strip power indicator light free heat sink!!! Module performance and characteristics: Module nature: Non-isolated step-down module (BUCK) Input voltage: 4-38V (Input please try not to exceed 38V) Output voltage: 1.25-36V continuously adjustable Output current: 0-5A, recommended for use within 4.5A Output power: Recommended for use within 75W. Operating temperature: -40~+85 degrees Operating frequency: 180KHz Conversion efficiency: up to 96% (efficiency is related to input, output voltage, current and differential pressure) Load adjustment rate: S (I) ≤0.8% Voltage adjustment rate: S (u) ≤0.8% Power indicator: Yes Short circuit protection: have (limited current 8A) Overtemperature protection: there is (automatically shut off output after overtemperature) Input backconnection protection: none (if necessary, please insert high current diode in the input string) Installation: 2 3mm screws Connection mode: Welding, with V-IN as input and V-OUT as output Module size: 54mm long, 23mm wide, 18mm high Weight: 16g Scope of application: This module can be used in the input voltage is higher than the output voltage of the step-down field, such as battery, power transformer, DIY adjustable voltage regulator power supply, 24V vehicle pen meter this power supply, industrial equipment step-down, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, 36V to 24V, etc. Please pay attention to: Some customers reflect that the module output voltage can not be adjusted, always equal to the input voltage. When you encounter this problem, please rotate the potentiometer counterclockwise more than 10 laps, and then use the module can adjust the voltage normally. Because when the step-down module leaves the factory, the default output voltage is about 20V.
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 0
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 1
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 2
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 3

12V to 5V 5A output measured efficiency 88% (5.004X4.993) ÷12÷2.4

CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 4

24V to 12V 4A output measured efficiency of 94% (12.09X4.105)÷24÷2.2

CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 5

36V to 24V 3A output measured efficiency 98% (24.068X3.075) ÷36÷2.1

Company Profile
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 6
Certificates & Production Processes
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 7
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 8
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 9
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 10
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 11
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 12
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 13
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 14
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 15
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 16
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 17
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 18
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 19
Contact Us
CA-4015 5A DC-DC step down board 4~38V high power Low ripple far beyond LM2596 XL4015E power supply module 20
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
